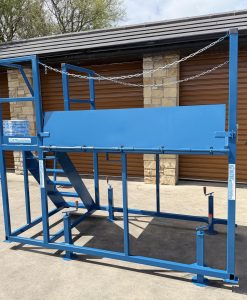

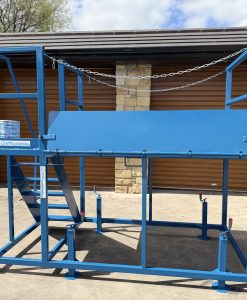

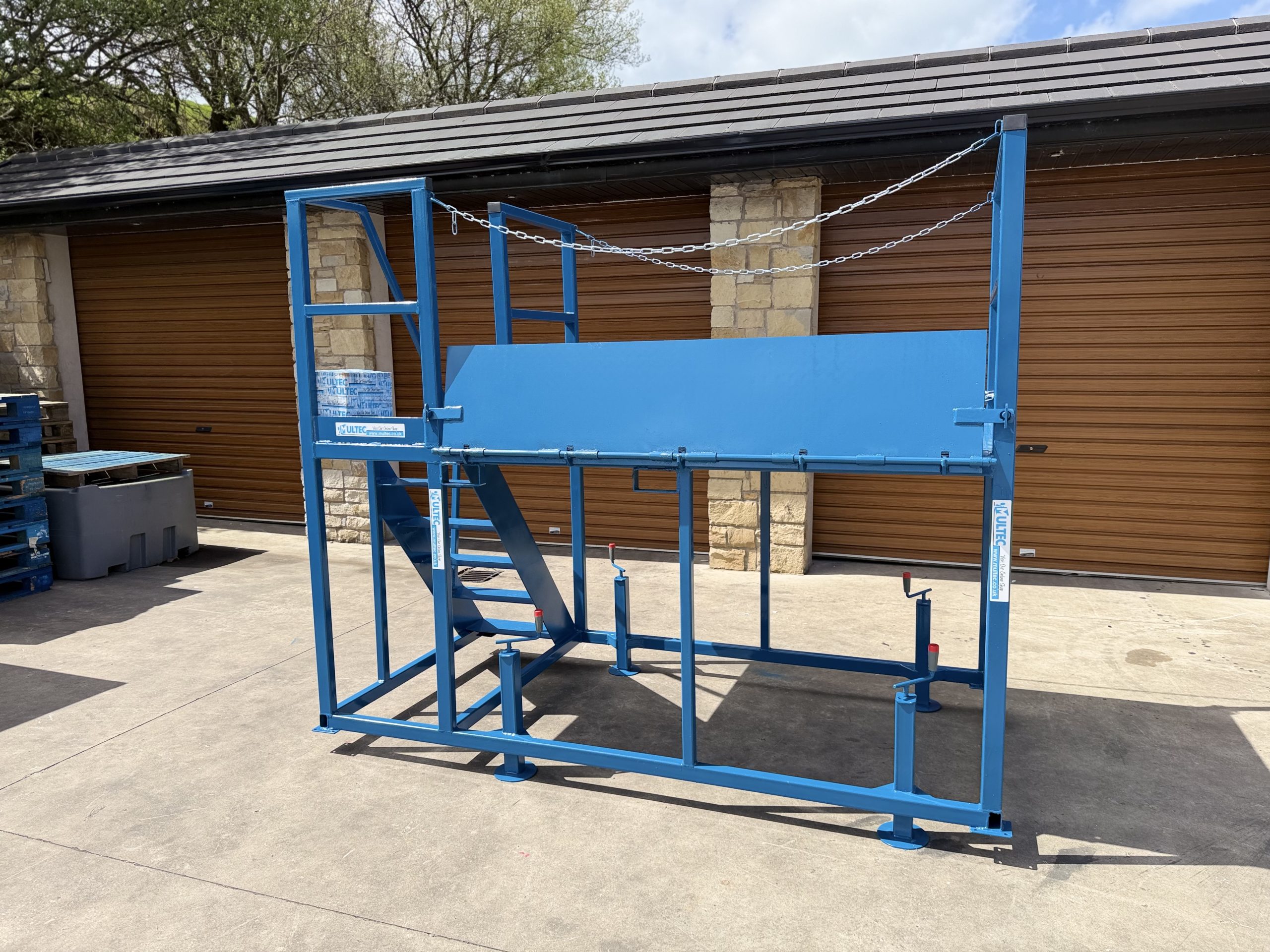

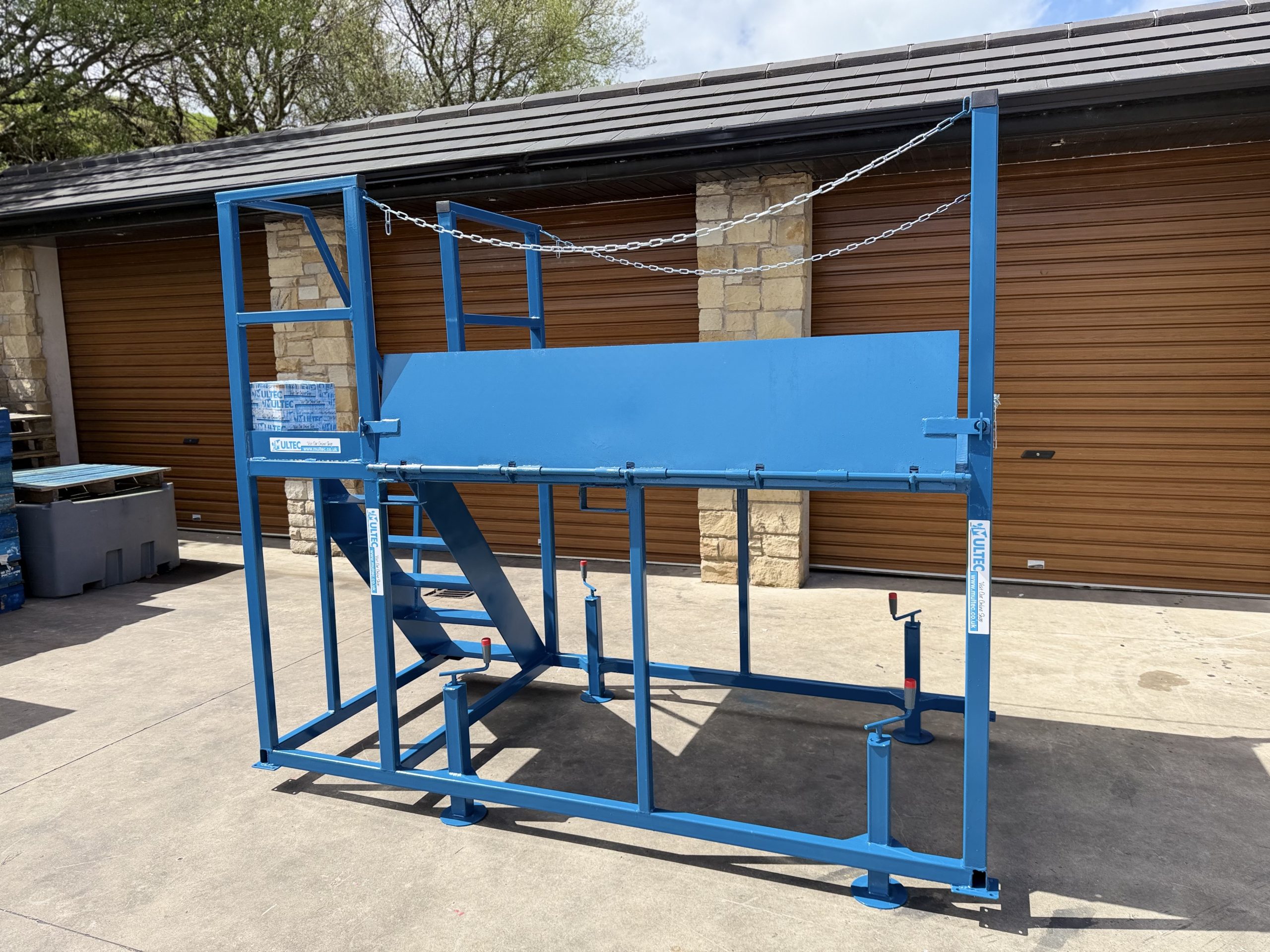

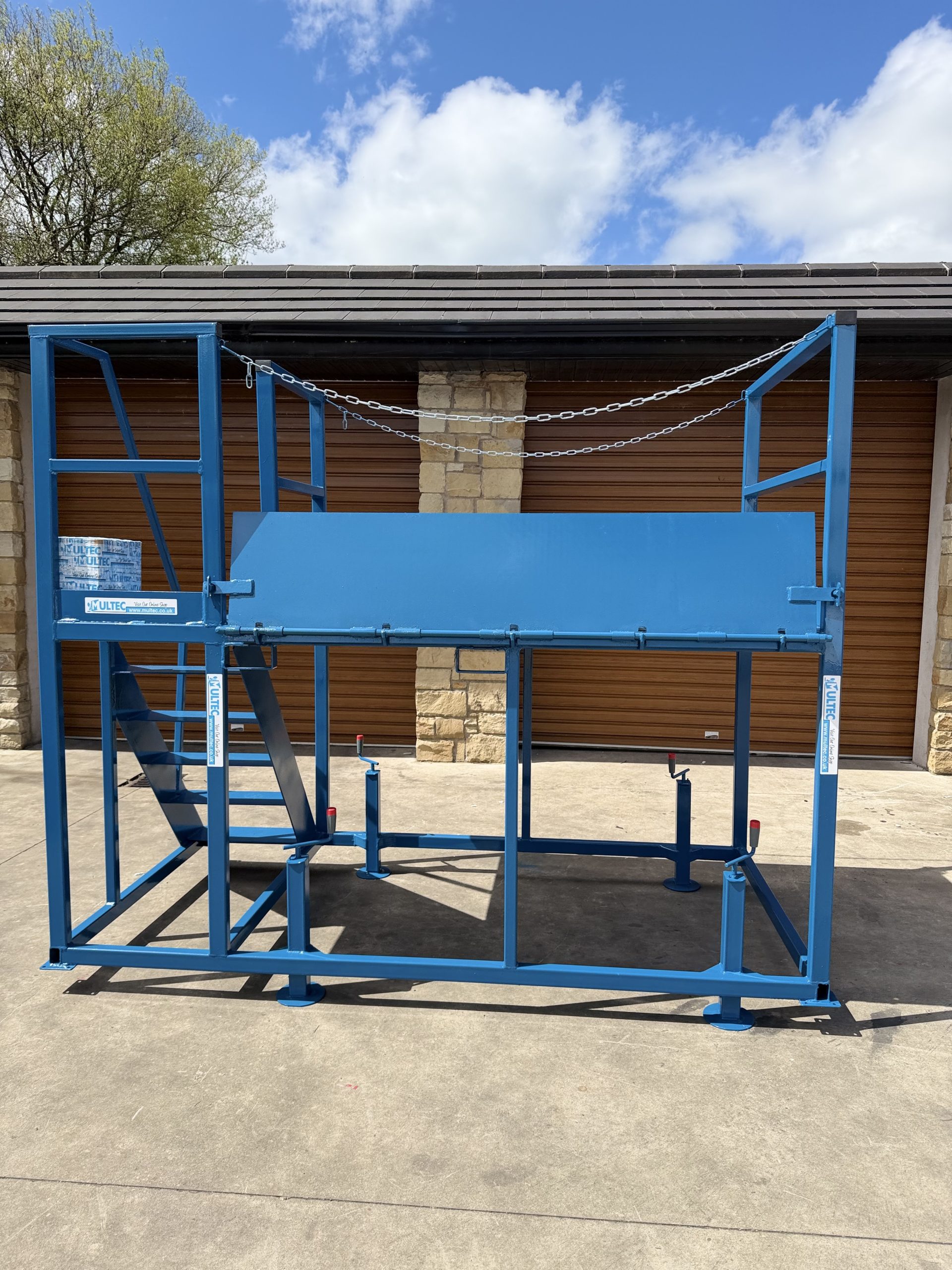

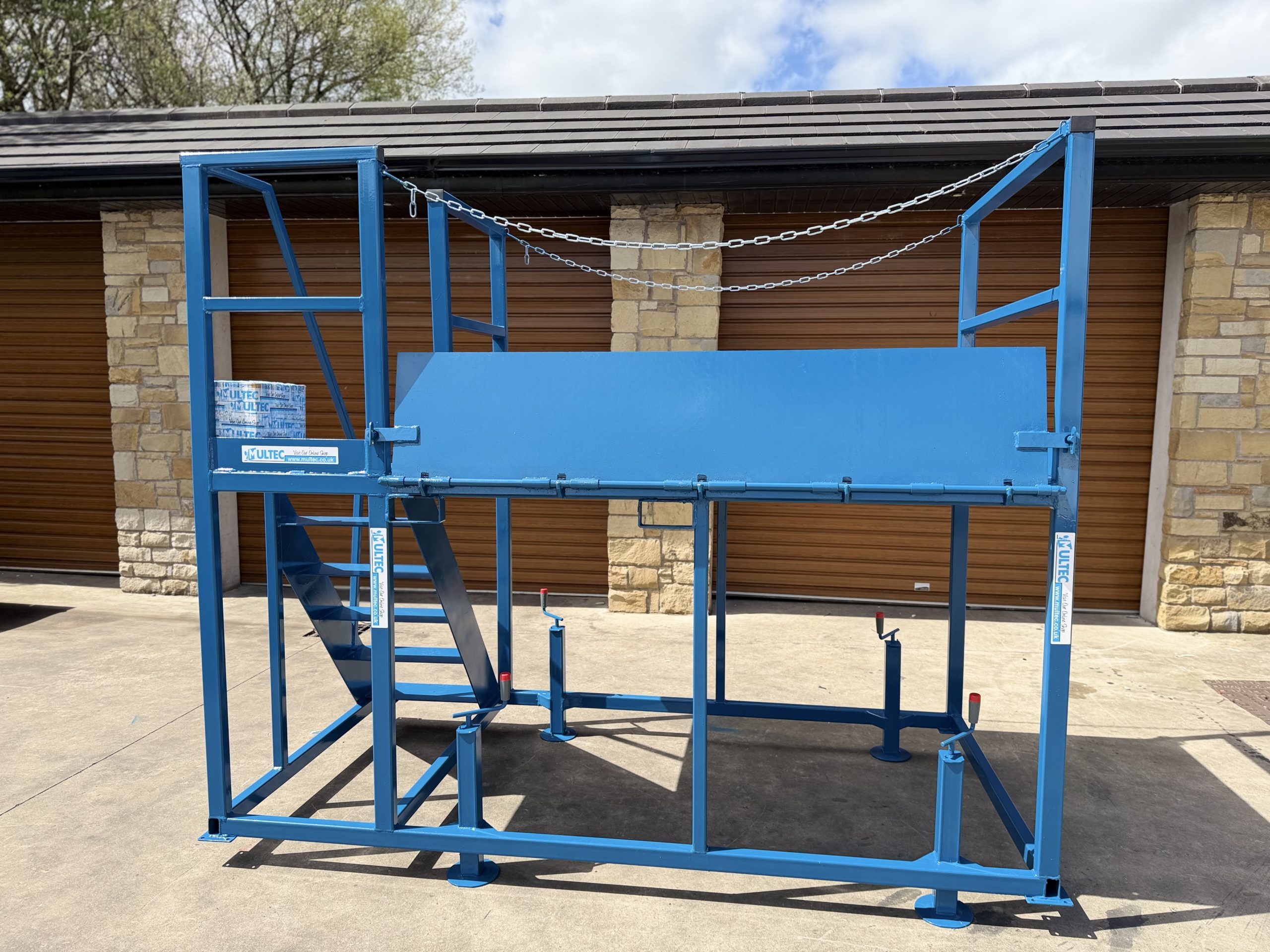

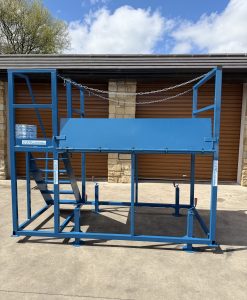

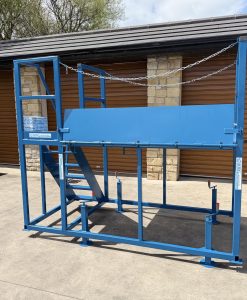

Mobile Access Platforms (Complete with Steps)



Standard Specification:

• Multi-purpose loading platform.
• Manufactured from mild steel.
• Robust & heavily braced.
• Chequered plate floor for more grip & increased strength.
• Standard Platform height is approx. 1300mm / 1.3m off the ground (Proven to be the most popular height)
• Kicker plate to ensure extra safety to prevent pallets etc. moving from within the platform.

• Strong and sturdy base frame.

• Fitted with 2no. x  castor 360 swivel wheels with brakes.
• Fitted with 2no. x  castor rigid wheels (non braked) – Recommended fitment at steps side.

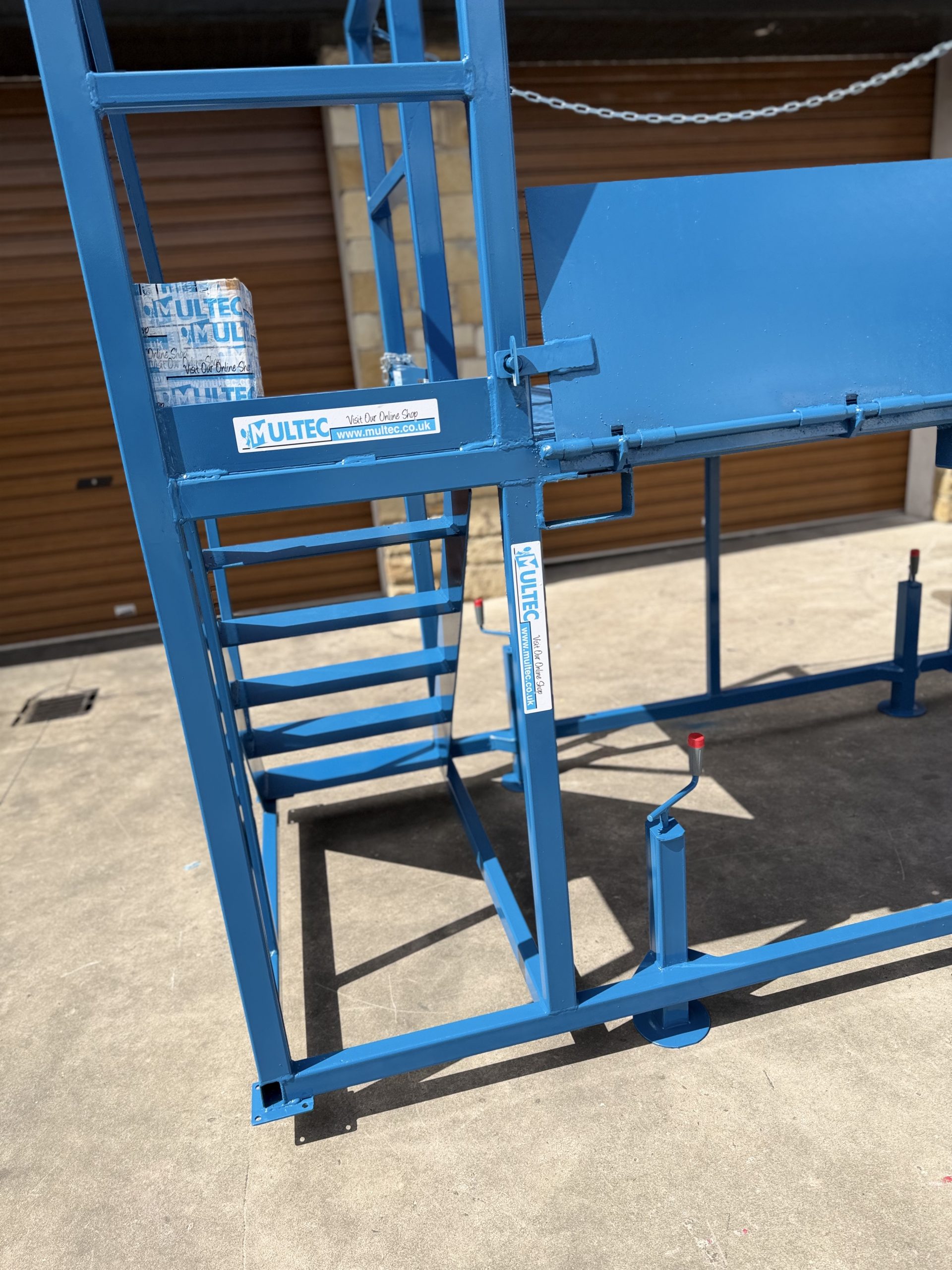

• Steps up the side for access up to and down from the platform.
• Each platform is fitted with SWL & serial number etc.
• We also provide a Declaration of Conformity & User Manual

Please Note: If you have a colour preference, please let us know in the “Order Notes” box at check-out.



Optional Extras:

• Keep it Standard (As described above)

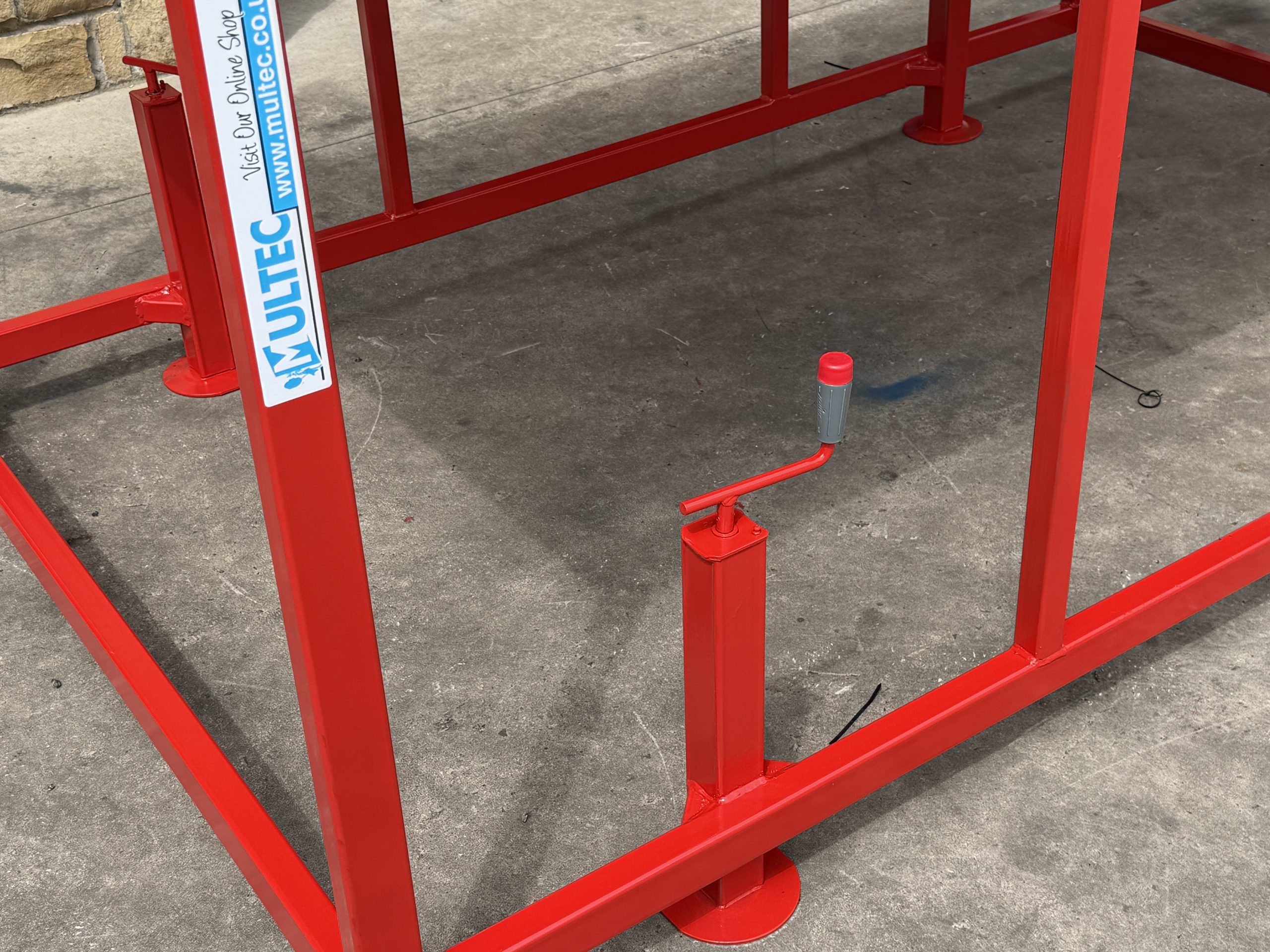

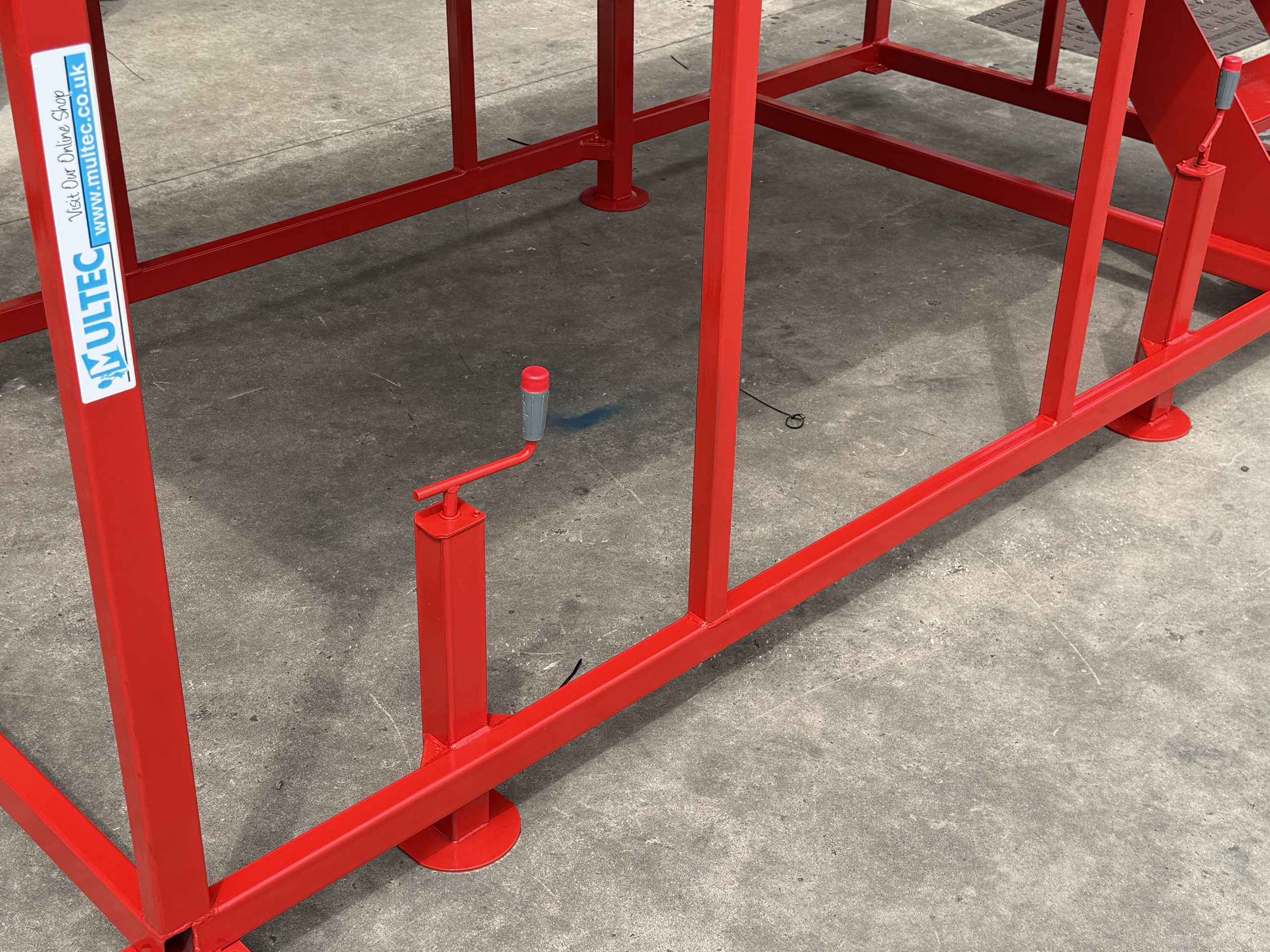

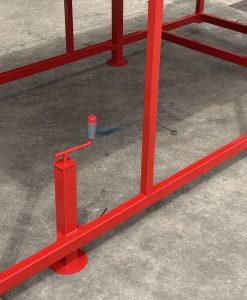

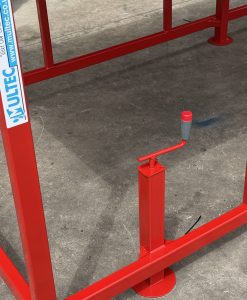

• Add Jack Legs (Adjustable Jack Legs to increase height) NEW IMPROVED JACK LEGS Closed Height – 630mm, screw stroke – 255mm (10″) SWL – 600KG per leg
• Add Docking Ramp (High Level Dock Ramp to assist pallet trucks off & on the platform when unloading)
• Add Hook Up Chains (Hook Up Chains fitted to the Platform on the Container / Lorry side to prevent the platform moving away)



Choose from the following 3no. sizes

MAP-21 (2m x 1m) Specification:

• Length: 2.0 metres (200cm / 2000mm)
• Width: 1.0 metre (100cm / 1000mm)
• Platform Height: 1.3 metre (130cm / 1300mm)
• SWL: 500kgs (0.75Ton / 750kg)
• Unladen Weight: Approx. – 295kg



MAP-84 (8ft x 4ft) Specification:

• Length: 8Ft (2.4 metres / 240cm / 2400mm)
• Width: 4Ft (1.2 metre / 120cm / 1200mm)
• Platform Height: 1.3 metre (130cm / 1300mm)
• SWL: 1000kgs (1.0Ton)
• Unladen Weight: Approx. – 395kg



MAP-105 (10ft x 5ft) Specification:

• Length: 10Ft (3.0 metres / 300cm / 3000mm)
• Width: 5Ft (1.5 metre / 150cm / 1500mm)
• Platform Height: 1.3 metre (130cm / 1300mm)
• SWL: 1500kgs (1.5Ton)
• Unladen Weight: Approx. – 495kg





Order & Delivery information (Please Read):

After placing your order & making payment, you will receive a direct email within 48 hours with your “Order Dates” which will be as follows:

• Payment Date (Date of cleared funds).
• Dispatch Date (15 to 21 workings days from cleared funds).
• Arrival Date (2-3 working days from dispatch).

If the arrival date does not suit, please contact us as soon as possible so we can re-arrange arrival on a preferred date.



Please Note: You will need to have access for the delivery lorry, arrange a way of unloading & sign for arrival.

We also provide the courier’s full contact information before dispatch, so you can contact the courier direct if needed.
