Description…

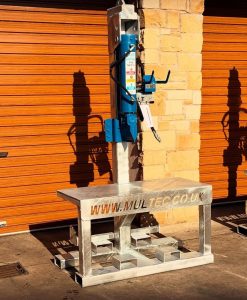

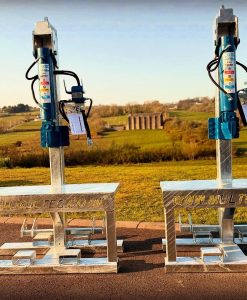

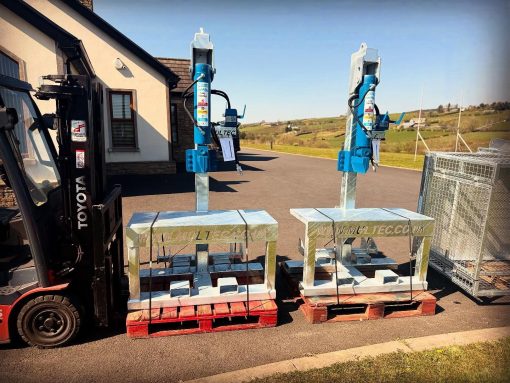

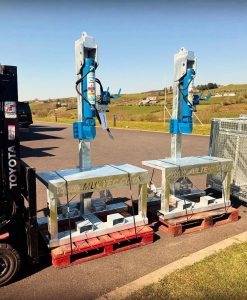

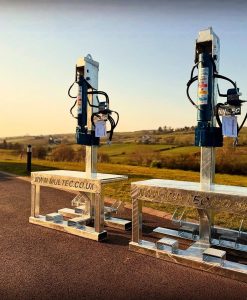

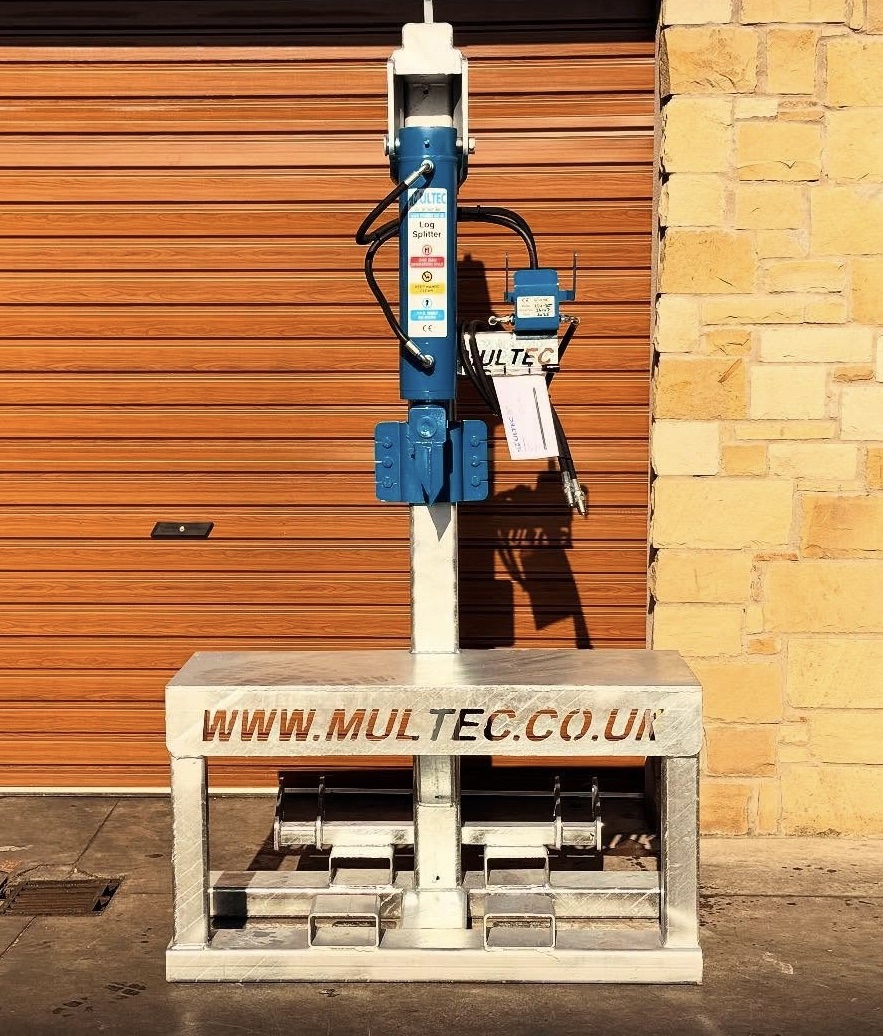

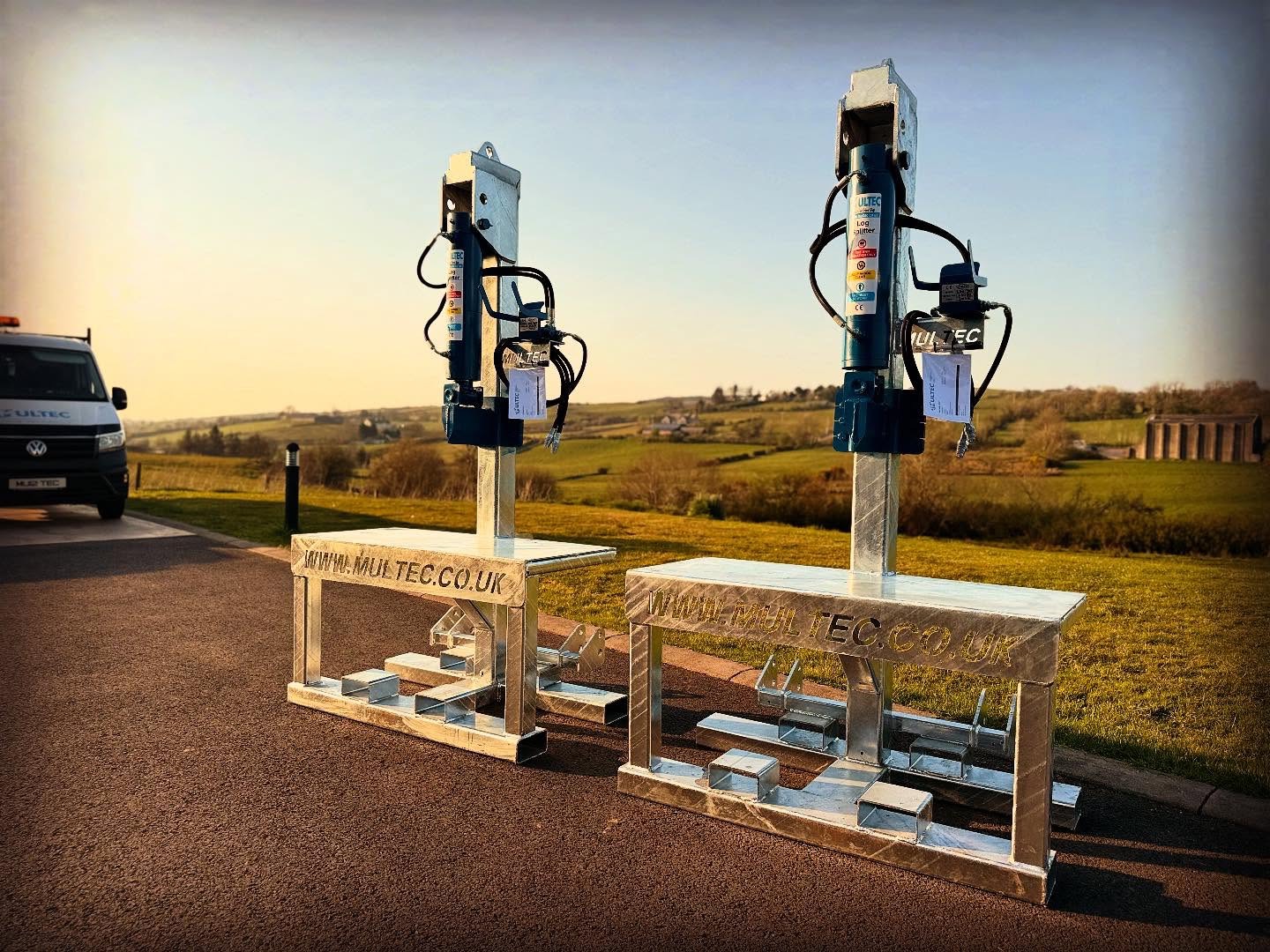

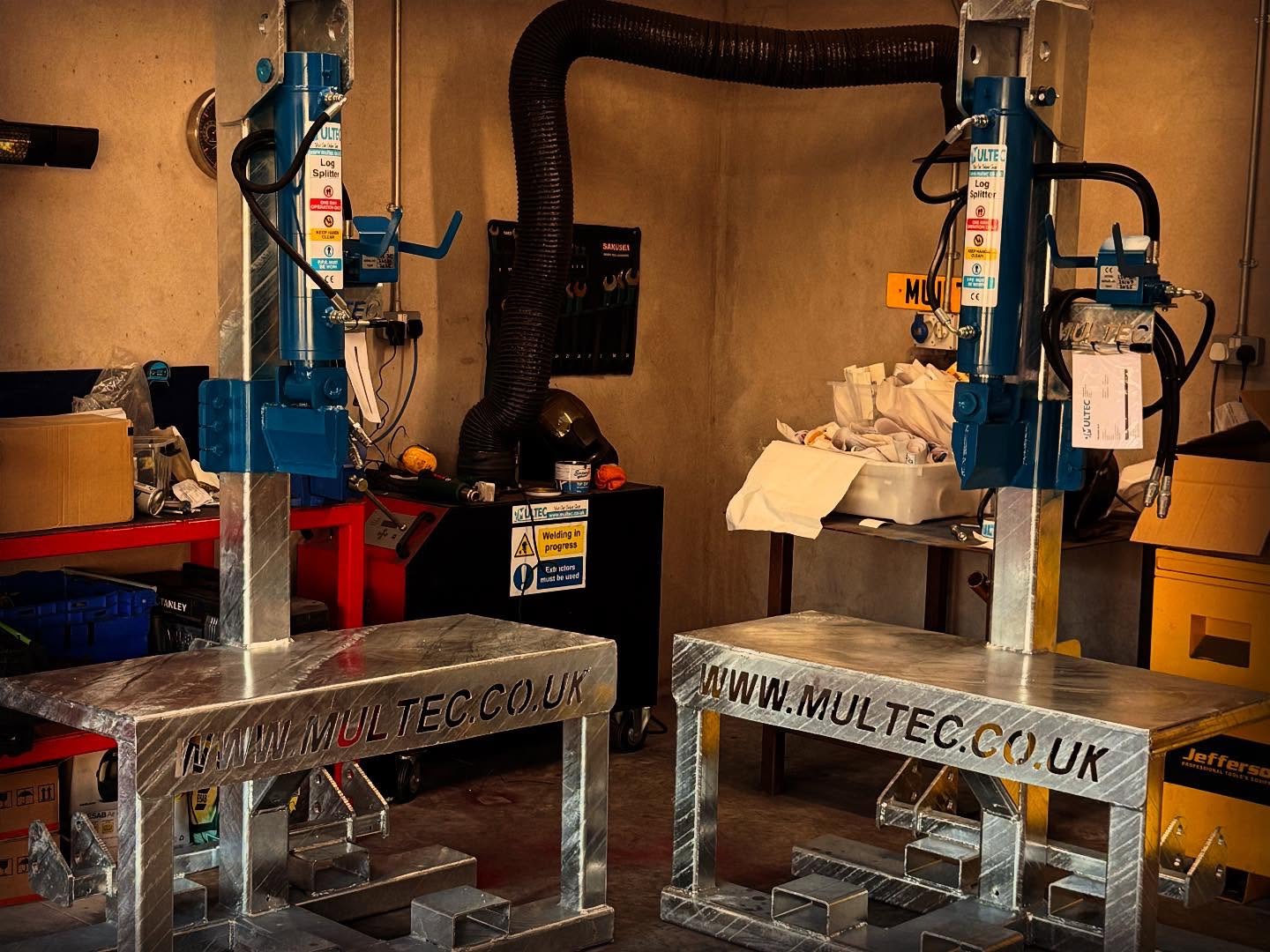

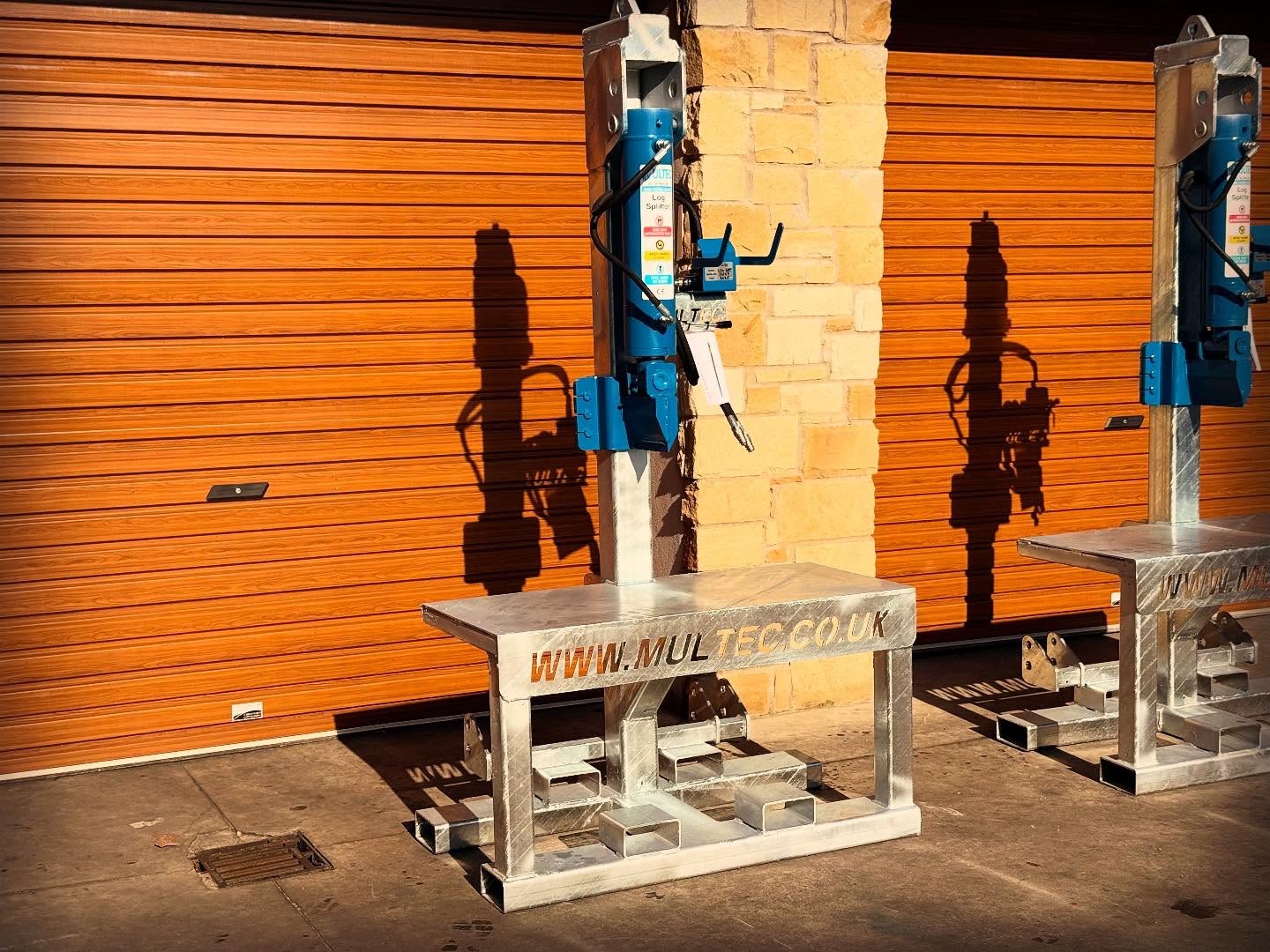

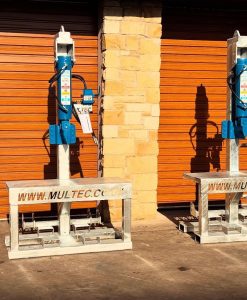

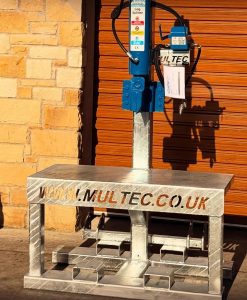

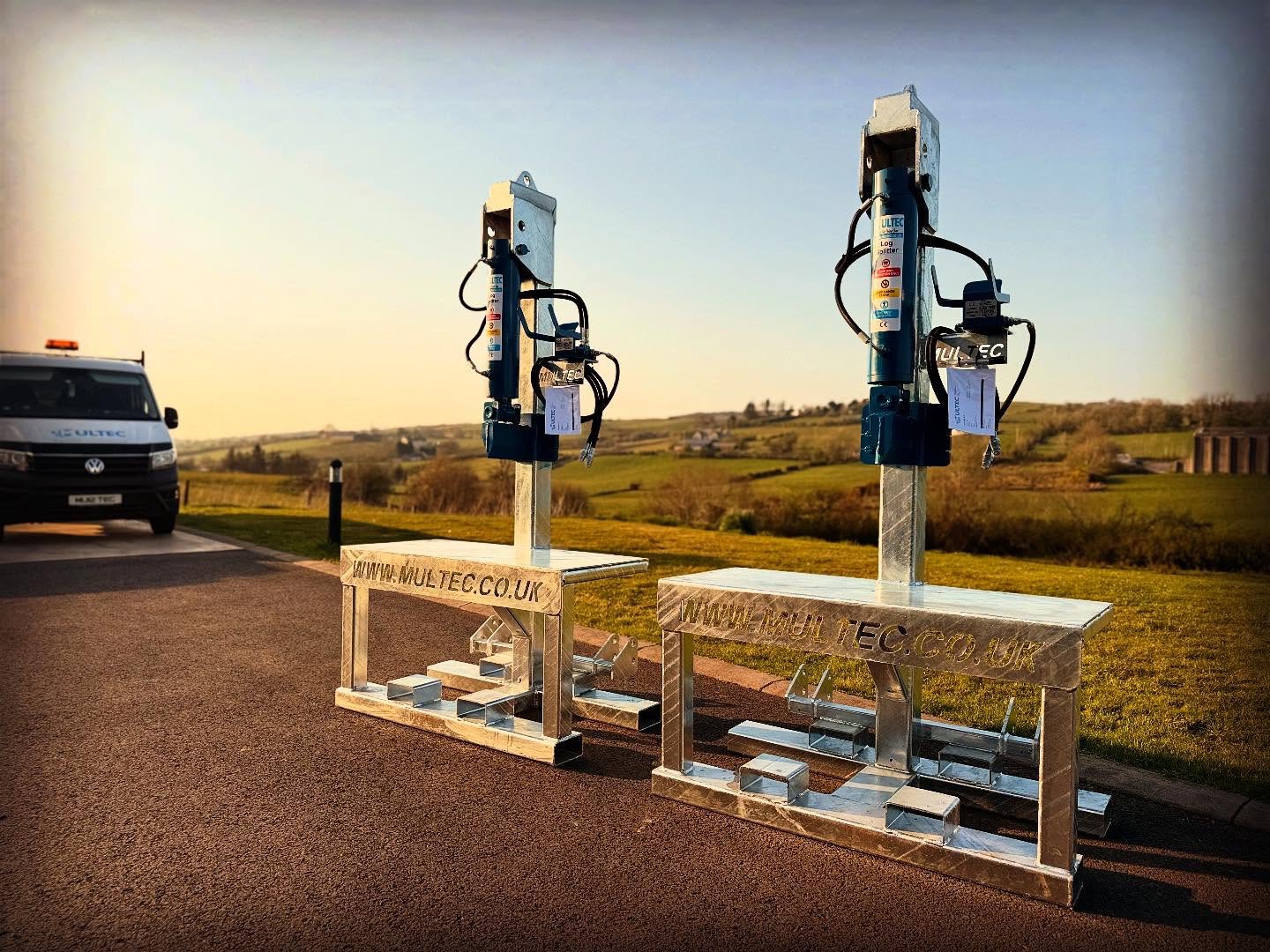

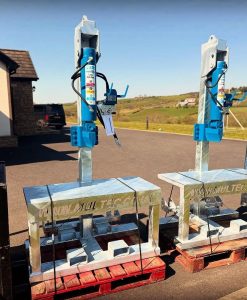

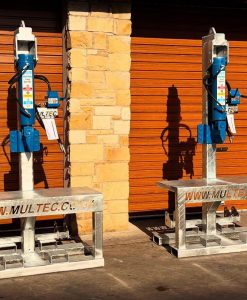

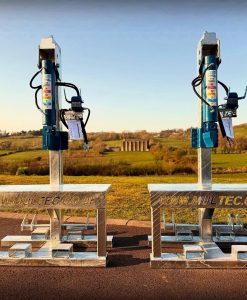

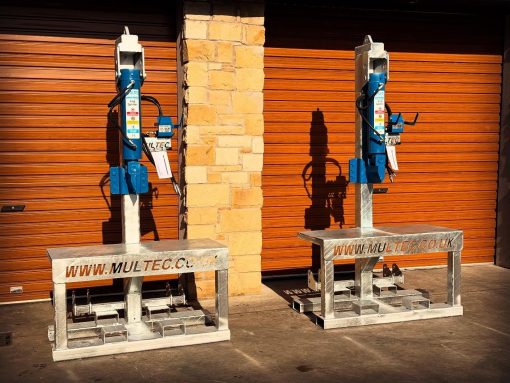

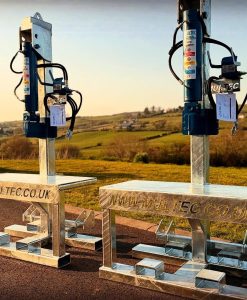

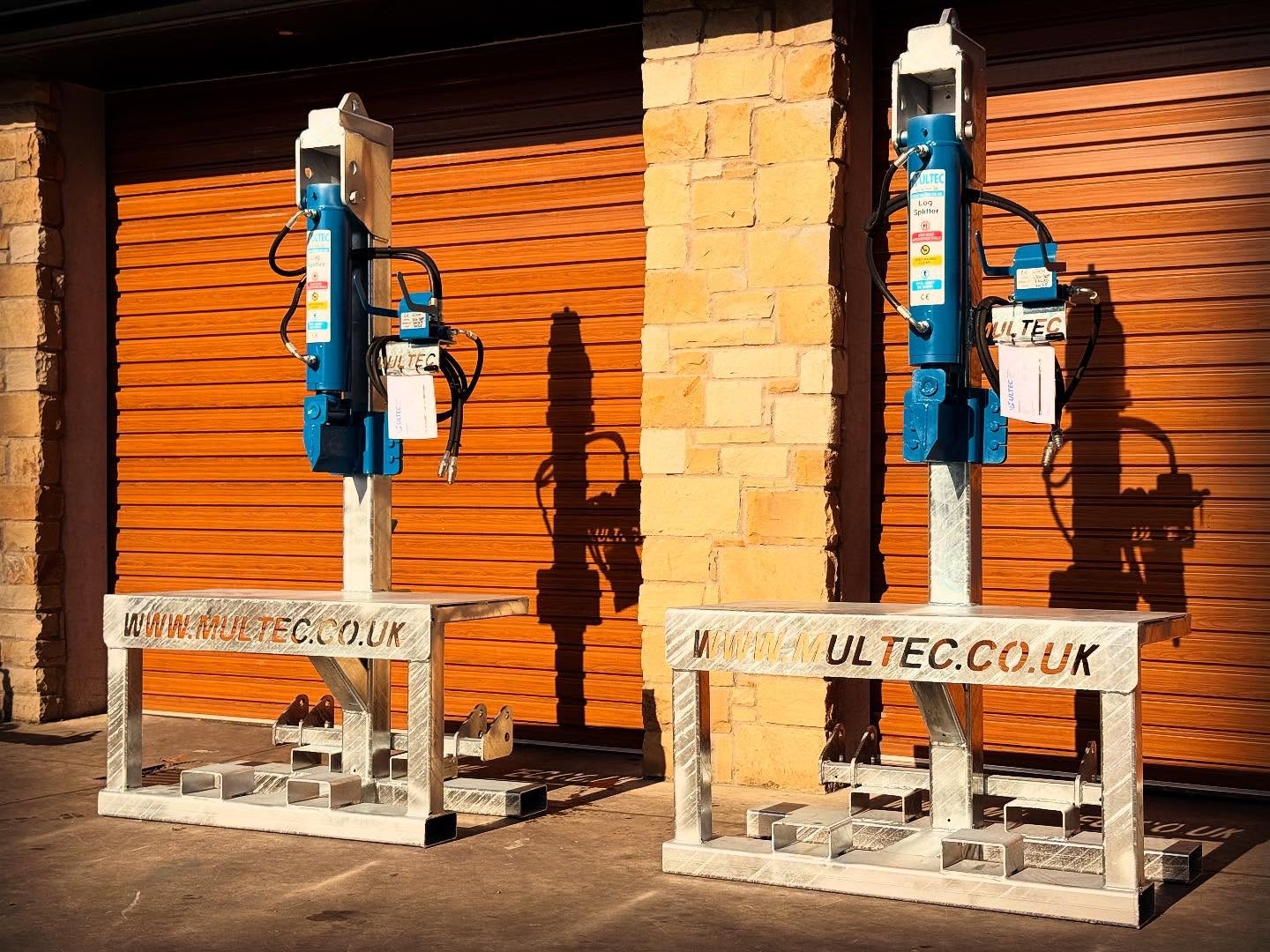

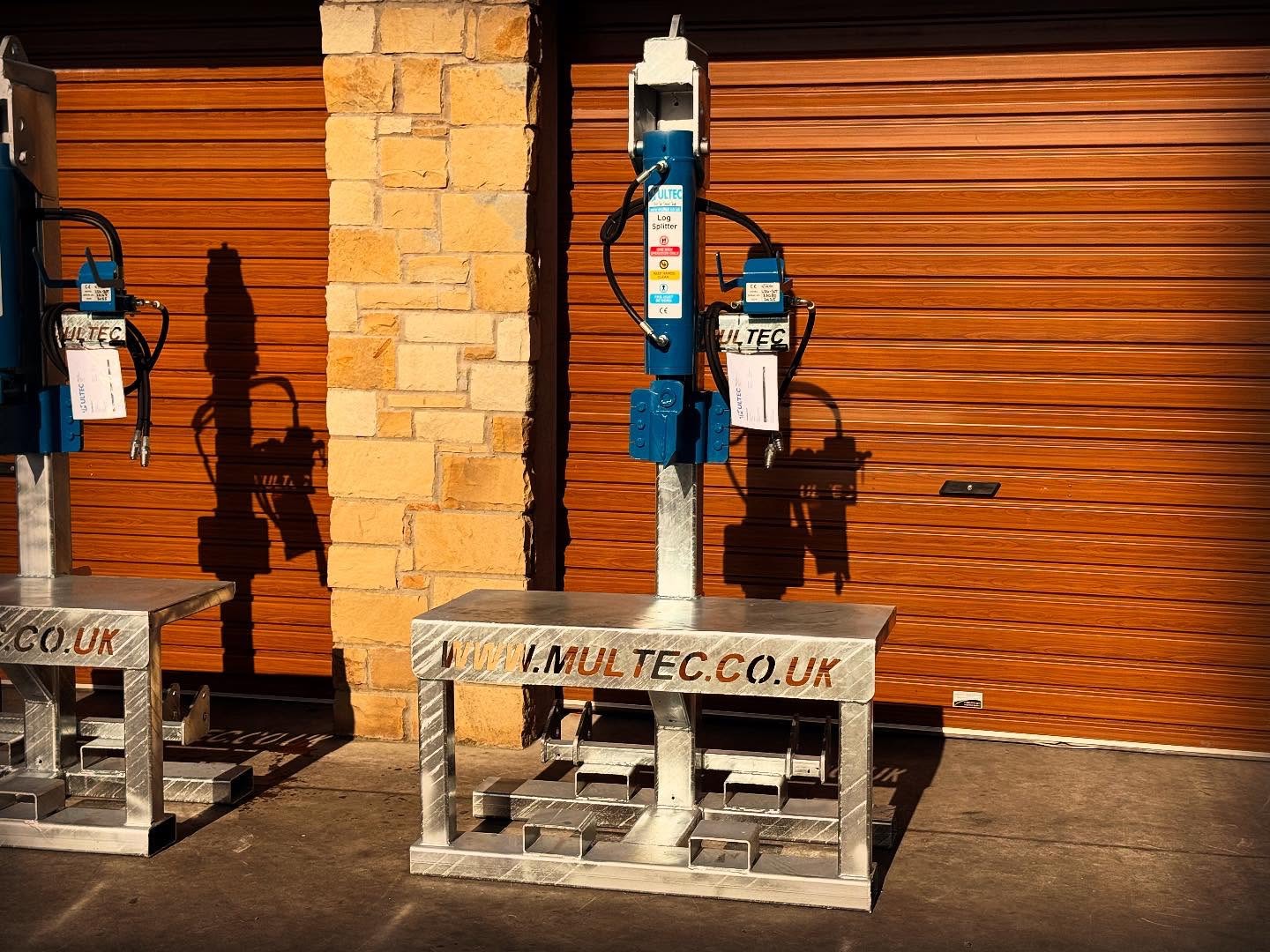

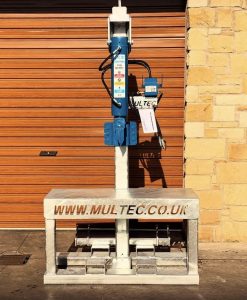

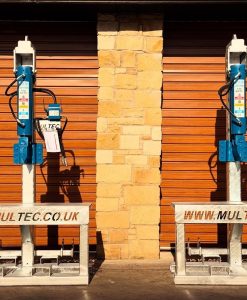

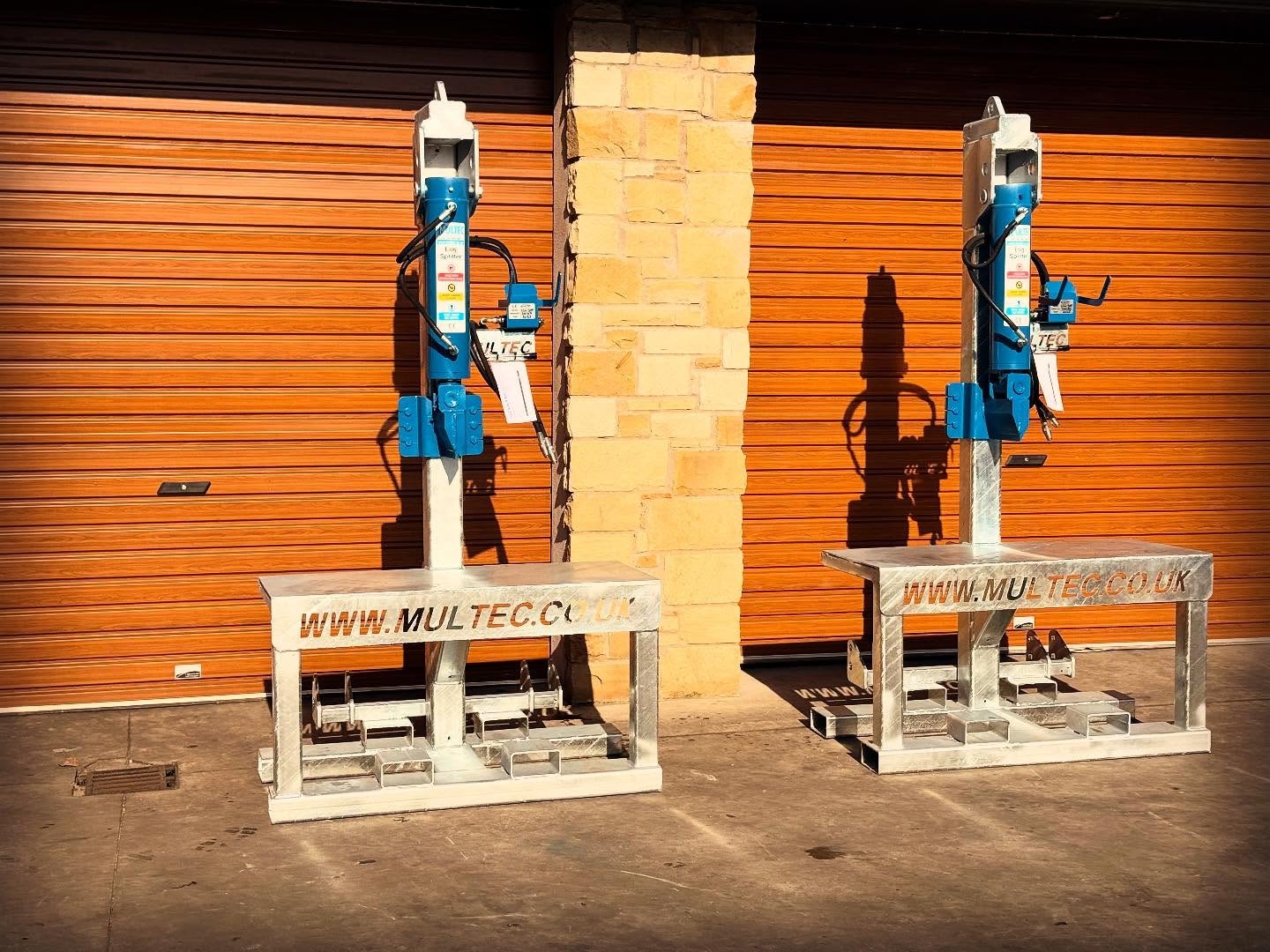

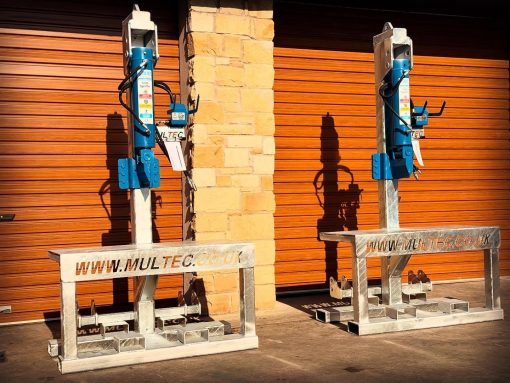

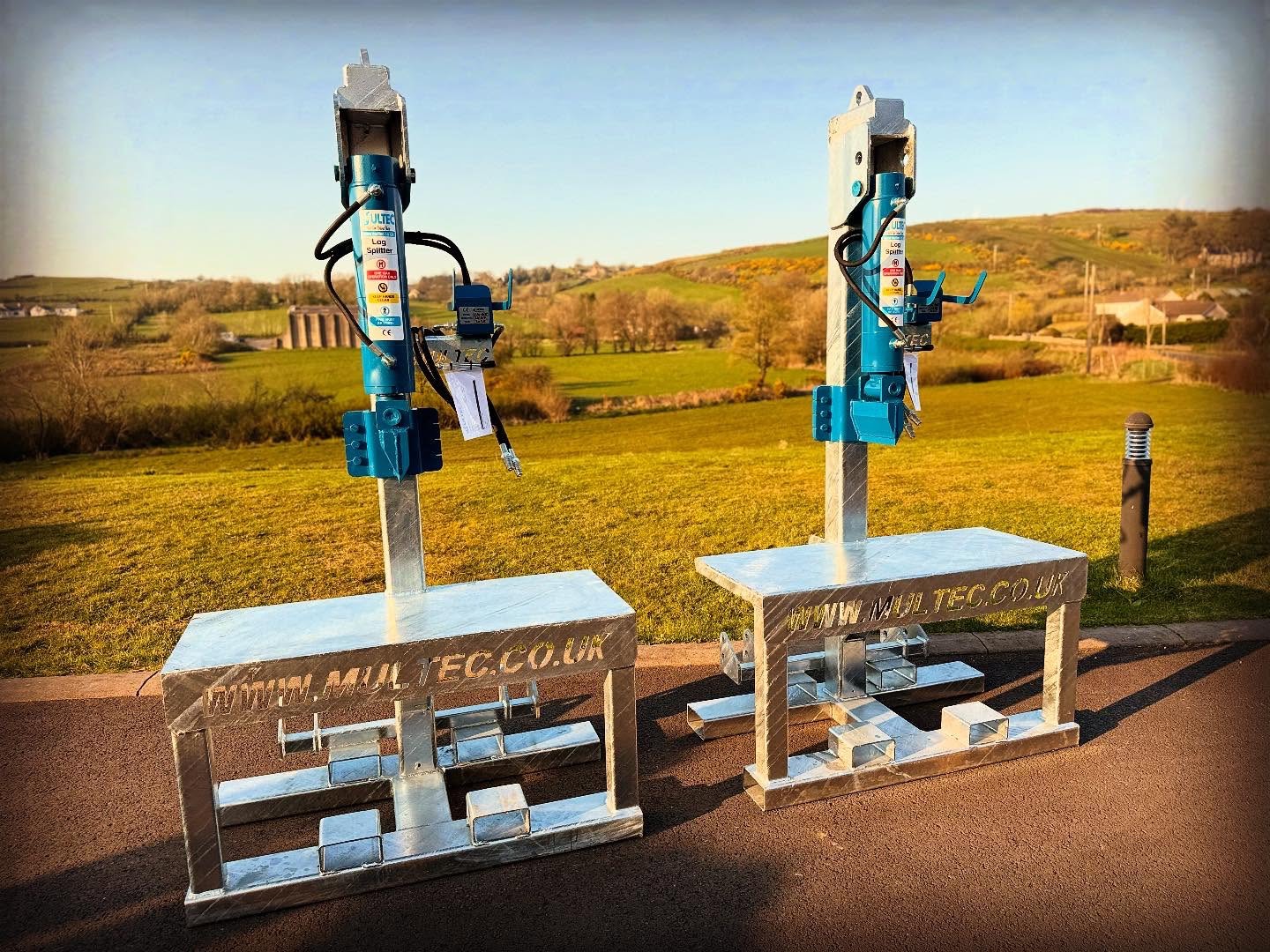

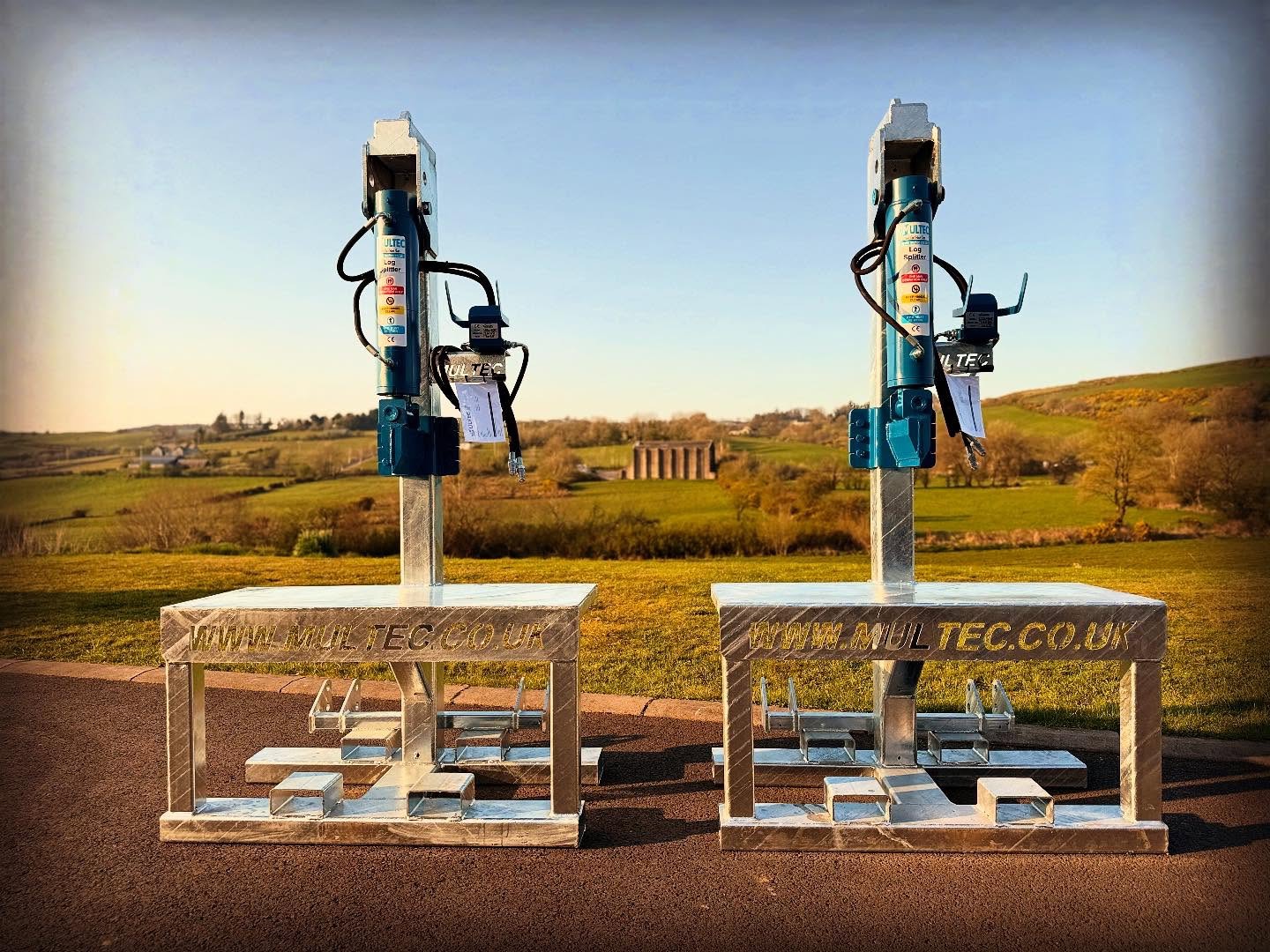

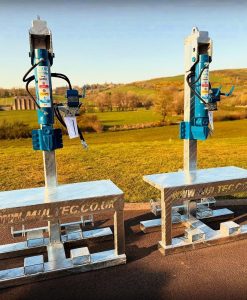

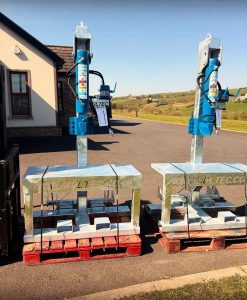

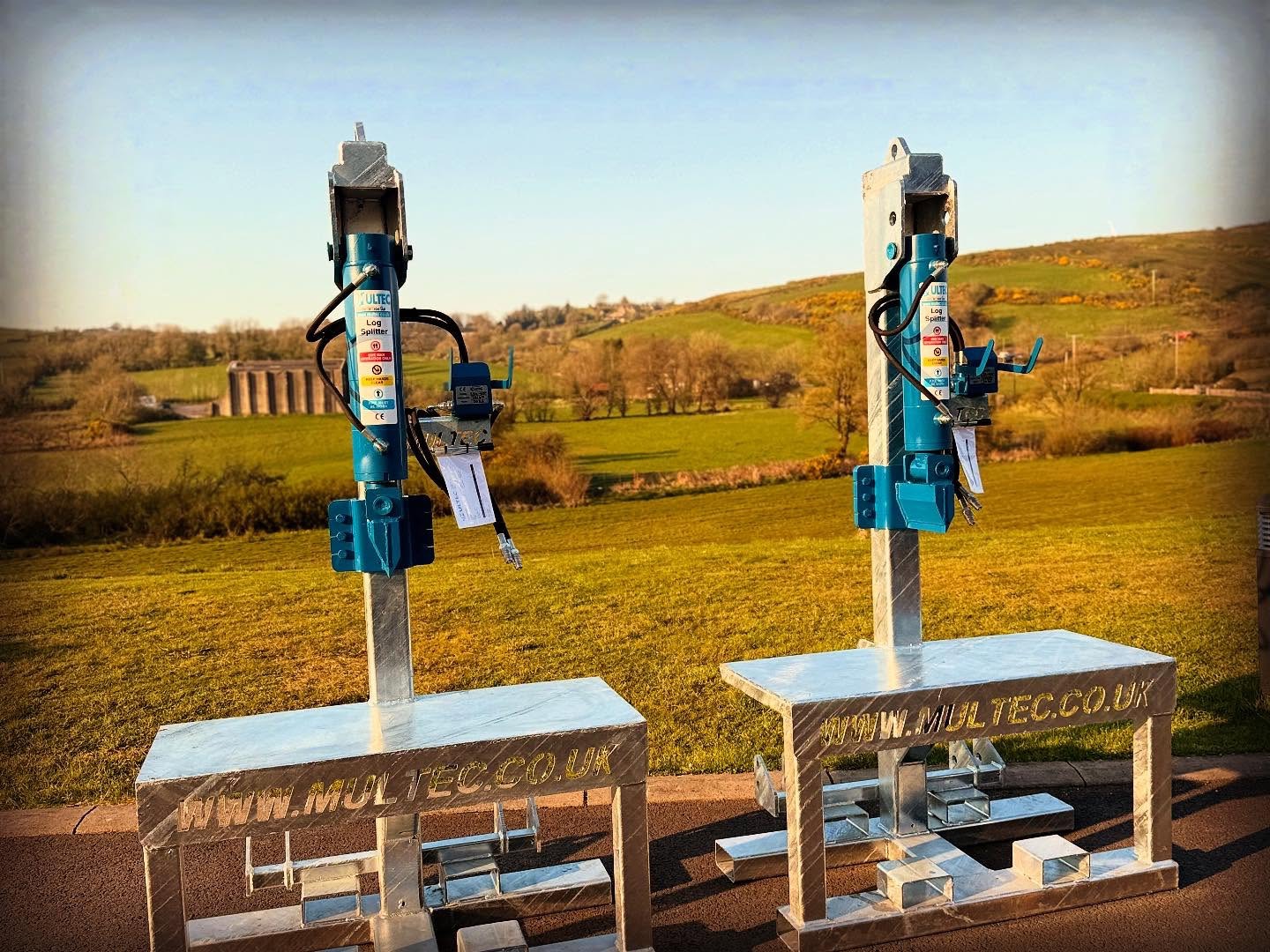

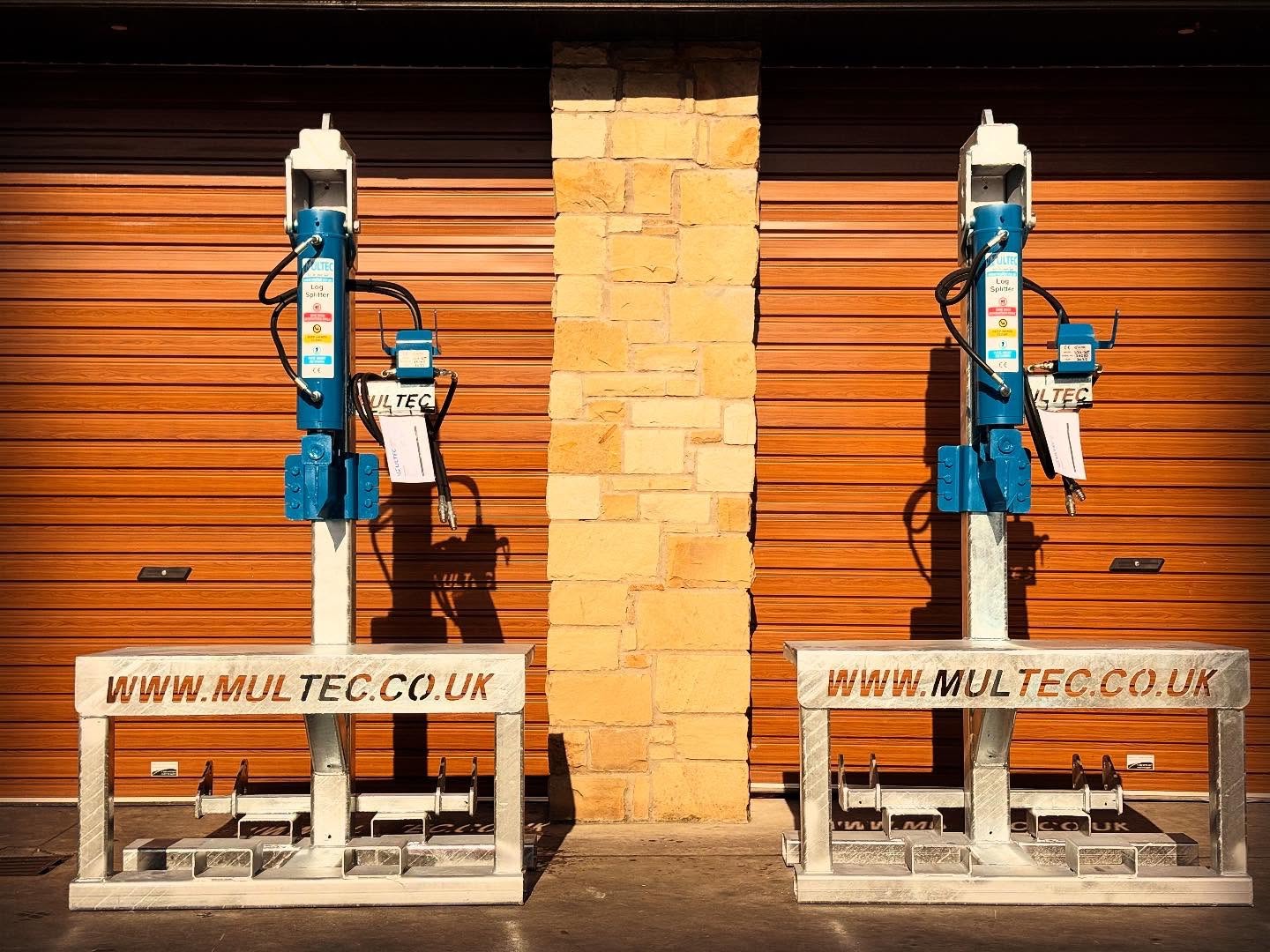

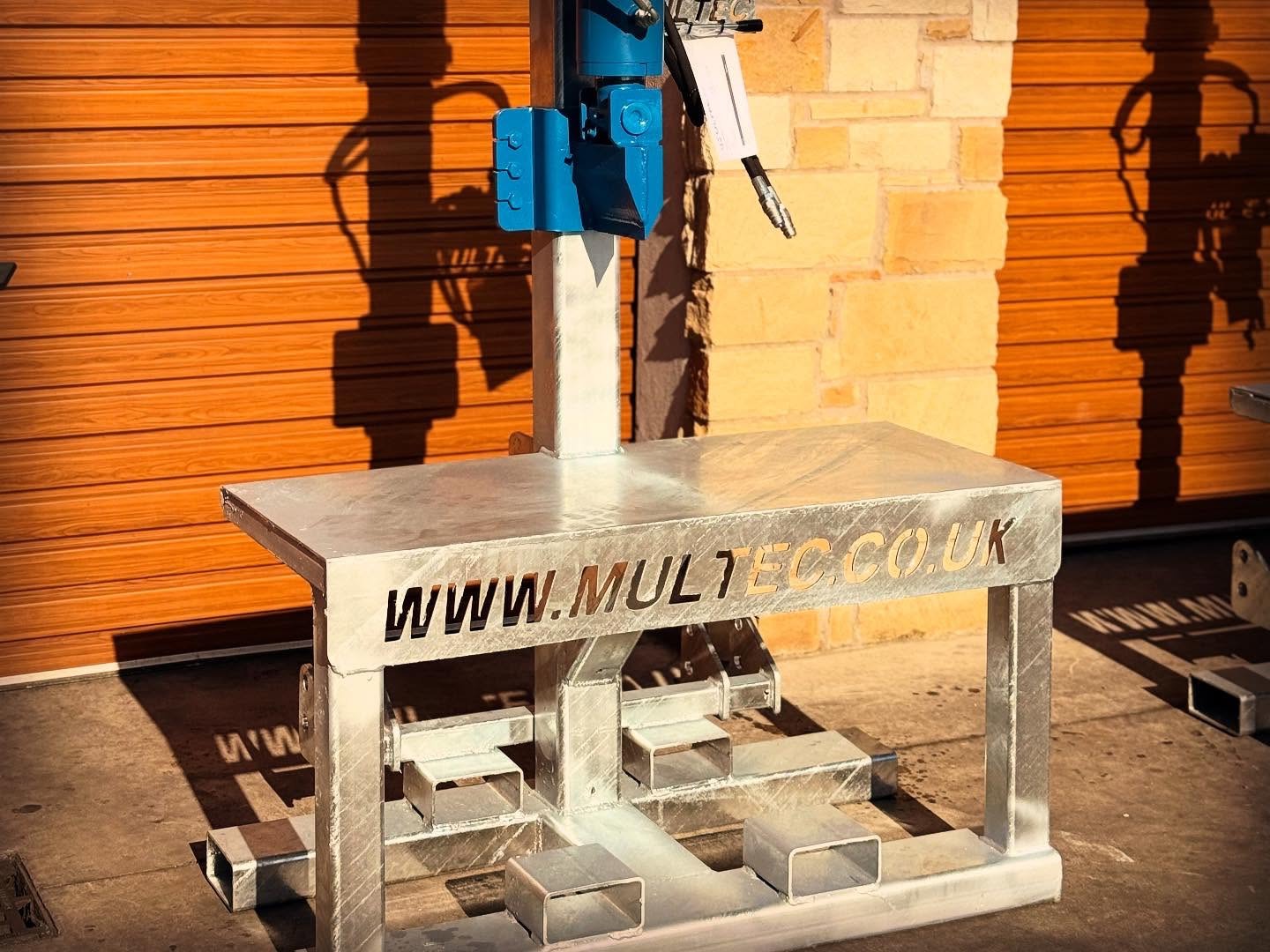

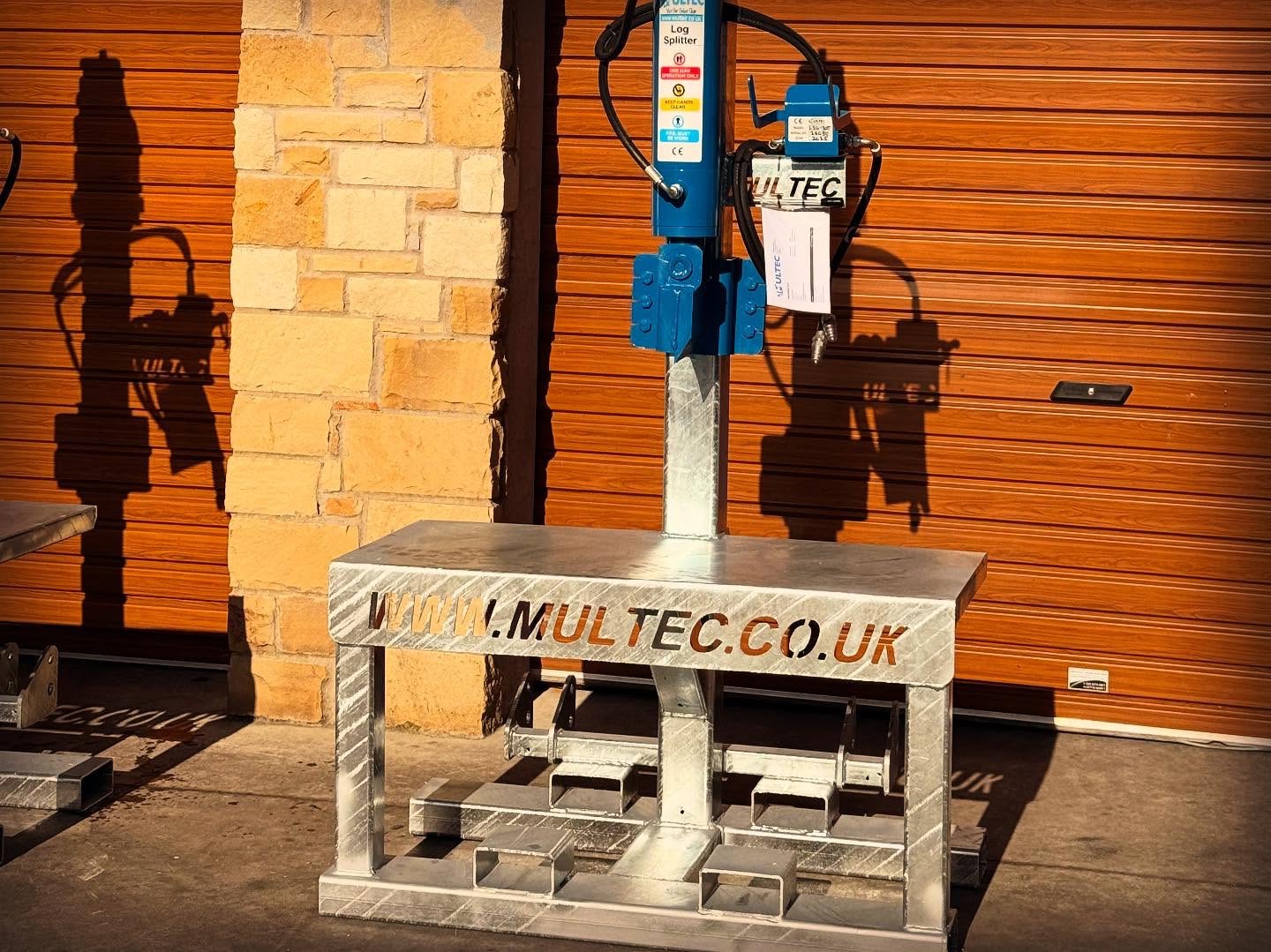

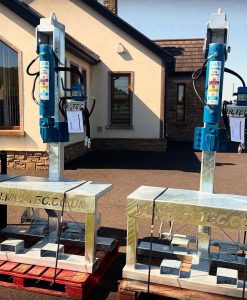

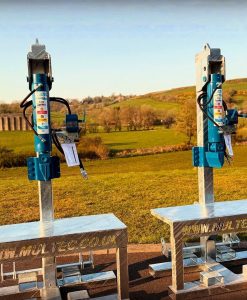

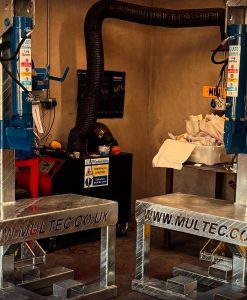

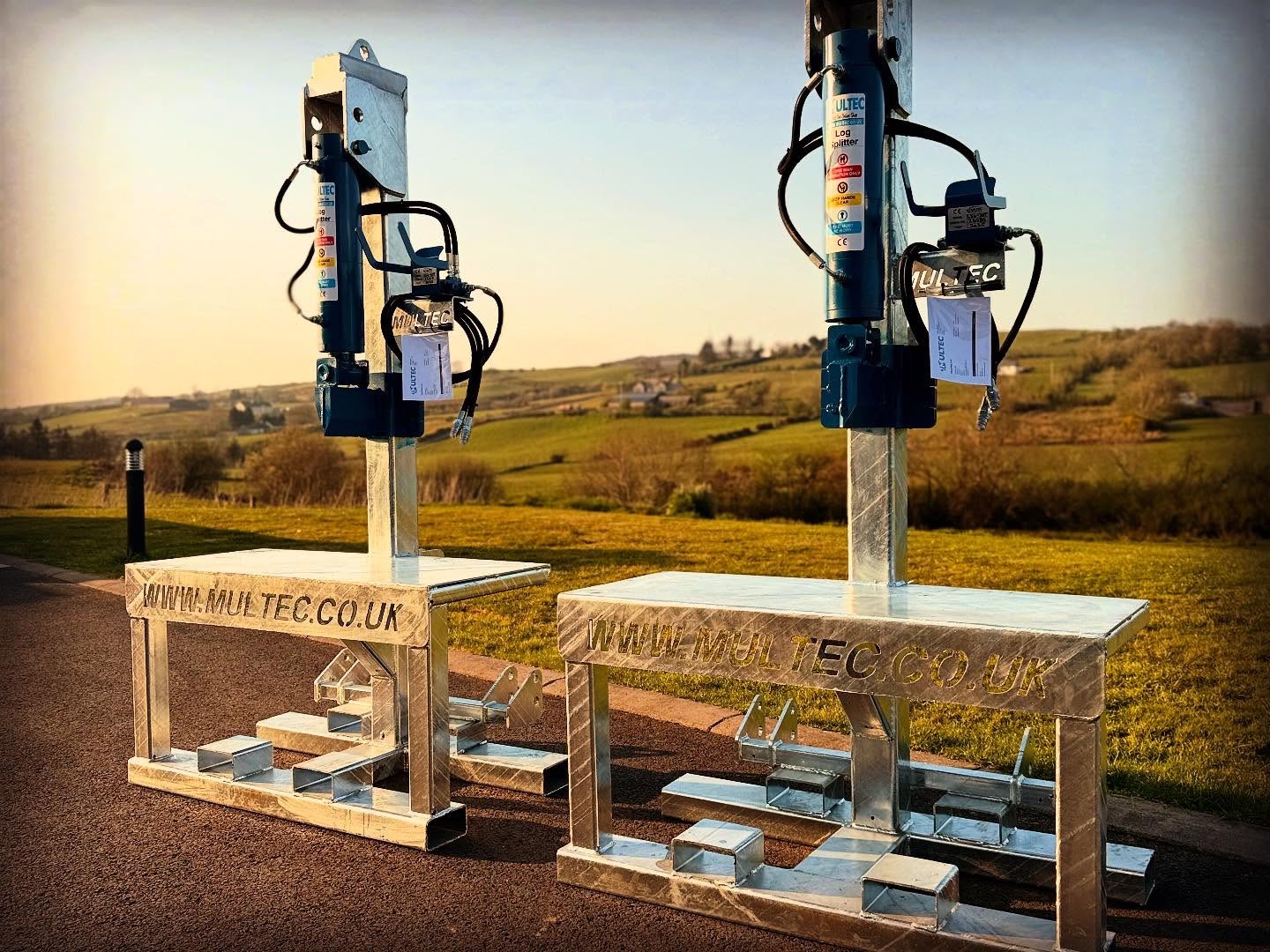

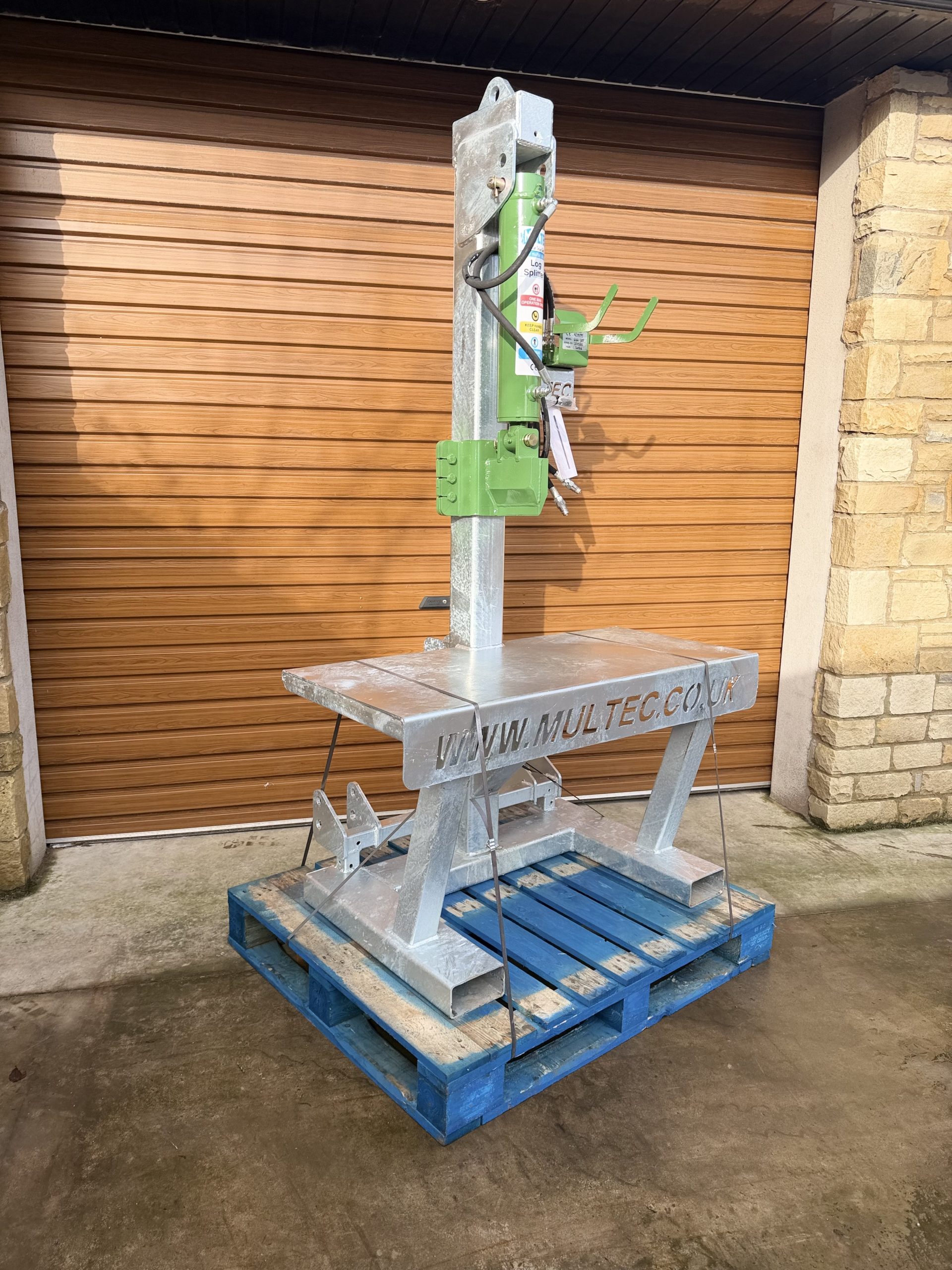

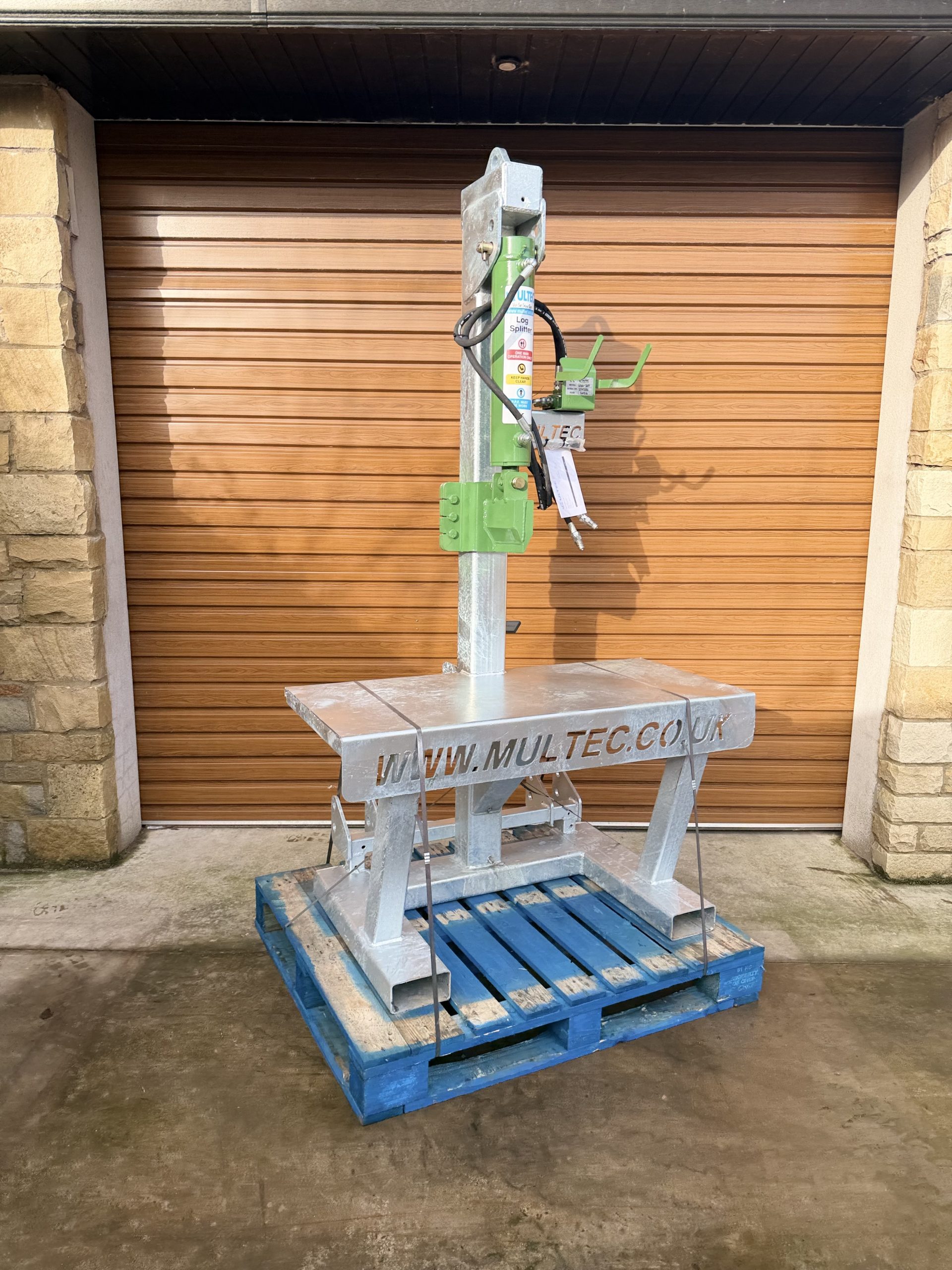

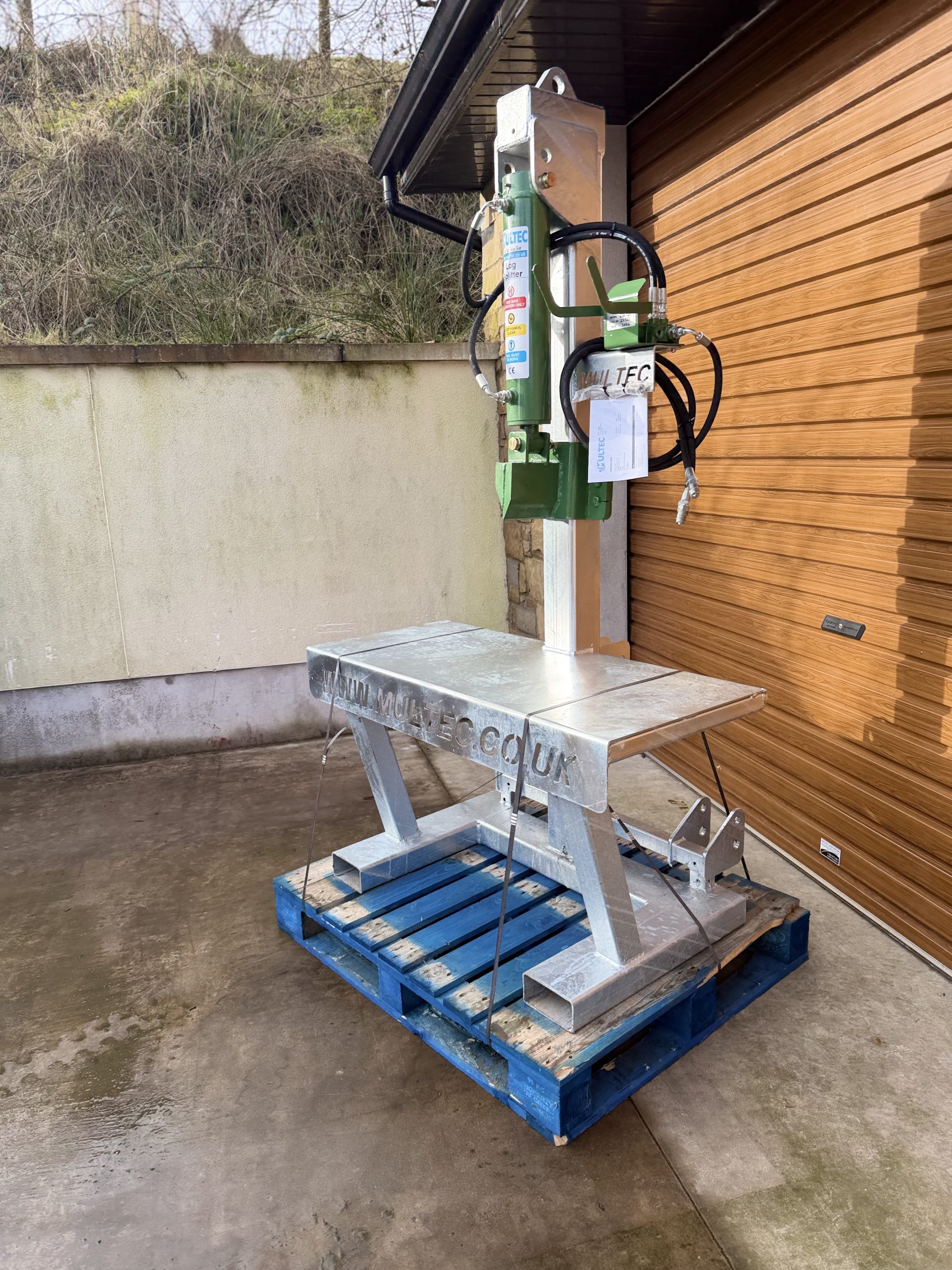

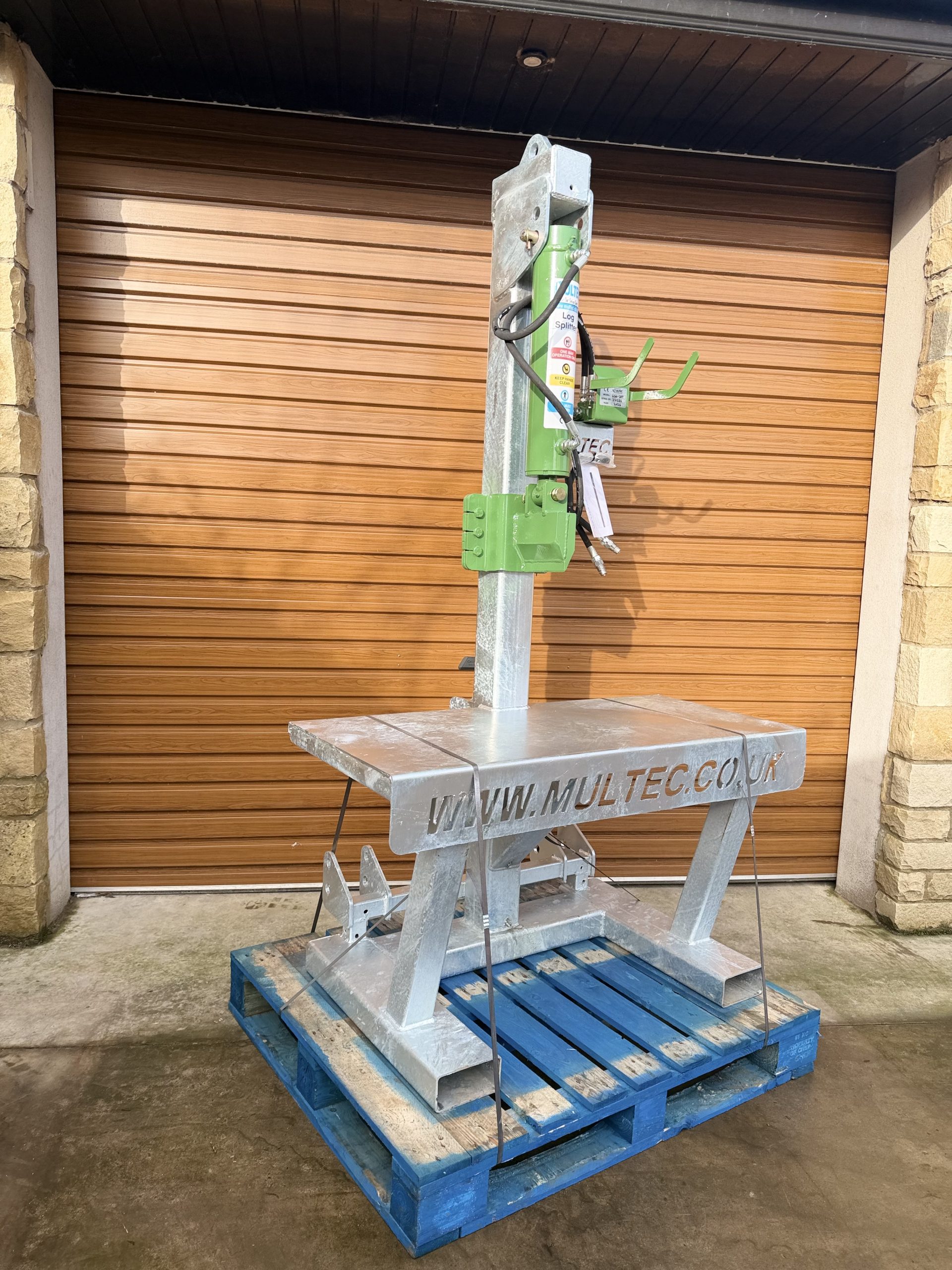

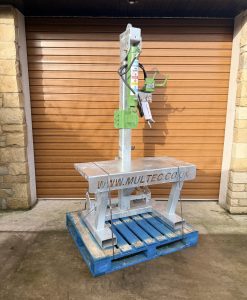

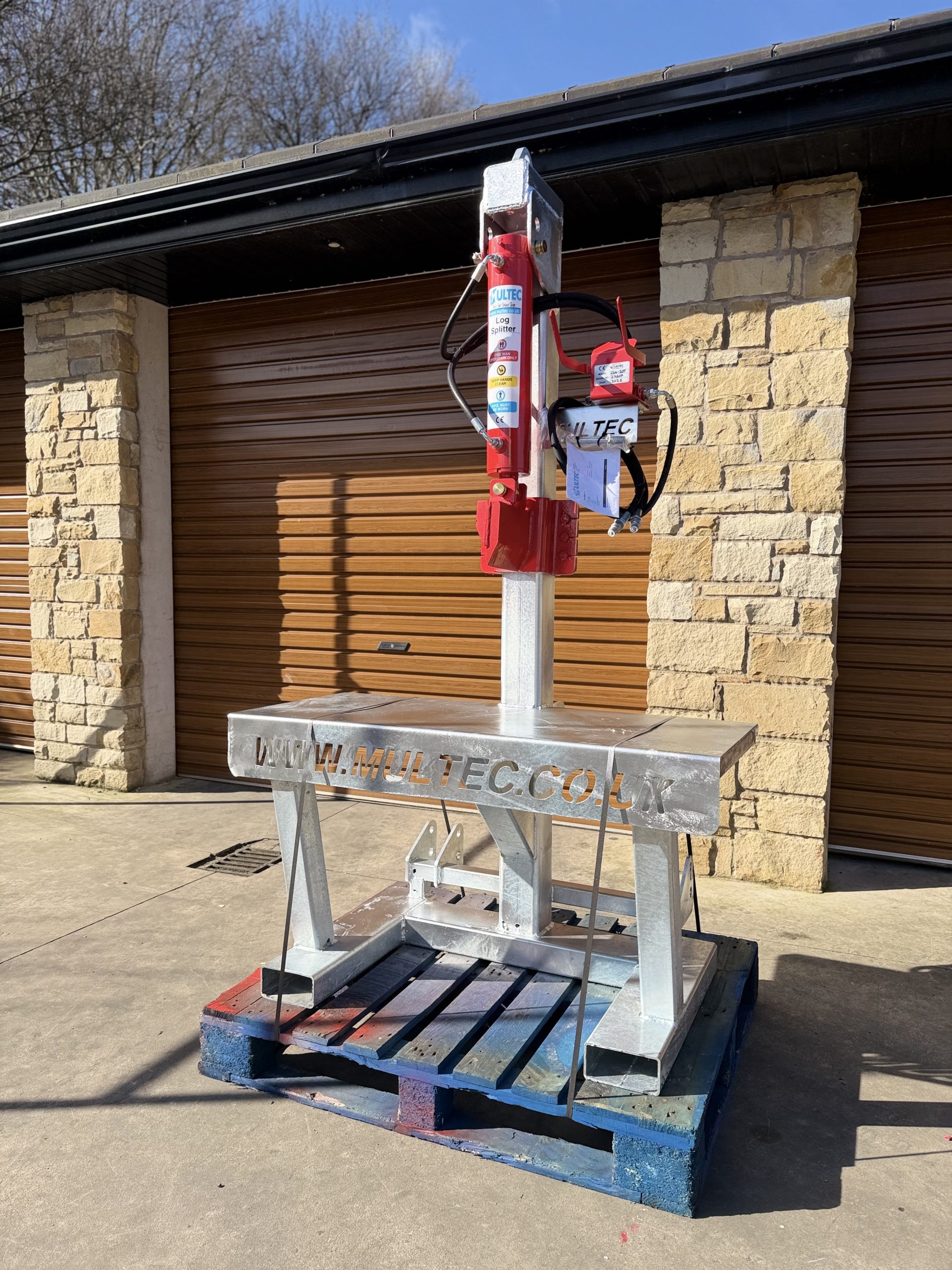

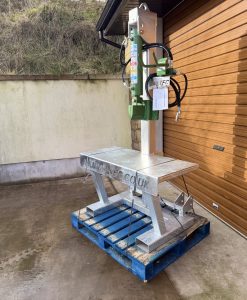

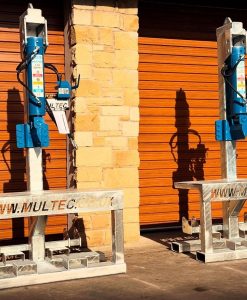

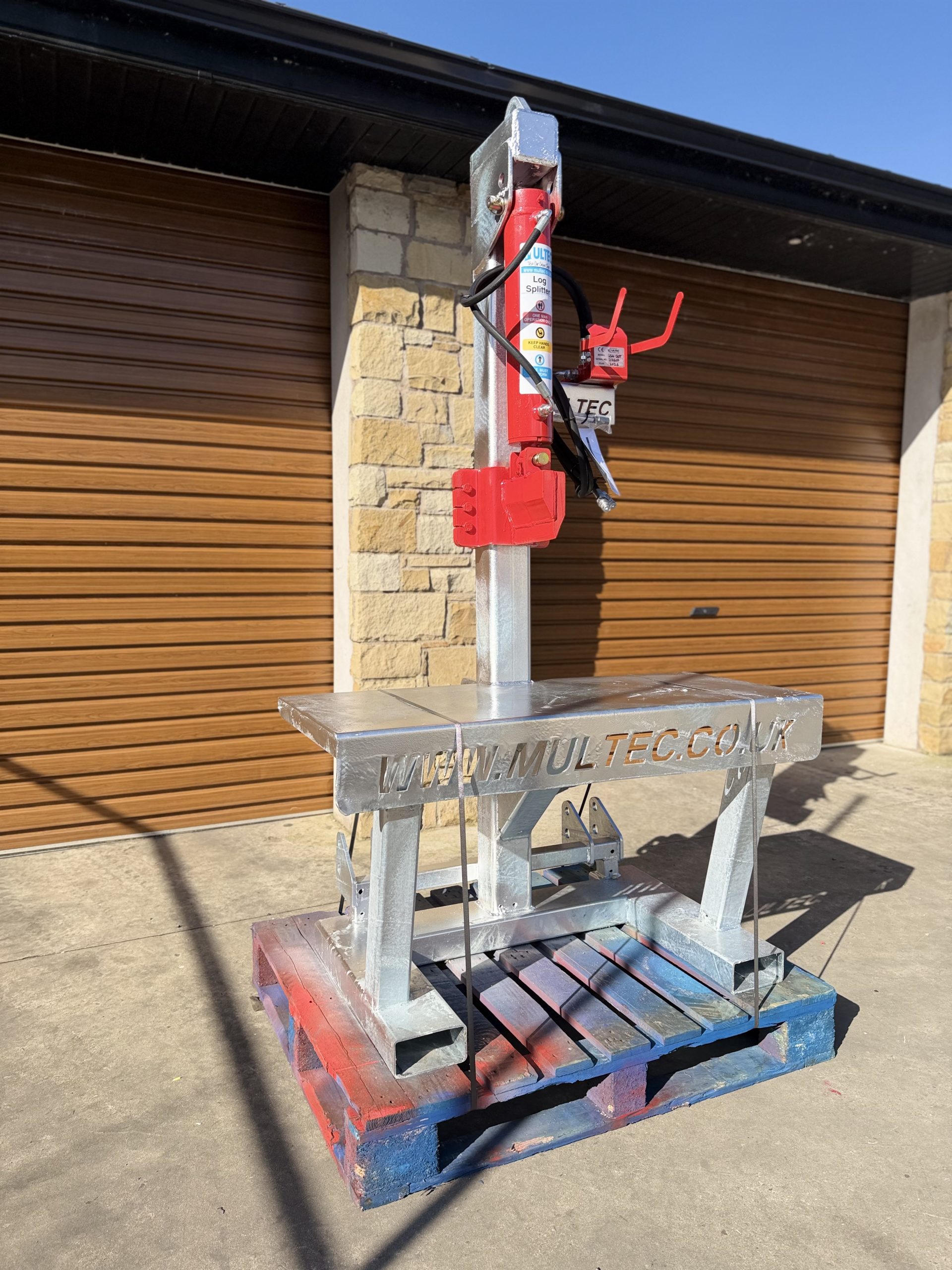

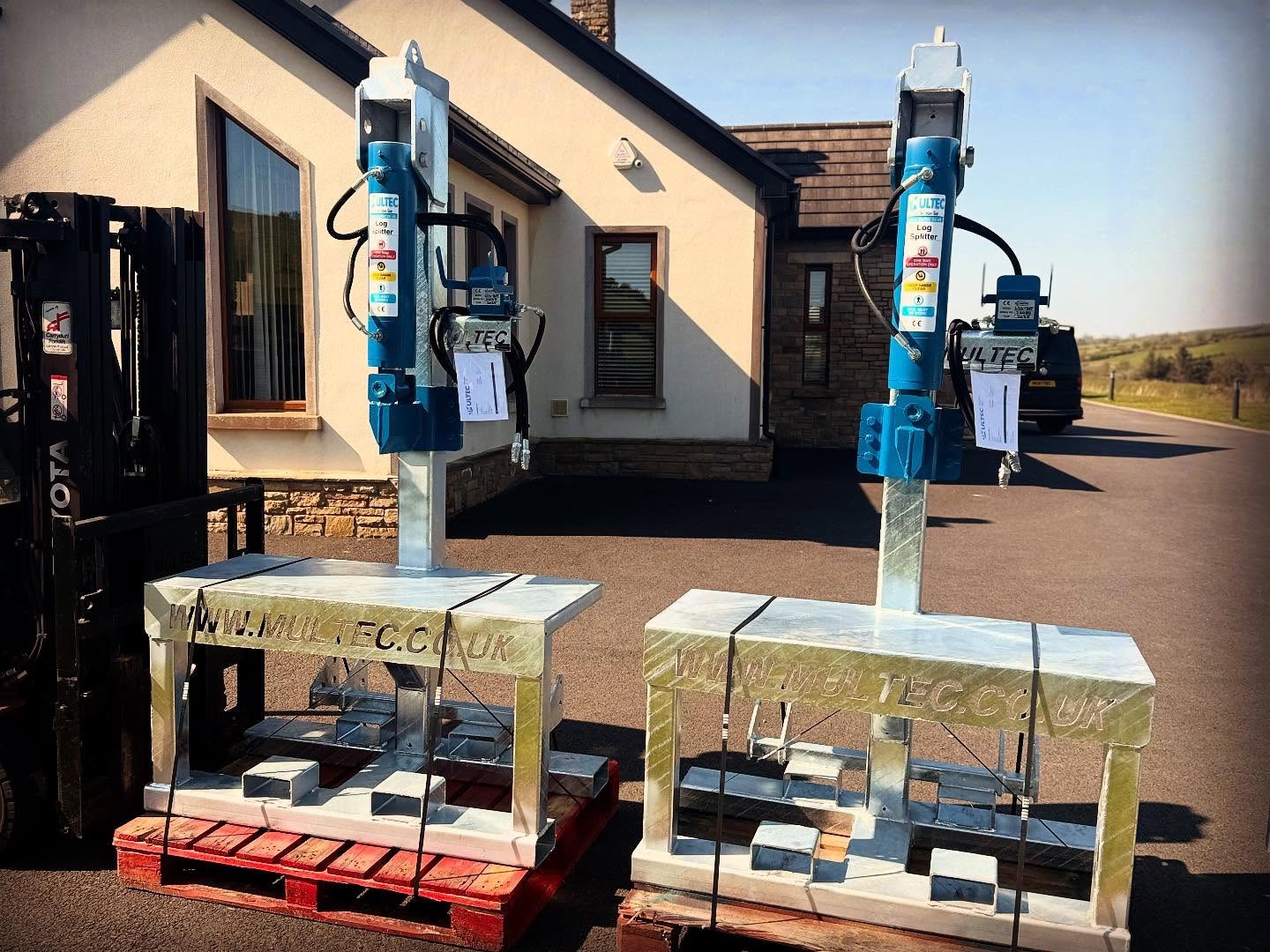

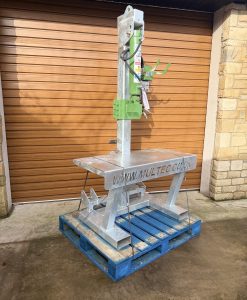

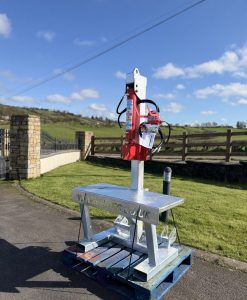

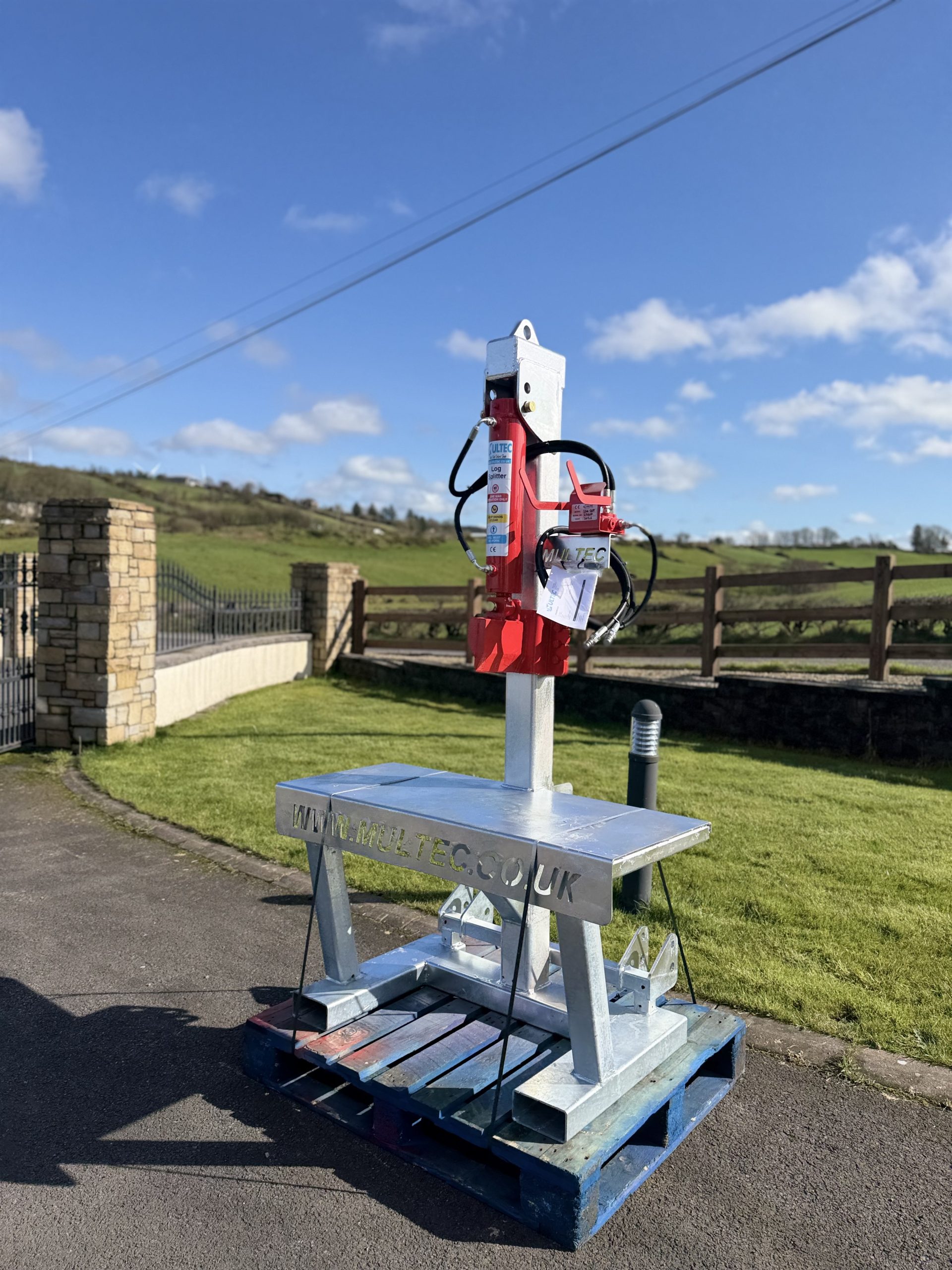

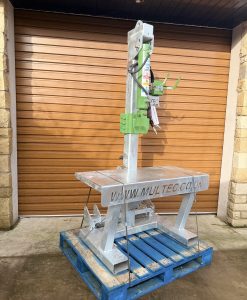

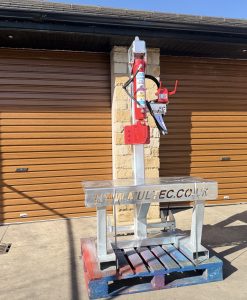

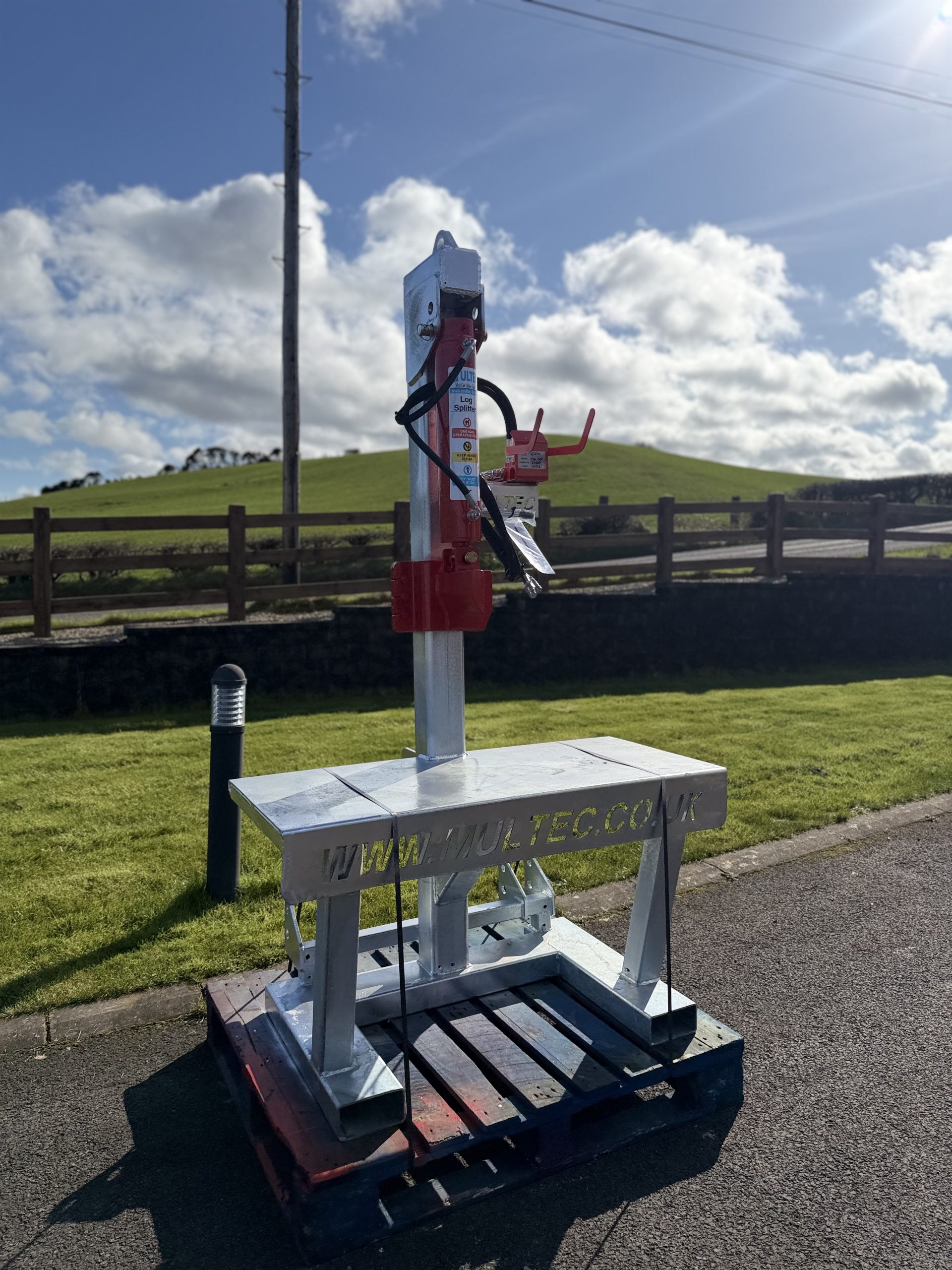

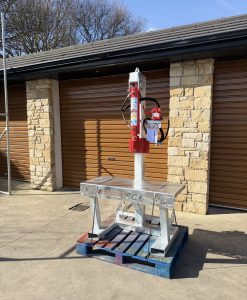

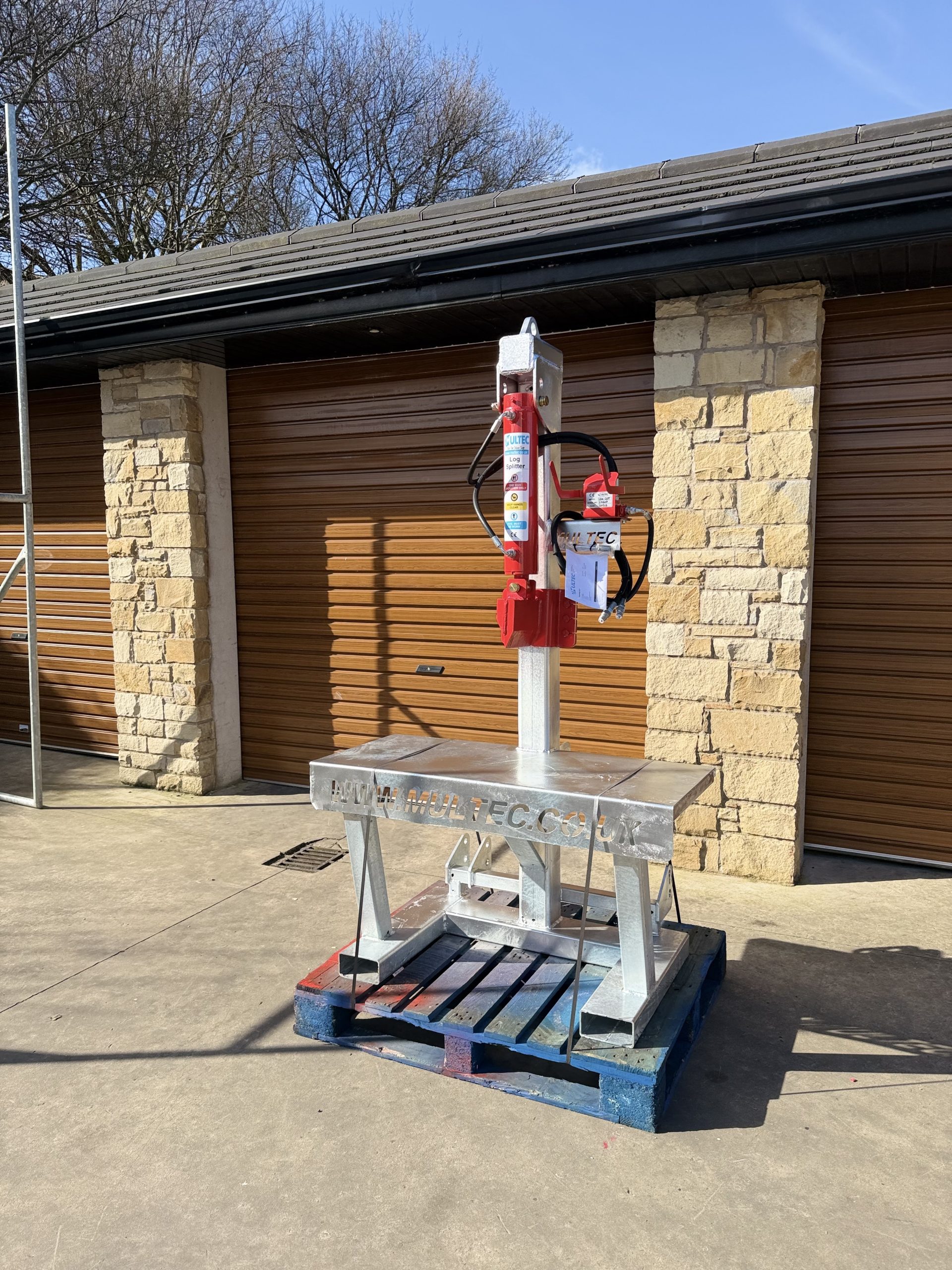

Multec LS4 Log Splitters. (Big 4Ft Table Model) GALVANISED
Supplied by: Multec Ltd
Manufacturer Code: M-LS4-GALV.
Benefits:
- Designed to be “One Of The Best” on the market!
- Multec Log Splitters are suitable for home or commercial use… Splitting all sizes of Logs.
- CE Marked when fitted with dual controls. (Two-handed Control only)
- 5no. x Different Ram Splitting Forces to choose from.
- Extra holes in the top gussets allows the ram to be raised up for an even bigger stroke.
- All Rams have a 400mm (16″) Stroke / Rod length for taller logs
- Tractor three point linkage (3PL) C/w both Cat 1 & Cat 2 Linkage holes.
- Free Standing with Large 160 x 80 box section H-frame base to suit Pallet Forks.
- GALVANISED (Hot Zinc Dipped for a lifetime of rust free)
Specification: (M-LS4-GALV)
- LS4 means 4ft working platform / table. (4ft x 2ft)
- Heavy Duty.
- Waist Height table.

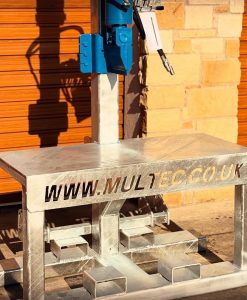

- 4ft x 2ft Heavily braced working platform / table.
- 100mm x 50mm x 6mm box section table skeleton & brace.
- Cat 1 & Cat 2 three point linkage holes.
- Heavy Gauge Mast (120mm x 120mm x 10mm box section.).
- Can be used off the ground on the tractor arms or on forks to increase working height.
- Ram cylinder is removable from the wedge. (Makes for easier repair if seal ever goes in the ram).
- Sliders are 15mm gauge and bolt together with 6no. x 16mm bolts.
- All Rams have a 400mm (16″) Stroke / Rod length for taller logs.
- Extra holes in the top gussets allows the ram to be raised for a bigger stroke.

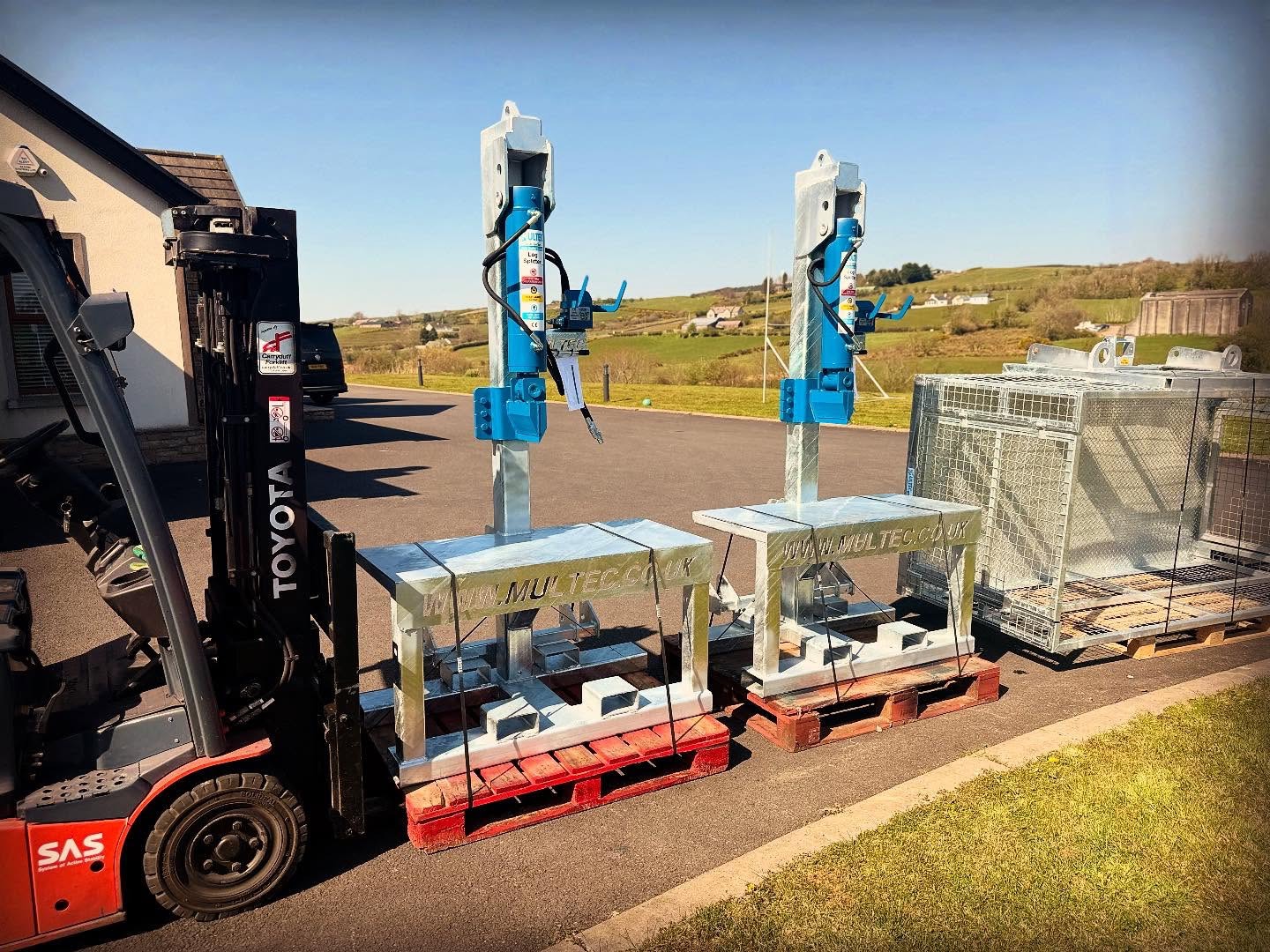

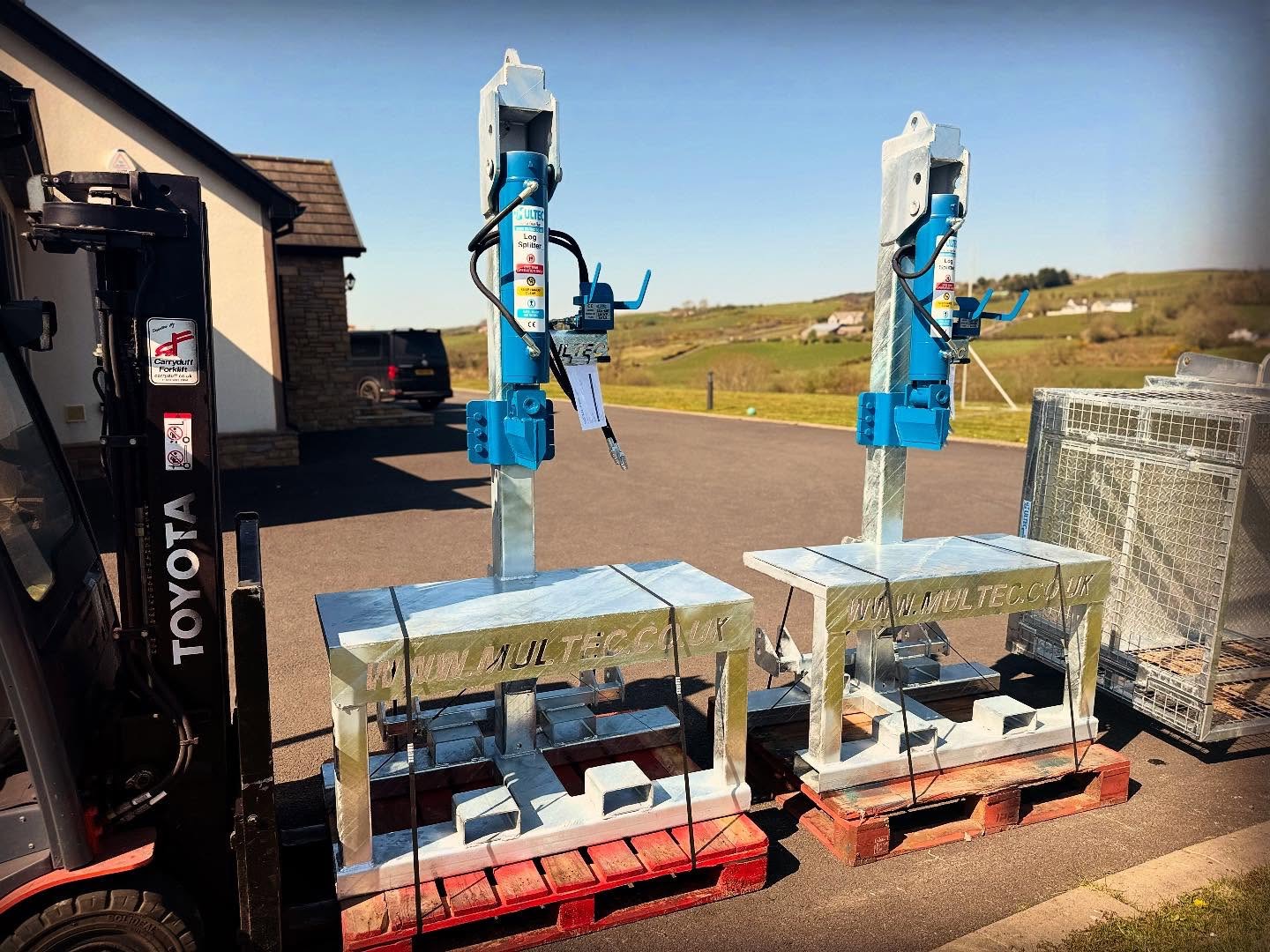

- Large H-Frame base (160 x 80 box) to suit forklifts, front loaders & telescopic handlers.
- Large H-Frame base also makes the Log Splitter free standing.
- Lifting hook welded on top of the Splitter. (Allows for another method of lifting and moving it safely).
- CE Marked when fitted with dual controls. (Two-handed Control only)
- Full warranty included.
Five Ram Splitting Forces to choose from: (All Rams have a 400mm (16″) Stroke / Rod length for taller logs)
- 10Ton RamÂ
- 14Ton RamÂ
- 16Ton Ram
- 20Ton RamÂ
- 30Ton Ram
Video of the standard Multec 14Ton LS2 Log Splitter in action:
Order & Delivery information (Please Read):
After placing an order, you will receive a direct email within 48 hours with your “Order Dates” which will be as follows:
- Payment Date (Date of cleared funds)
- Dispatch Date (10 to 15 workings days from cleared funds)Â
- Arrival Date (2 working days from dispatch)
If the arrival date does not suit, Please contact us as soon as possible so we can re-arrange arrival on a preferred date.
Please Note: You will need to have access for the delivery lorry, arrange a way of unloading & sign for arrival.
