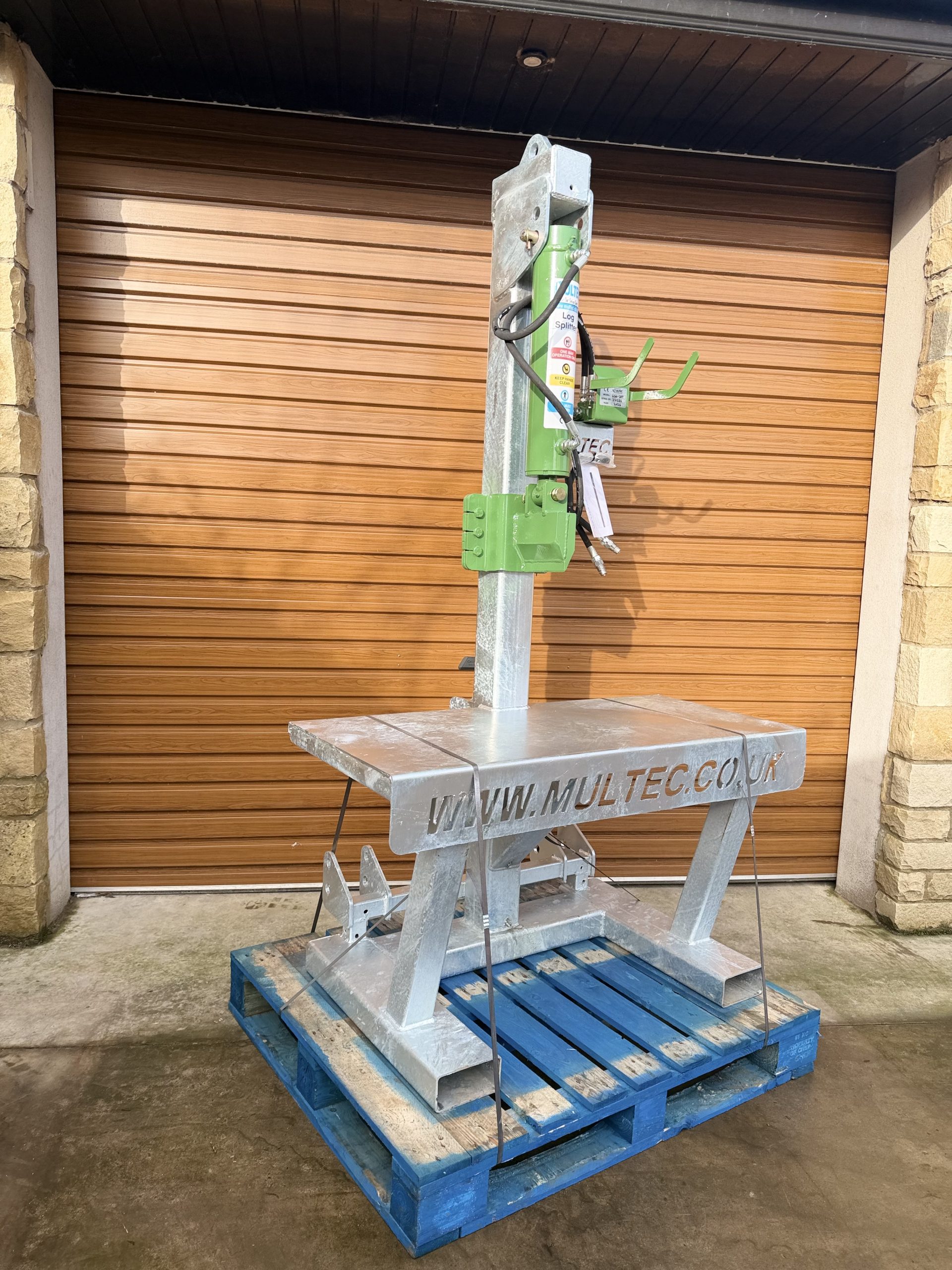

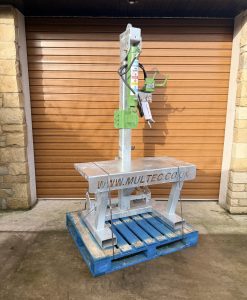

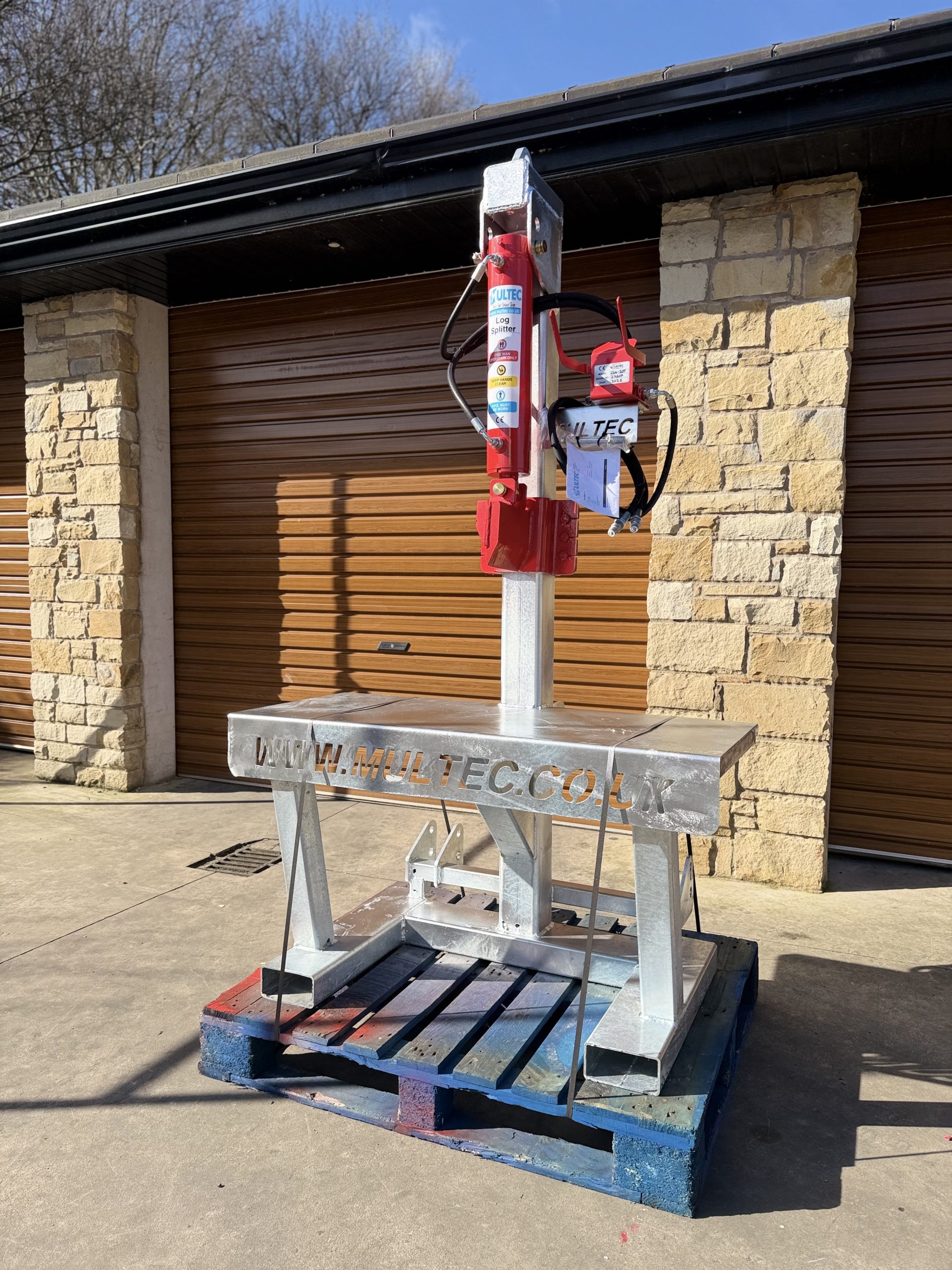

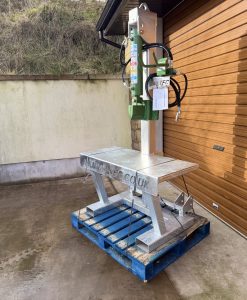

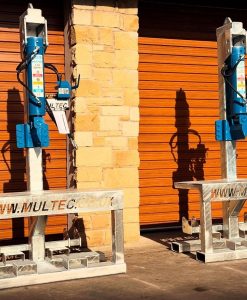

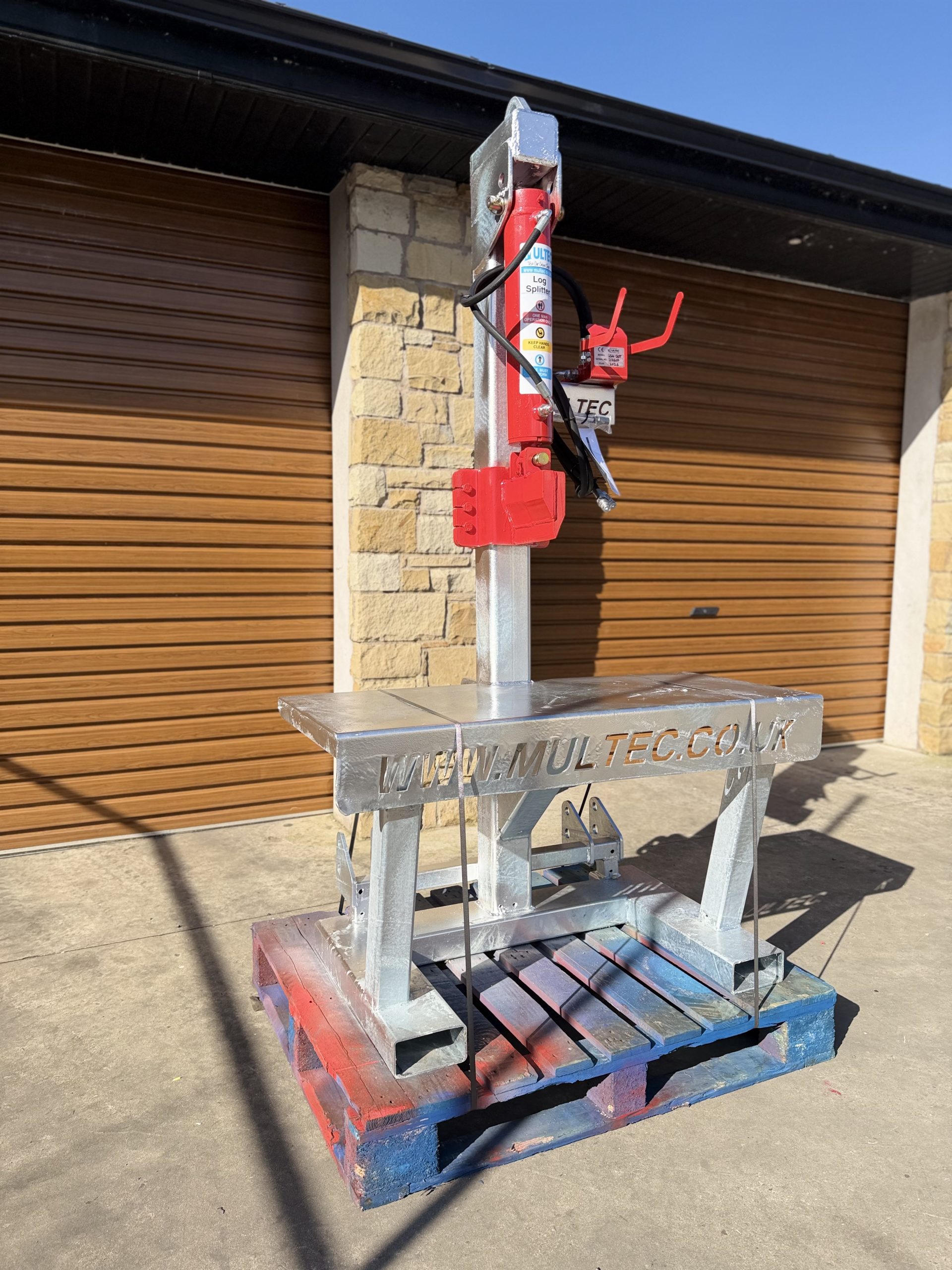

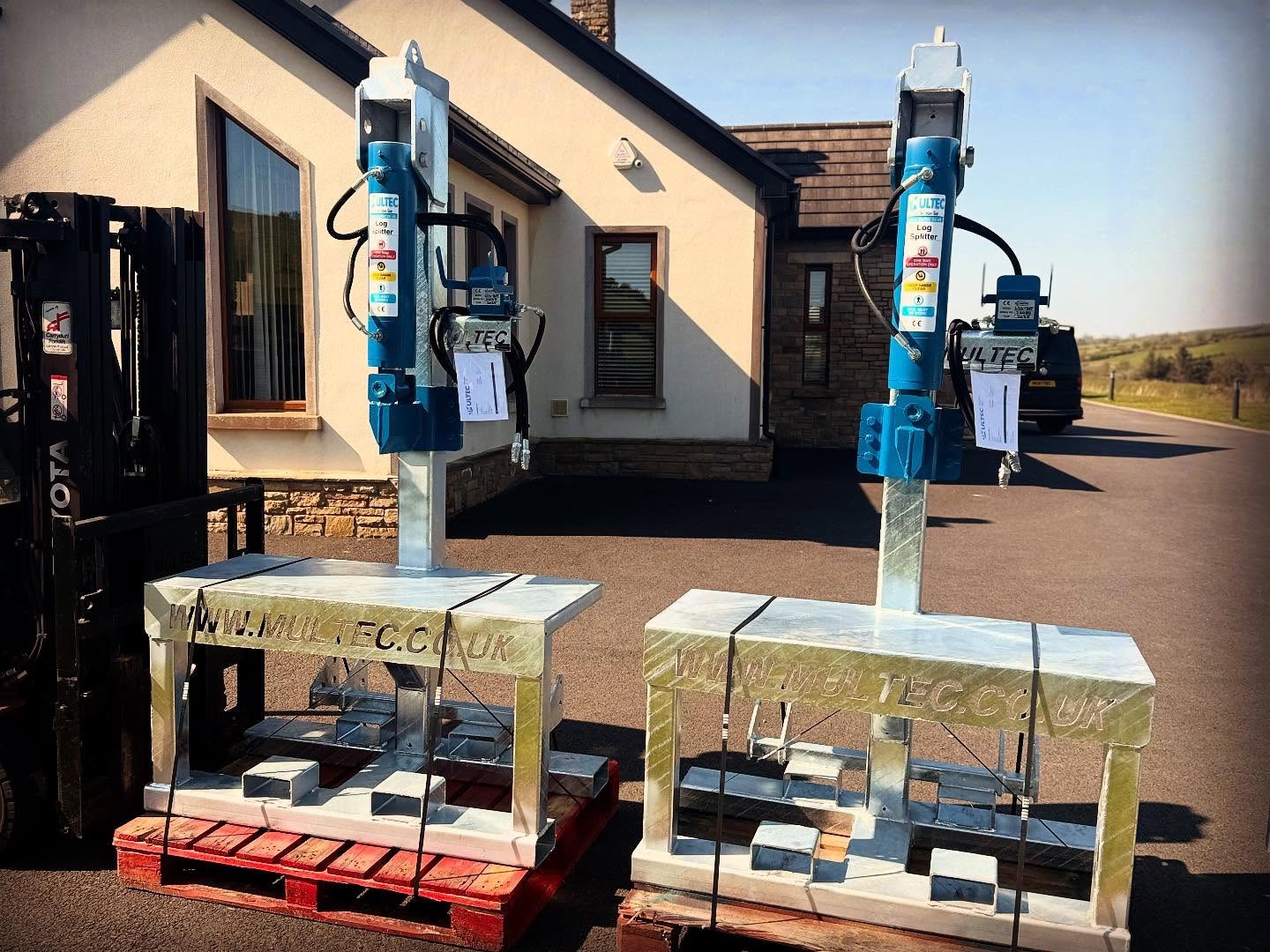

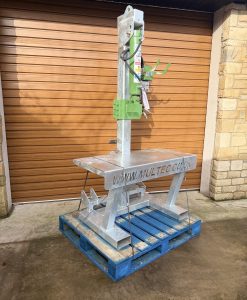

Multec LS4 Log Splitters (GALVANISED)

Description…

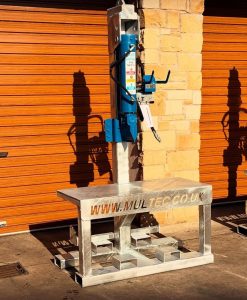

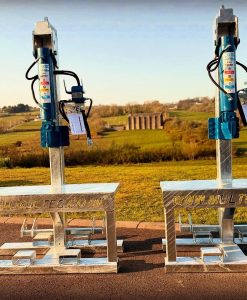

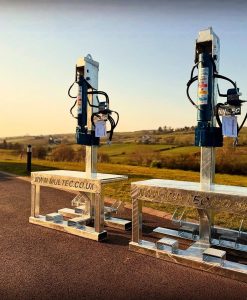

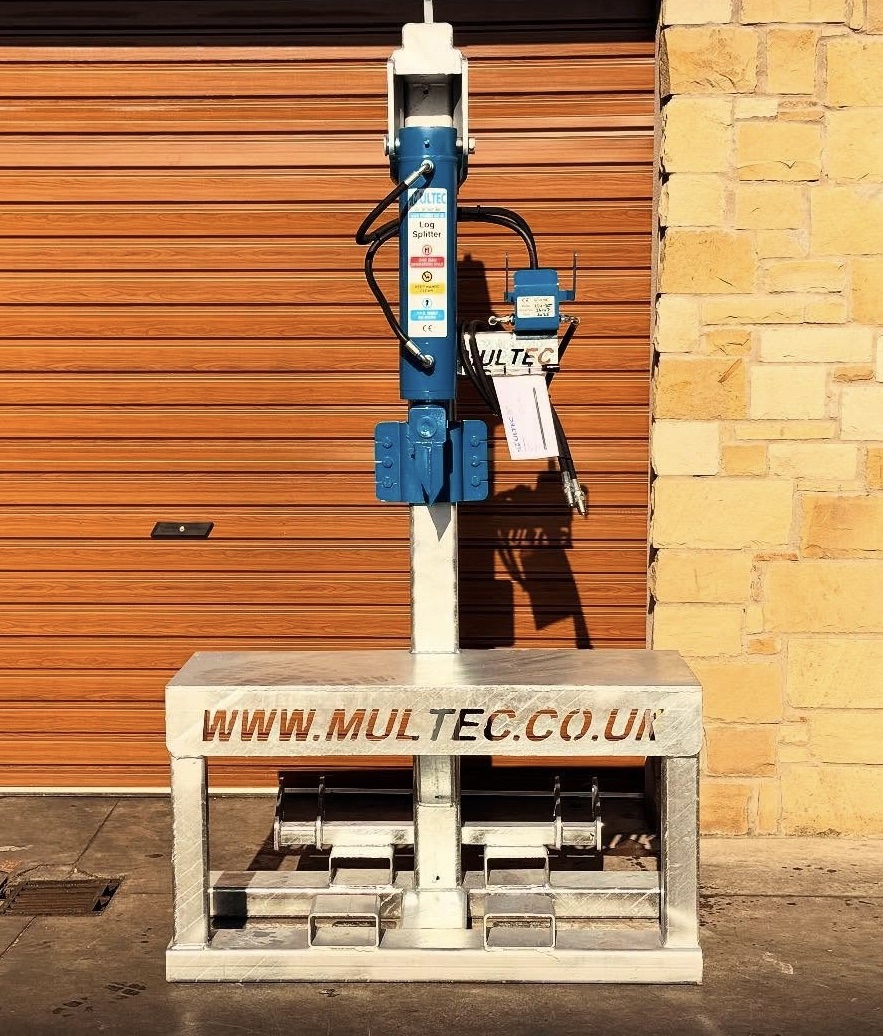

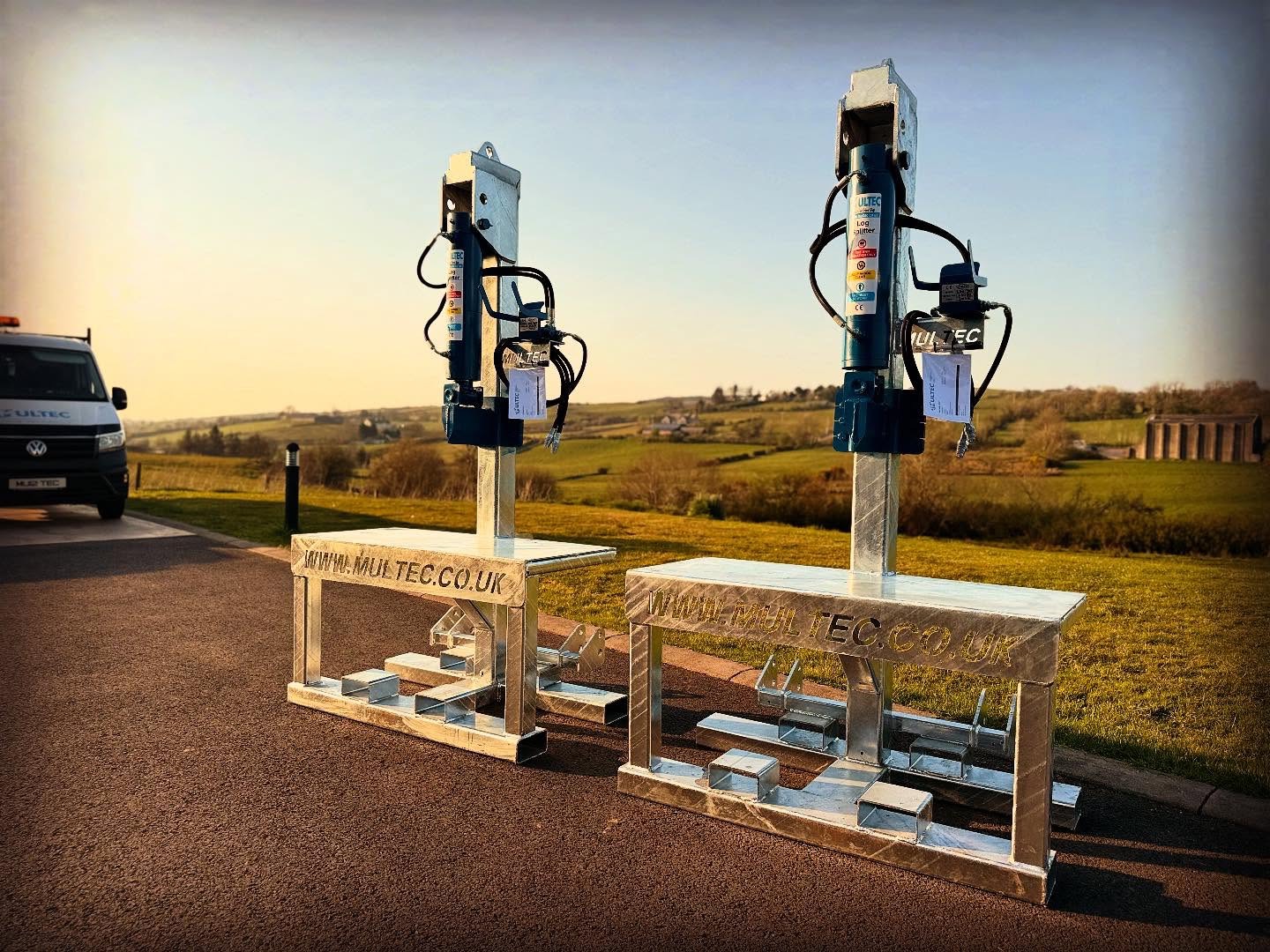

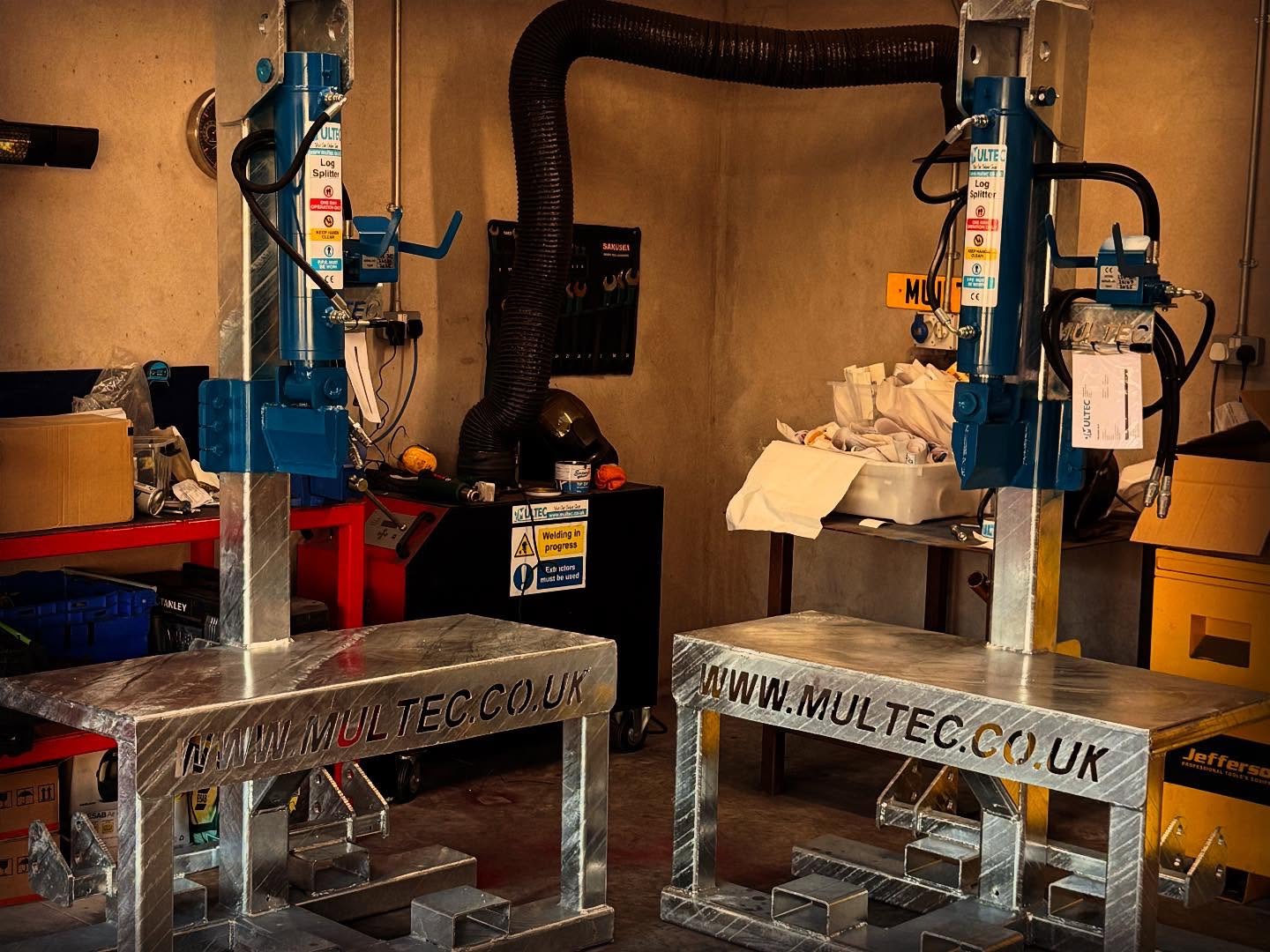

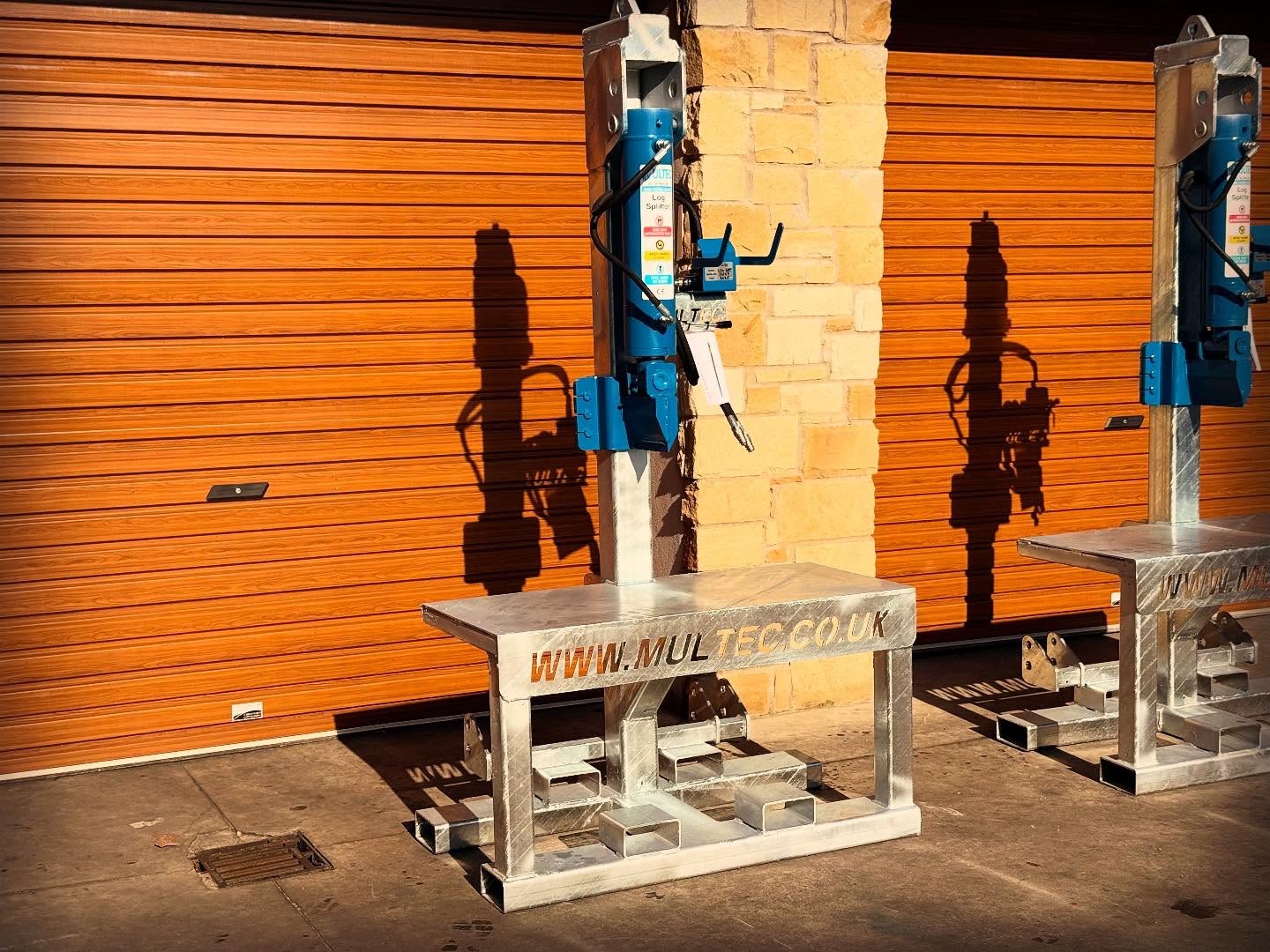

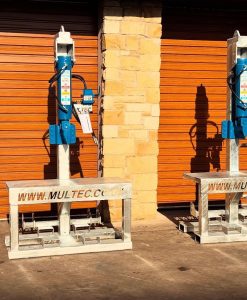

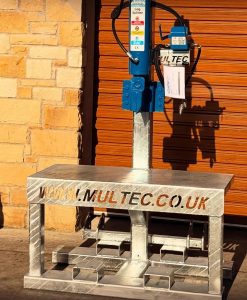

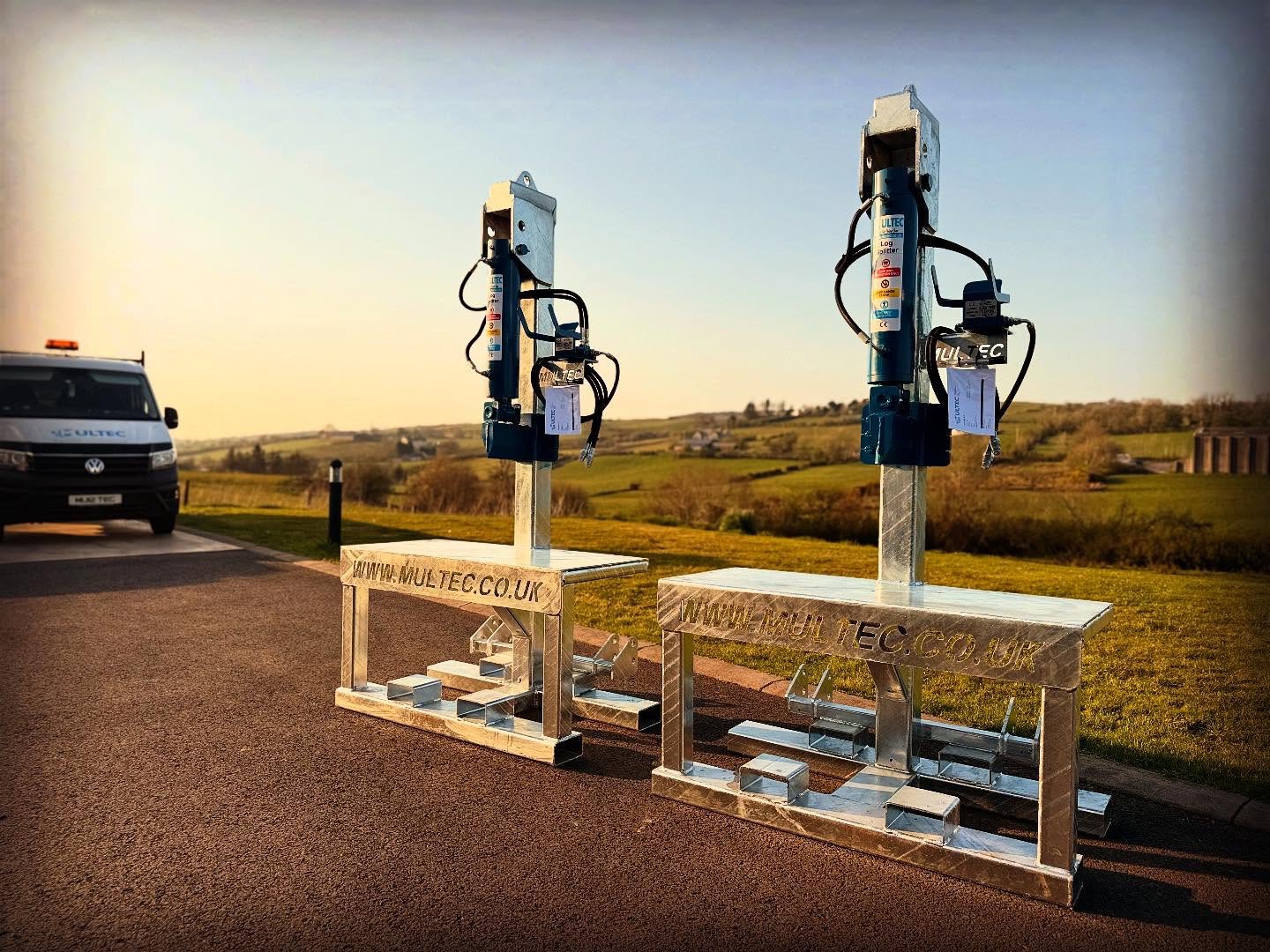

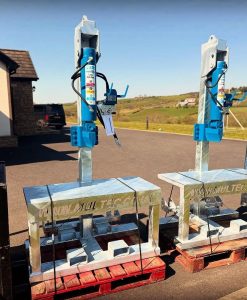

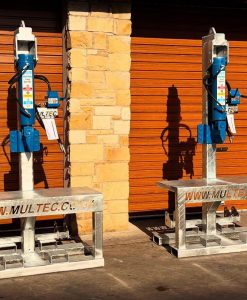

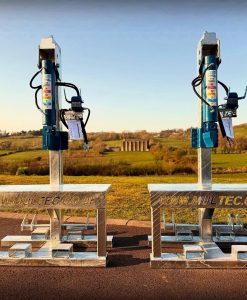

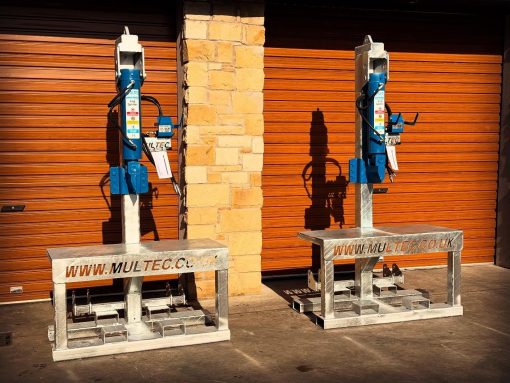

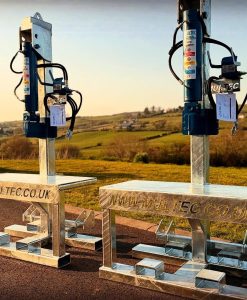

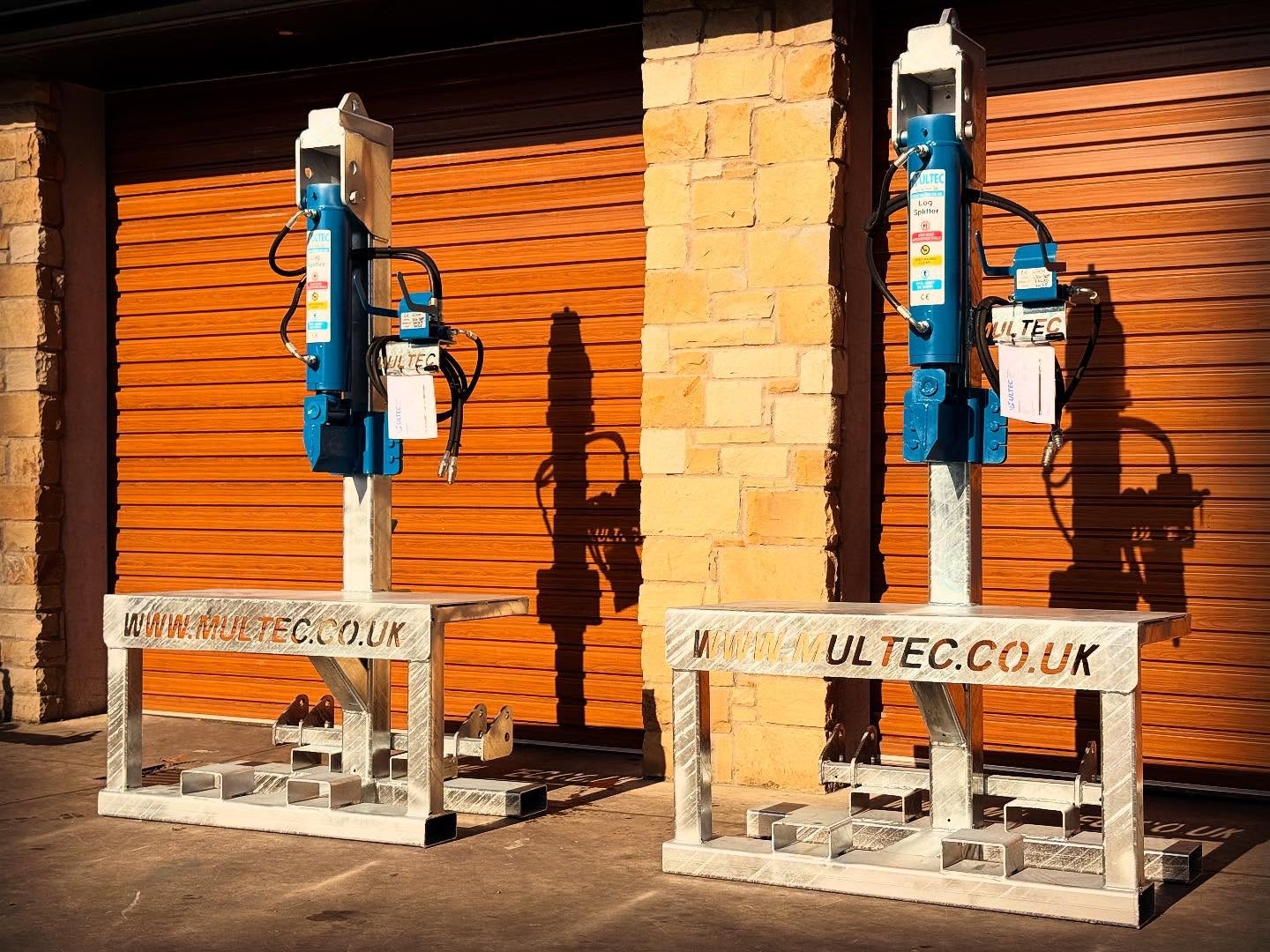

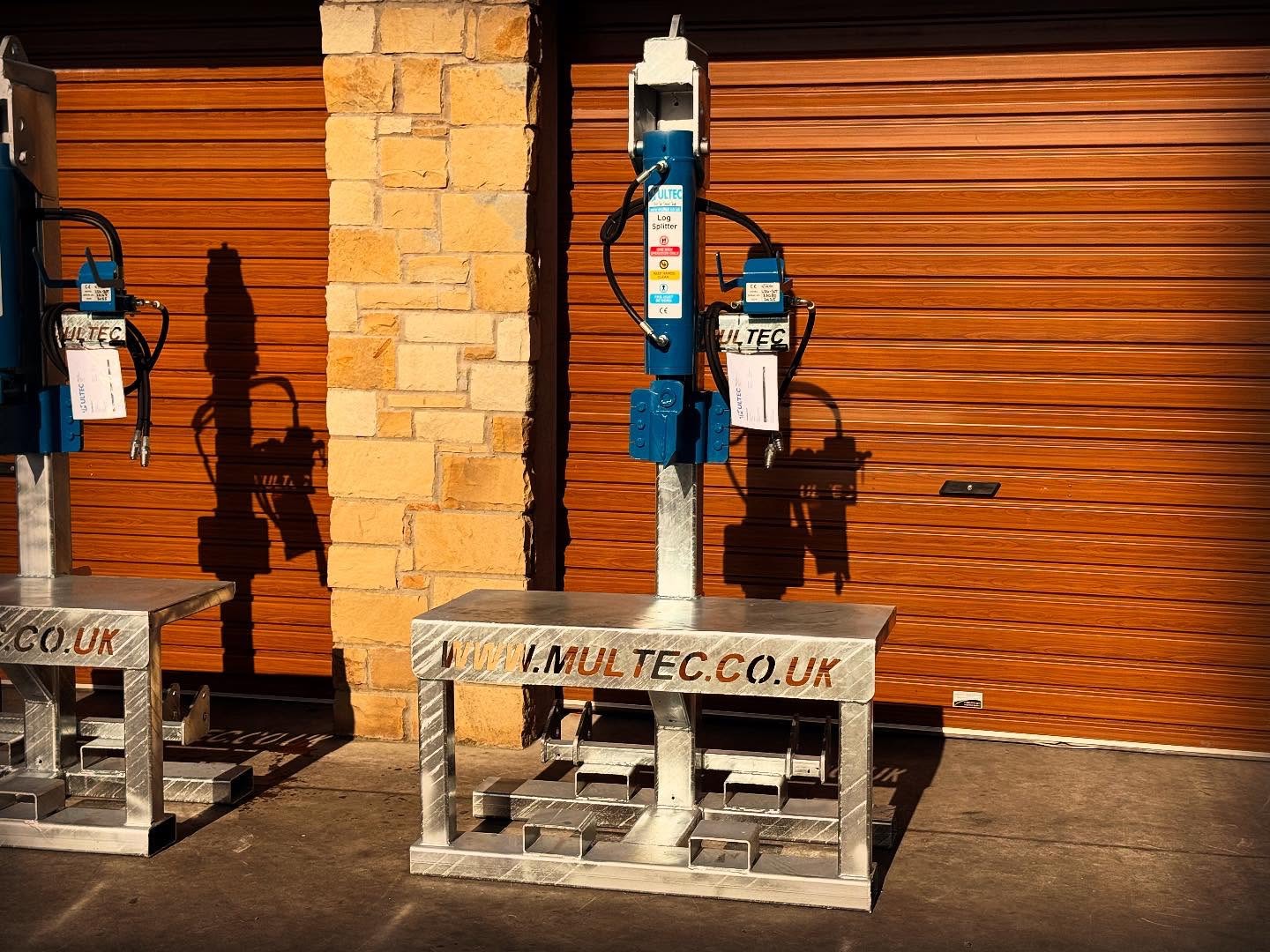

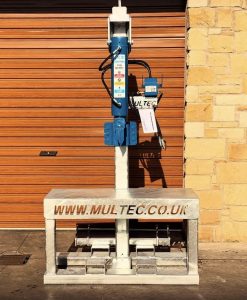

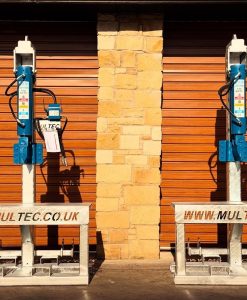

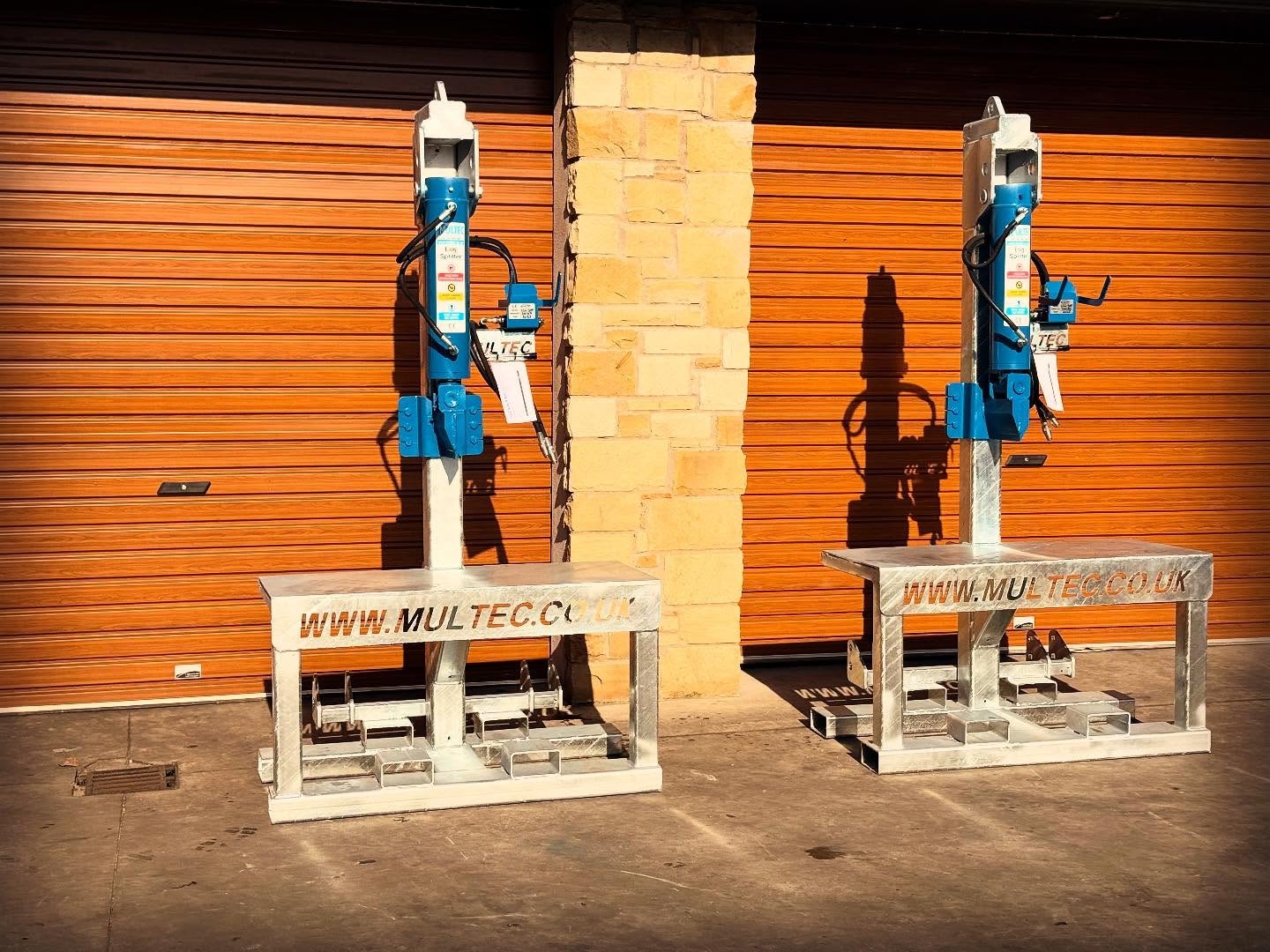

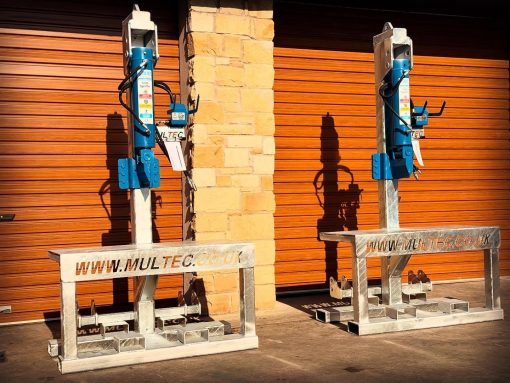

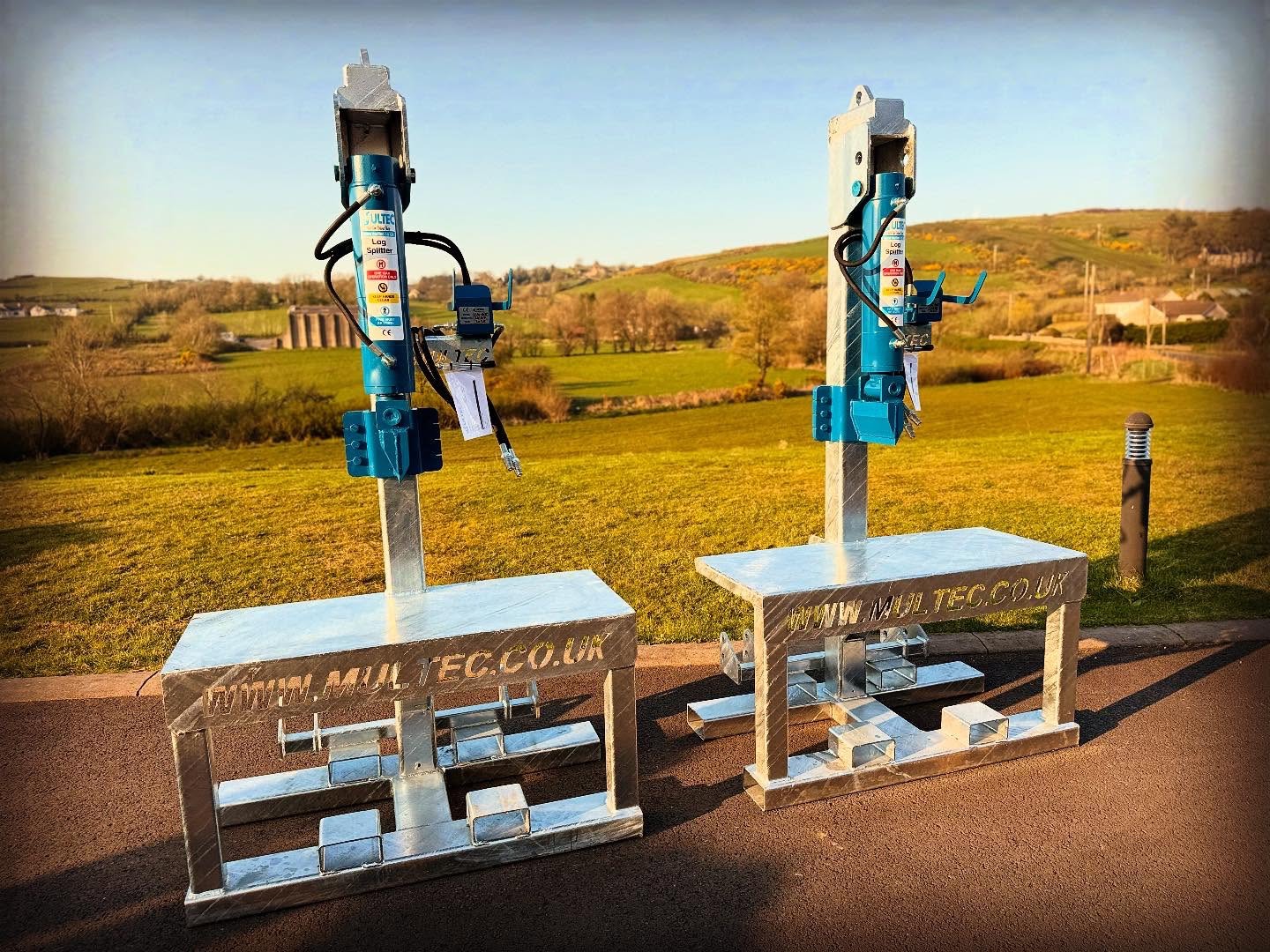

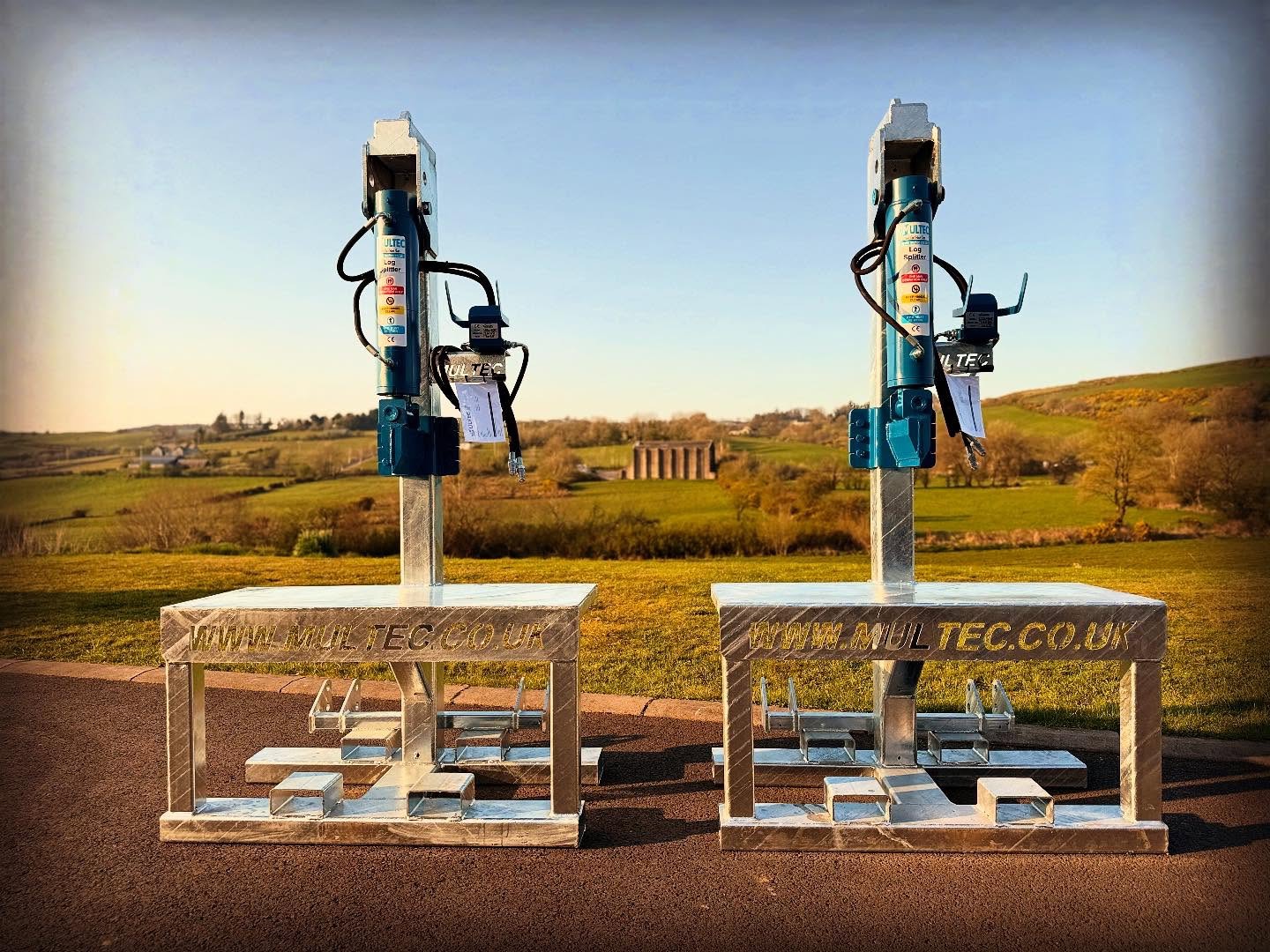

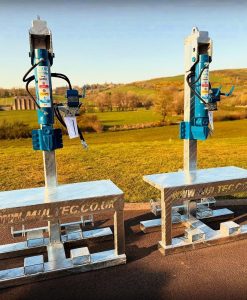

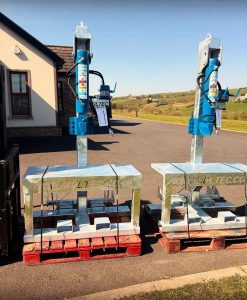

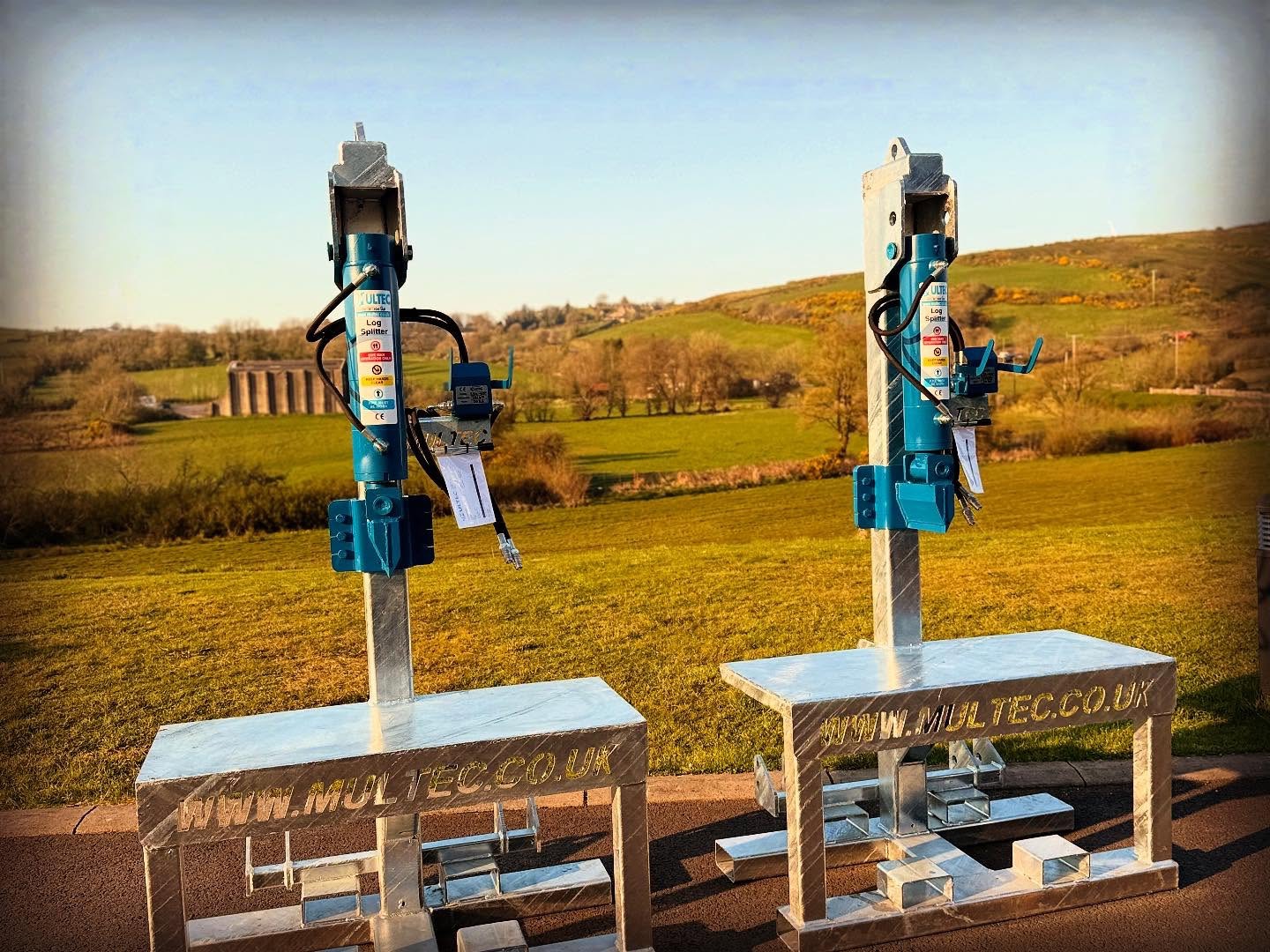

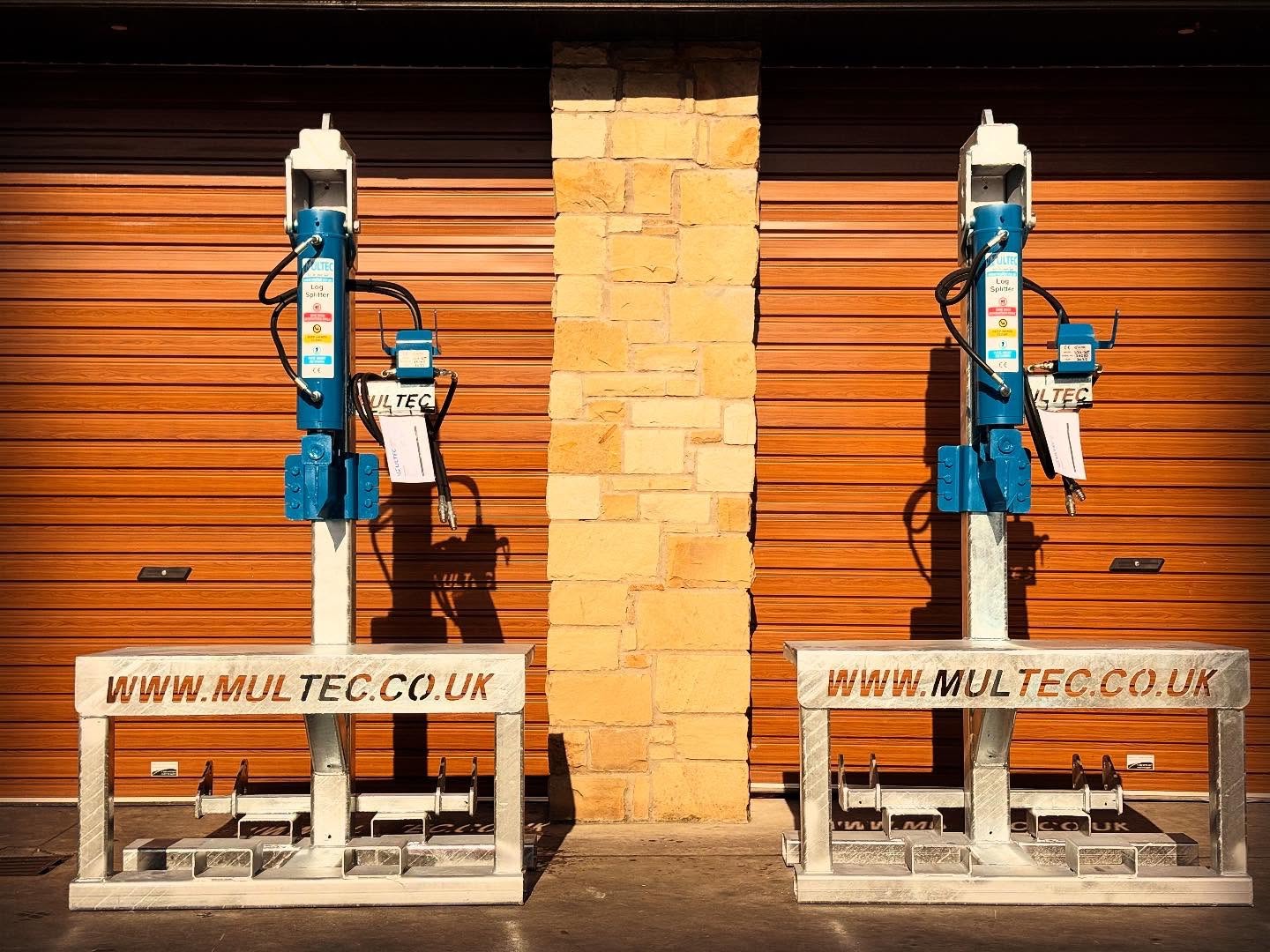

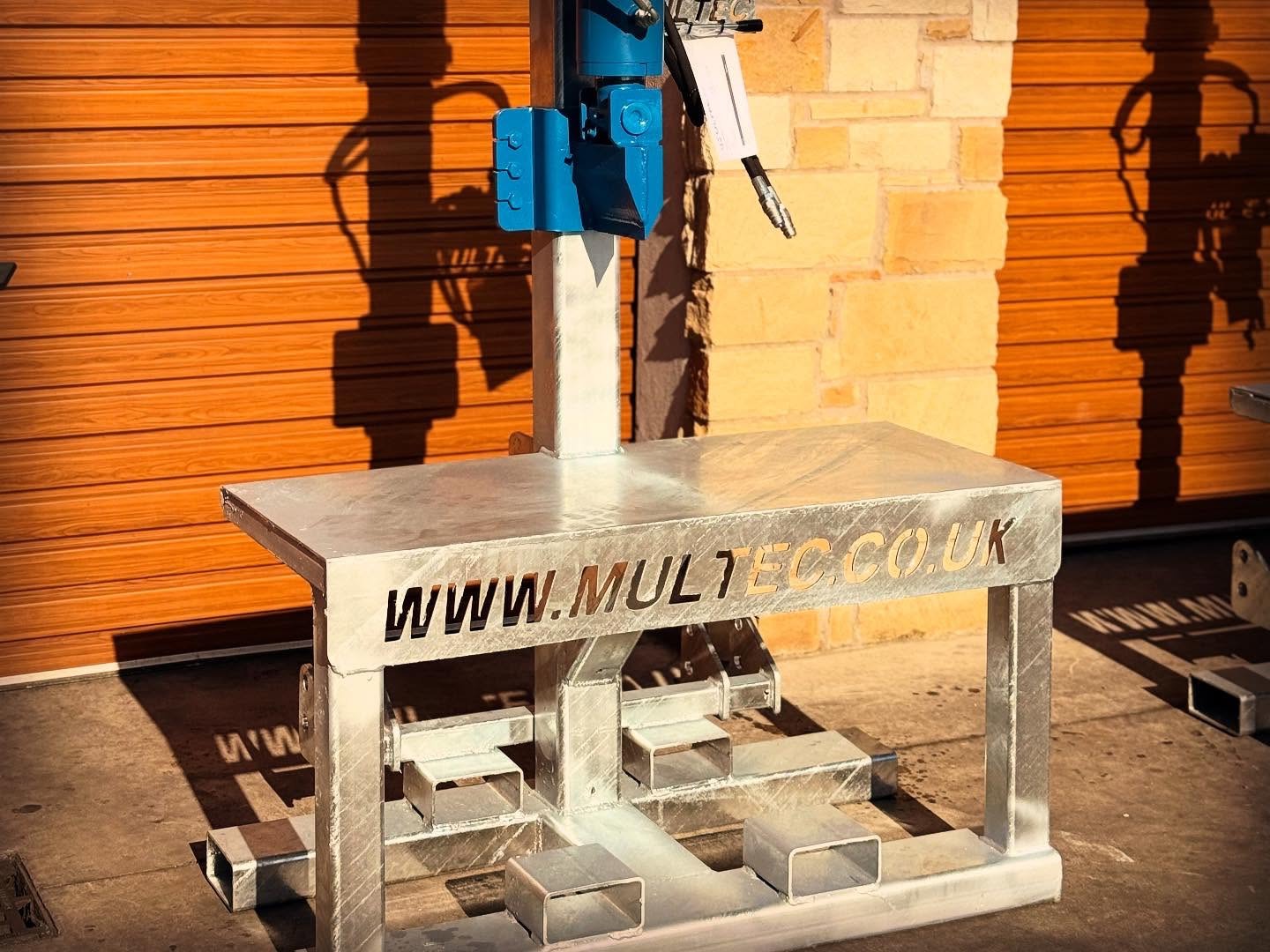

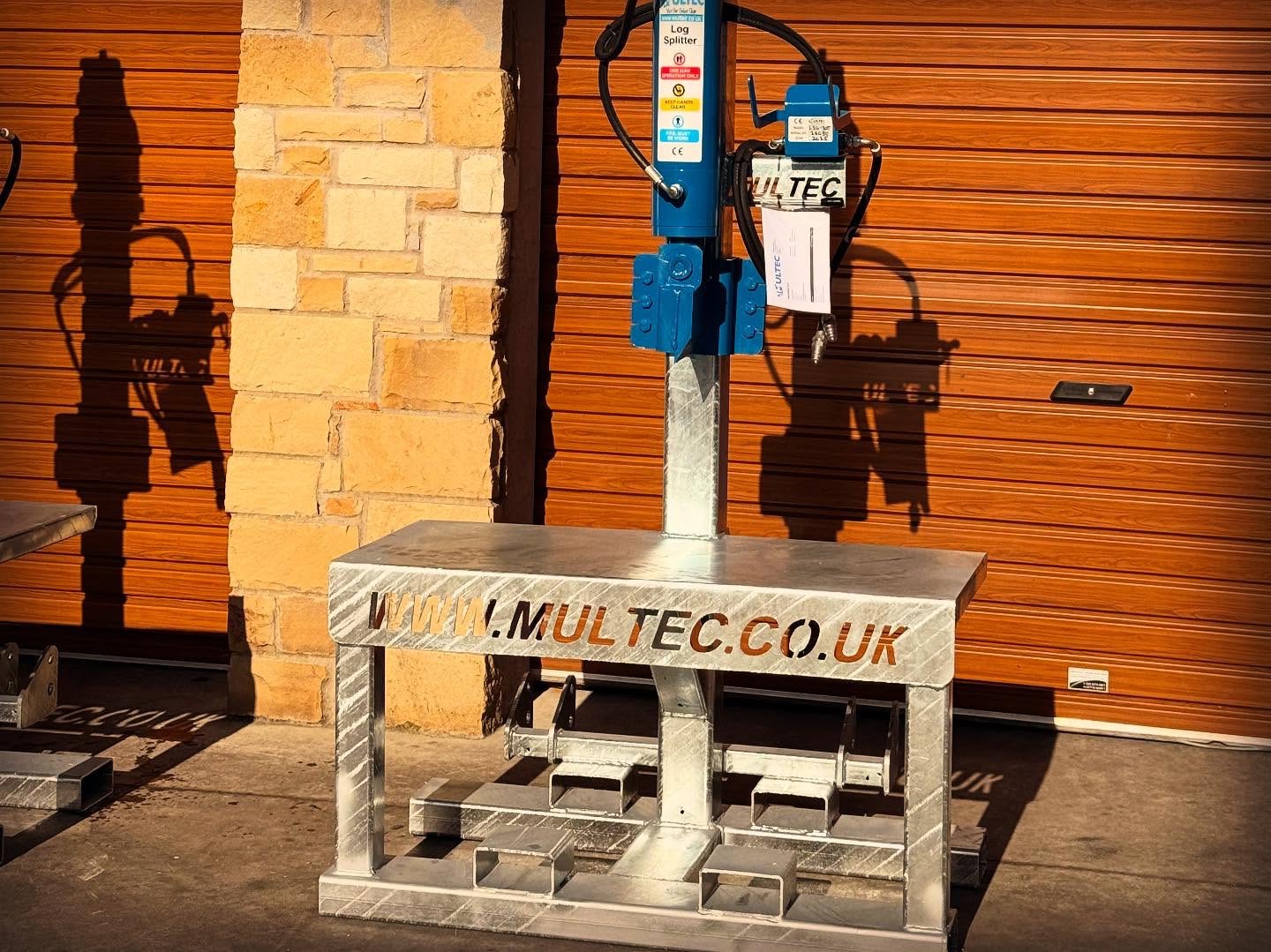

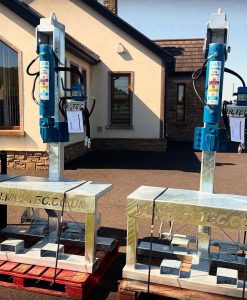

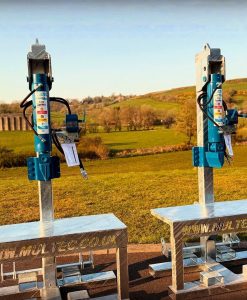

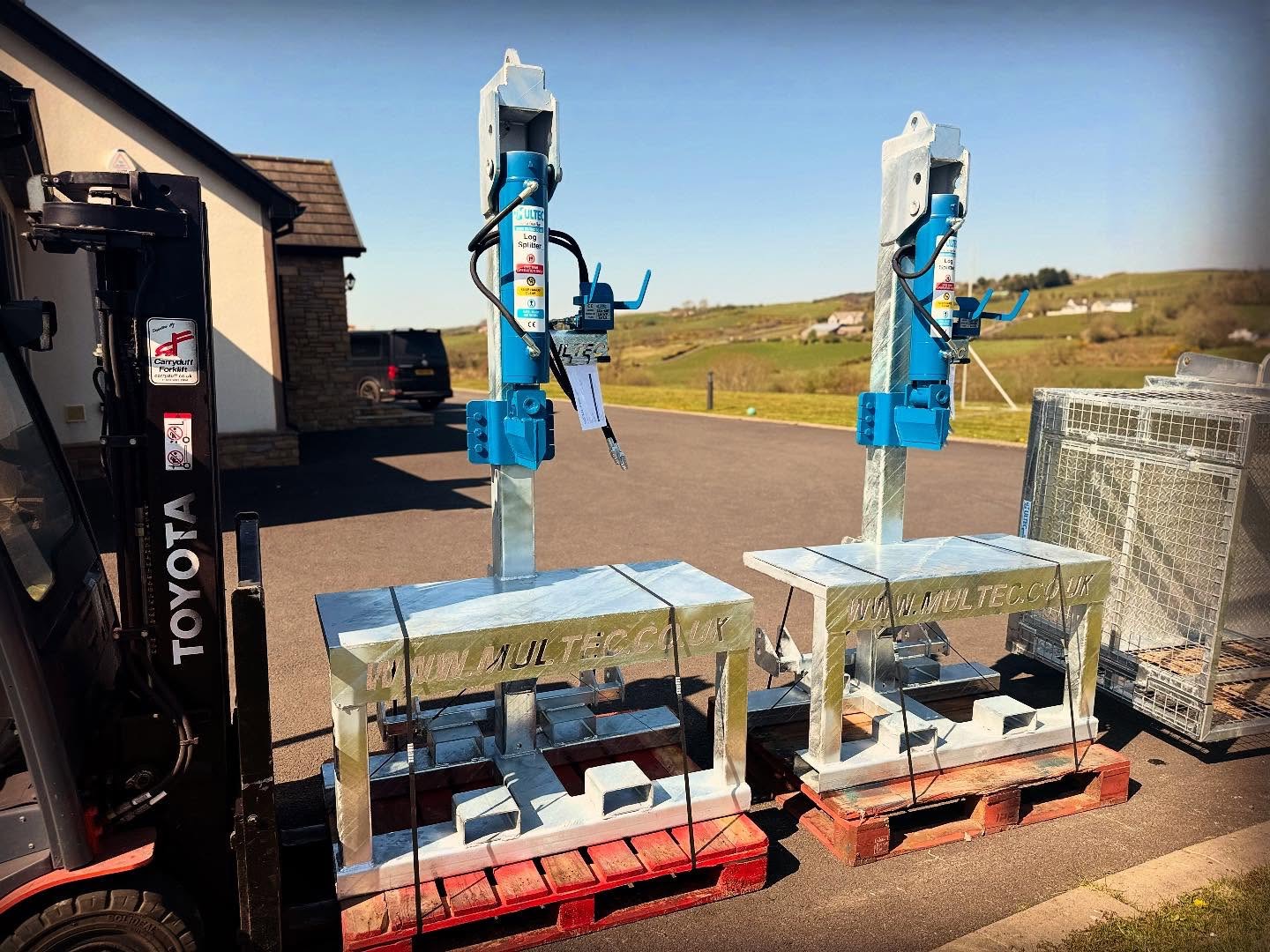

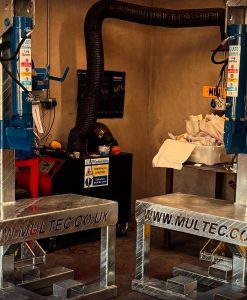

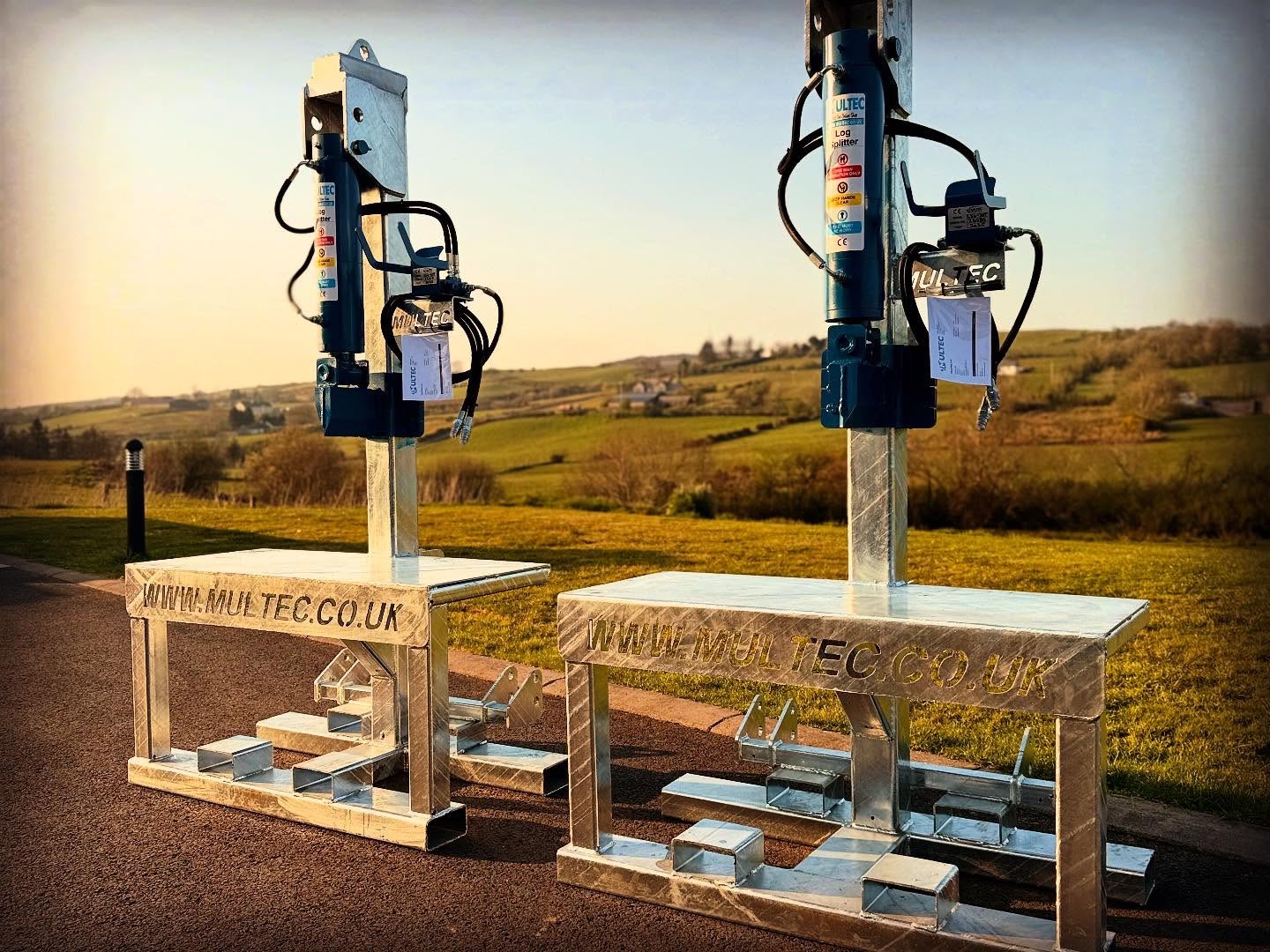

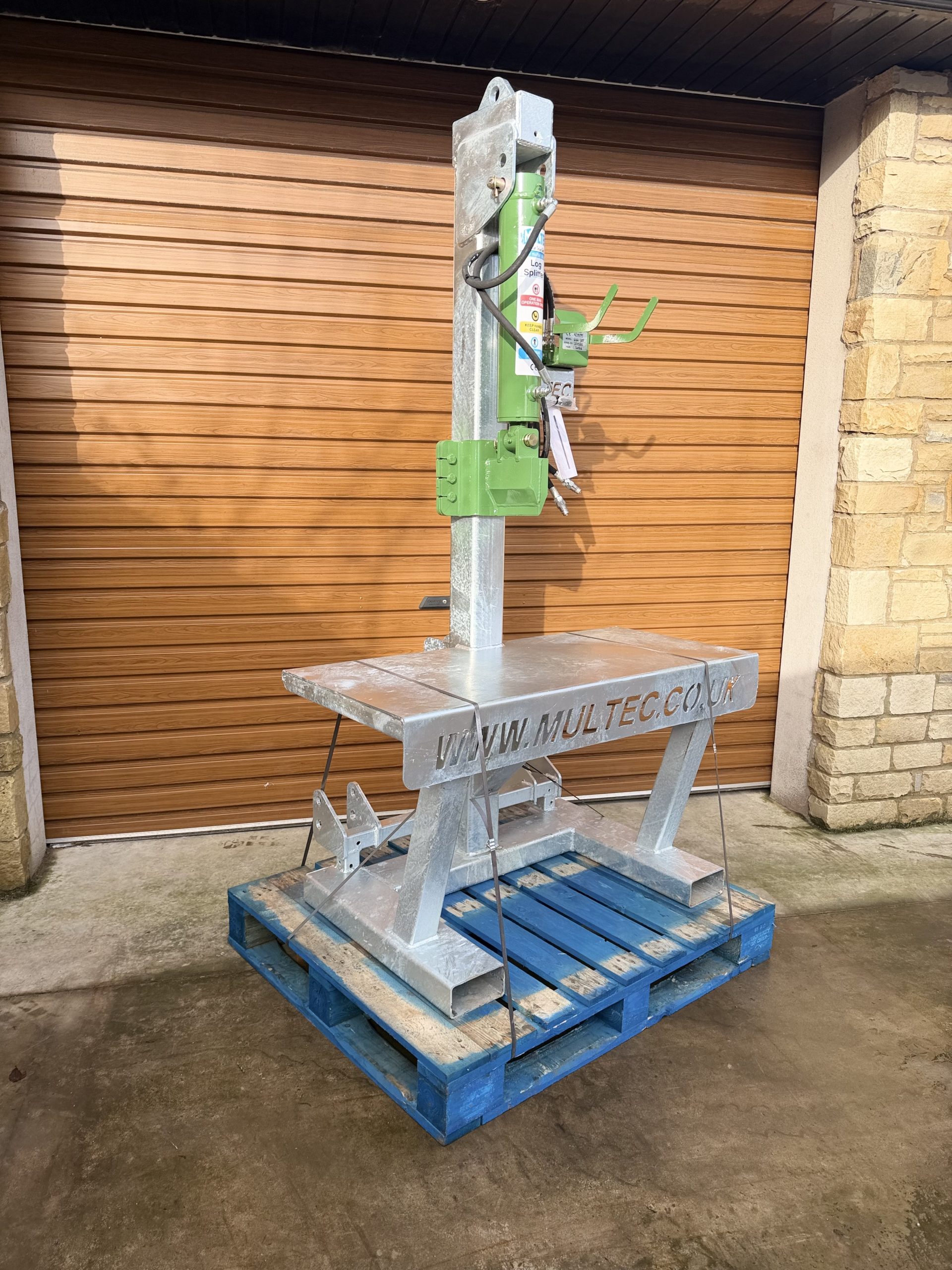

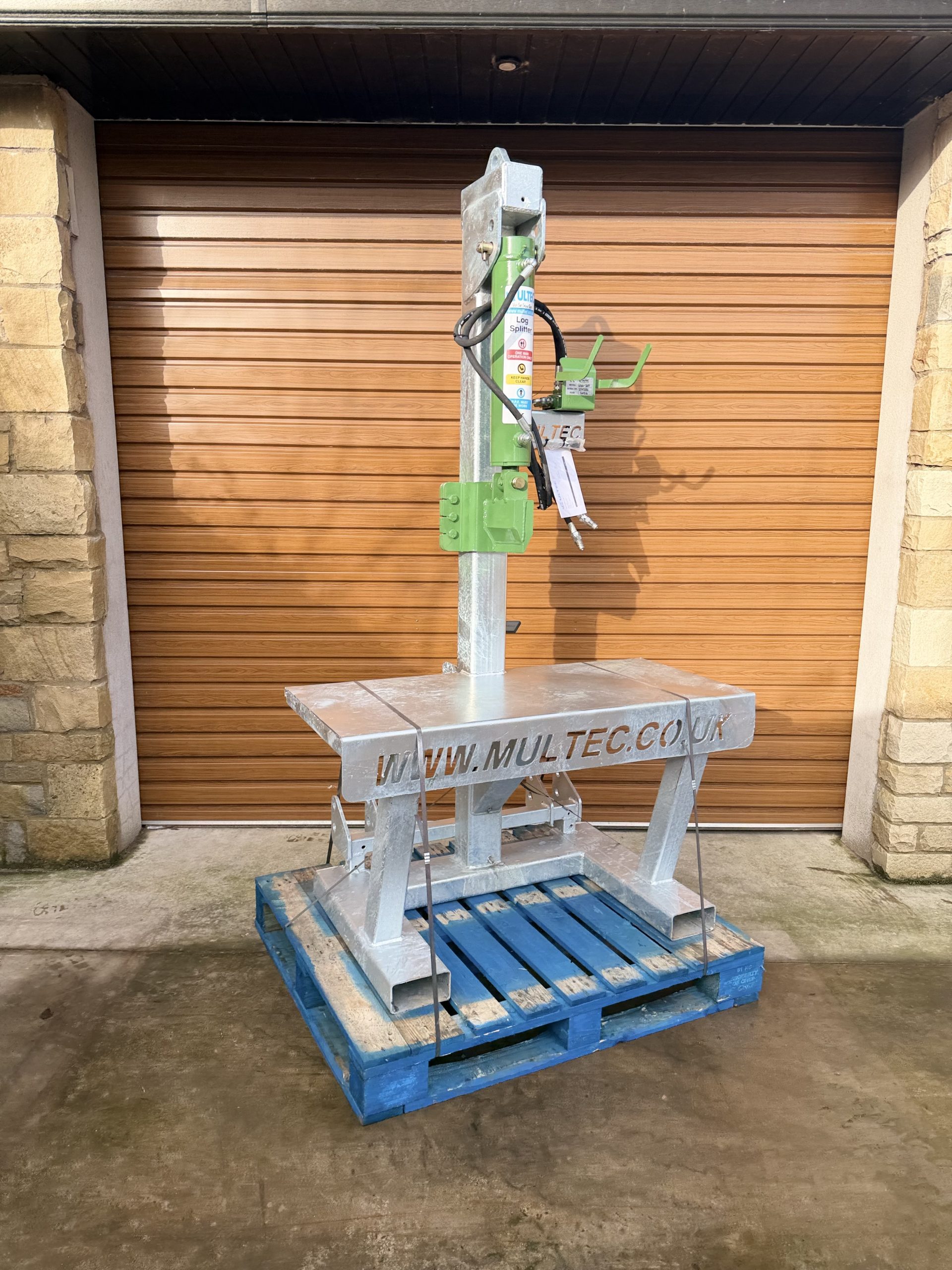

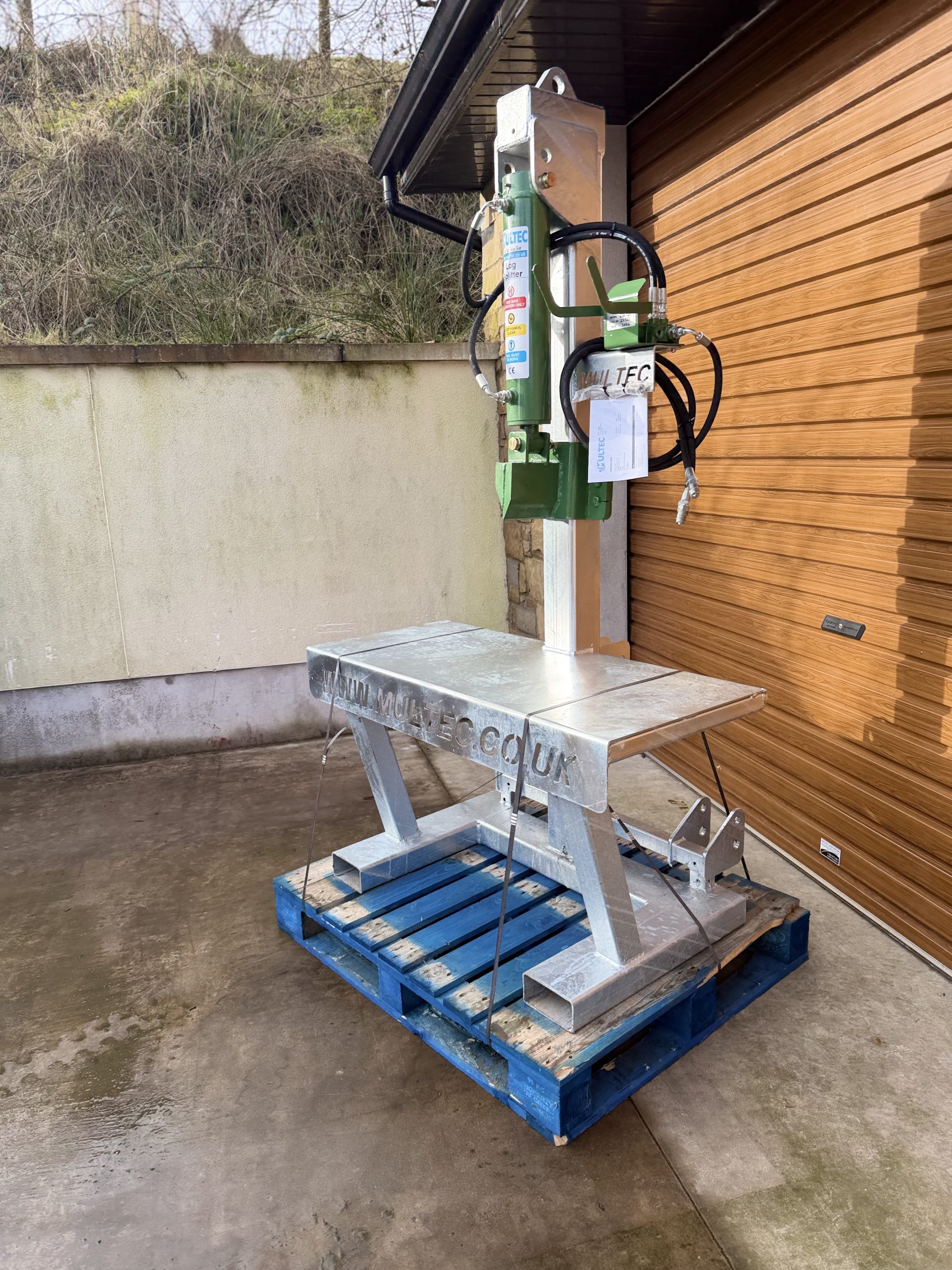

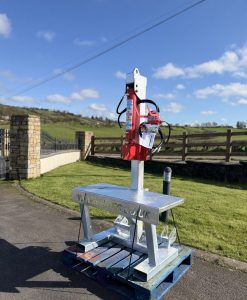

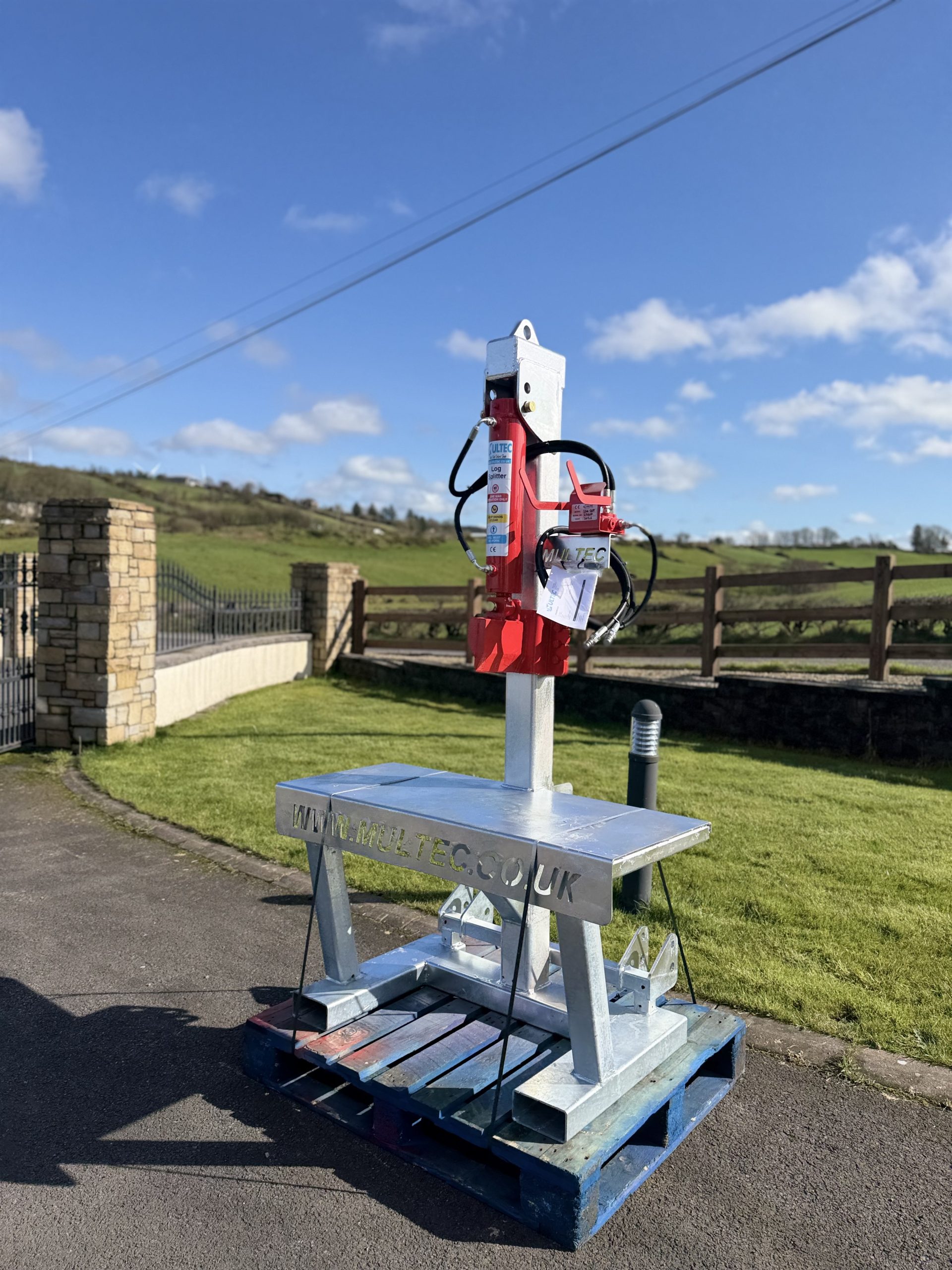

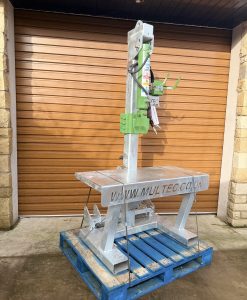

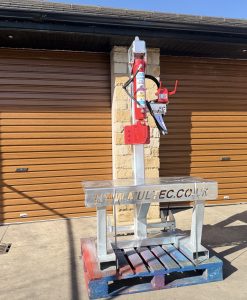

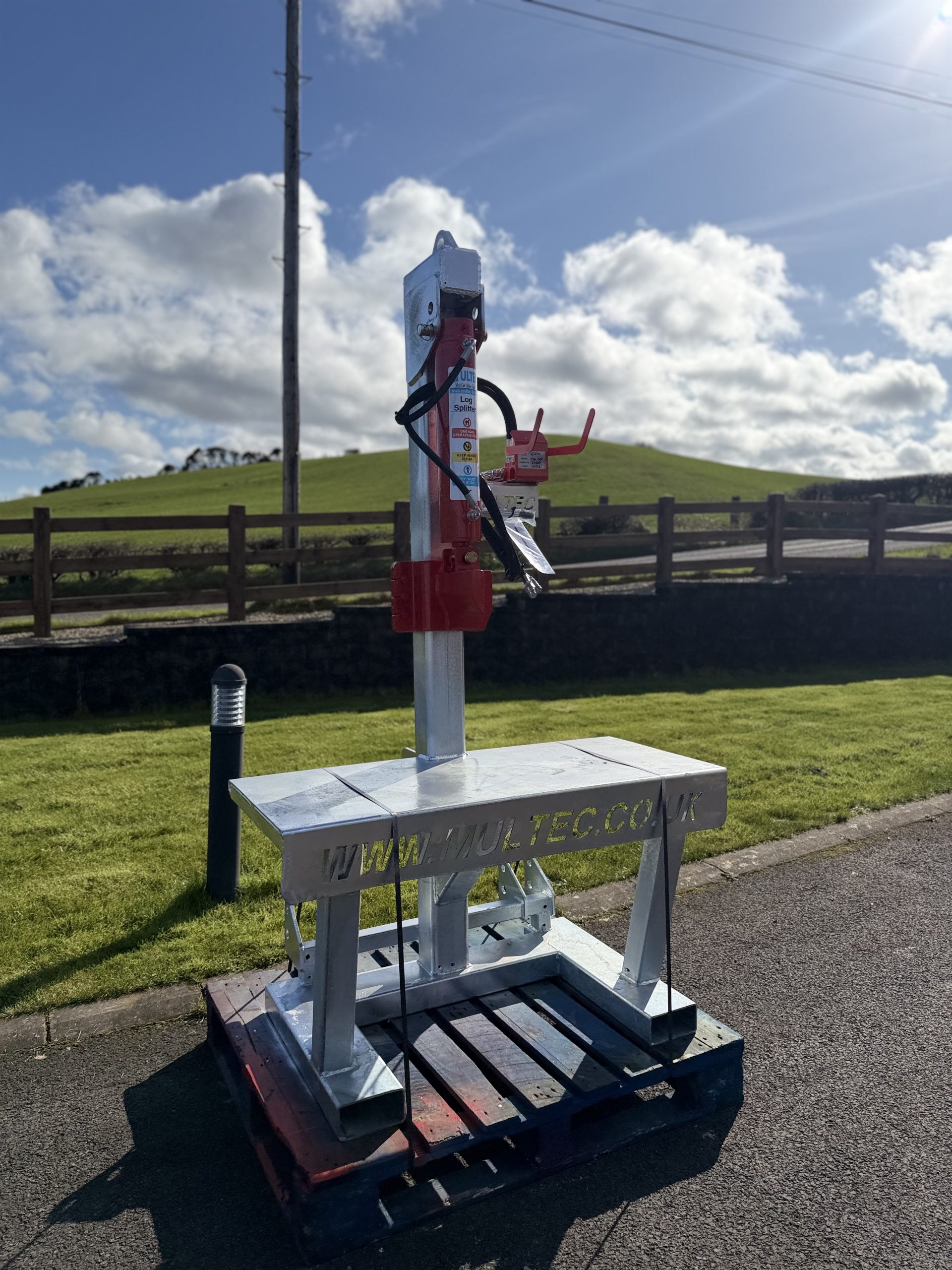

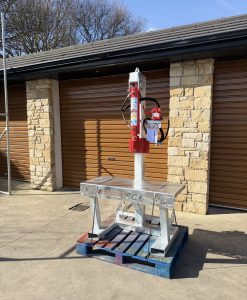

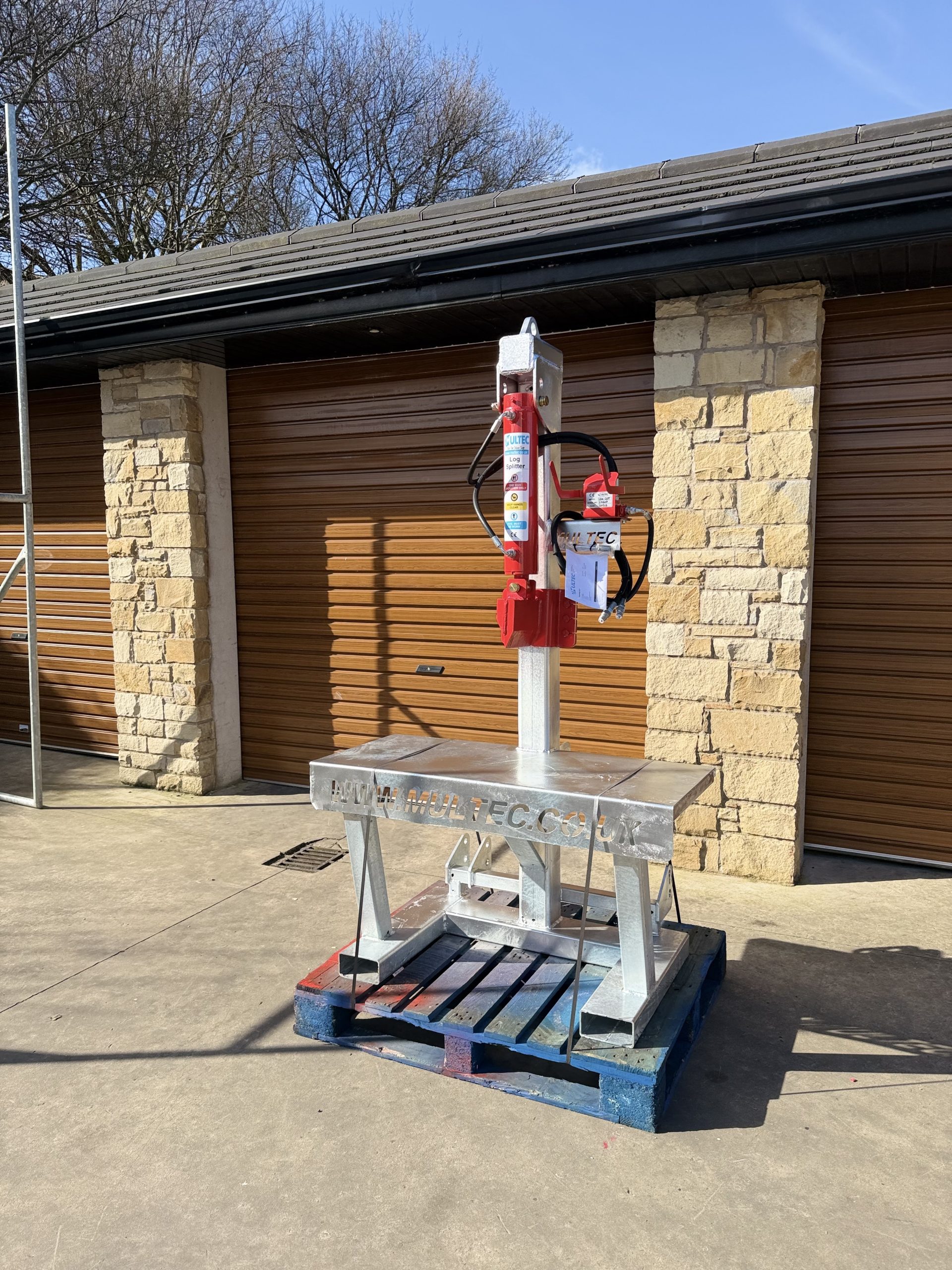

Multec LS4 Log Splitters. (Big 4Ft Table Model) GALVANISED

Supplied by: Multec Ltd

Manufacturer Code: M-LS4-GALV.

Benefits:

• Designed to be “One Of The Best” on the market!
• Multec Log Splitters are suitable for home or commercial use… Splitting all sizes of Logs.
• CE Marked when fitted with dual controls. (Two-handed Control only)
• 5no. x Different Ram Splitting Forces to choose from.
• Extra holes in the top gussets allows the ram to be raised up for an even bigger stroke.
• All Rams have a 400mm (16″) Stroke / Rod length for taller logs
• Tractor three point linkage (3PL) C/w both Cat 1 & Cat 2 Linkage holes.
• Free Standing with Large 160 x 80 box section H-frame base to suit Pallet Forks.
• GALVANISED (Hot Zinc Dipped for a lifetime of rust free)
• Please Note: The wider H-Frame base & Additional uprights on the front are fitted to the 20Ton & 30Ton frames only.



Specification: (M-LS4-GALV)

• LS4 means 4ft working platform / table. (4ft x 2ft)
• Heavy Duty.
• Waist Height table.

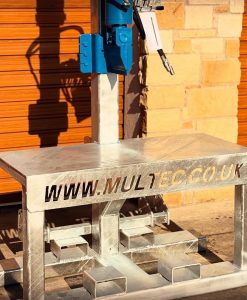

• 4ft x 2ft Heavily braced working platform / table.
• 100mm x 50mm x 6mm box section table skeleton & brace.
• Cat 1 & Cat 2 three point linkage holes.
• Heavy Gauge Mast (120mm x 120mm x 10mm box section.).
• Can be used off the ground on the tractor arms or on forks to increase working height.
• Ram cylinder is removable from the wedge. (Makes for easier repair if seal ever goes in the ram).
• Sliders are 15mm gauge and bolt together with 6no. x 16mm bolts.
• All Rams have a 400mm (16″) Stroke / Rod length for taller logs.
• Extra holes in the top gussets allows the ram to be raised for a bigger stroke.

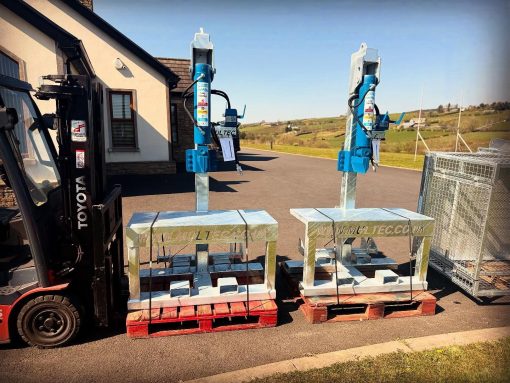

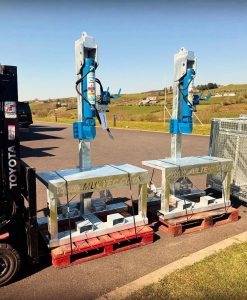

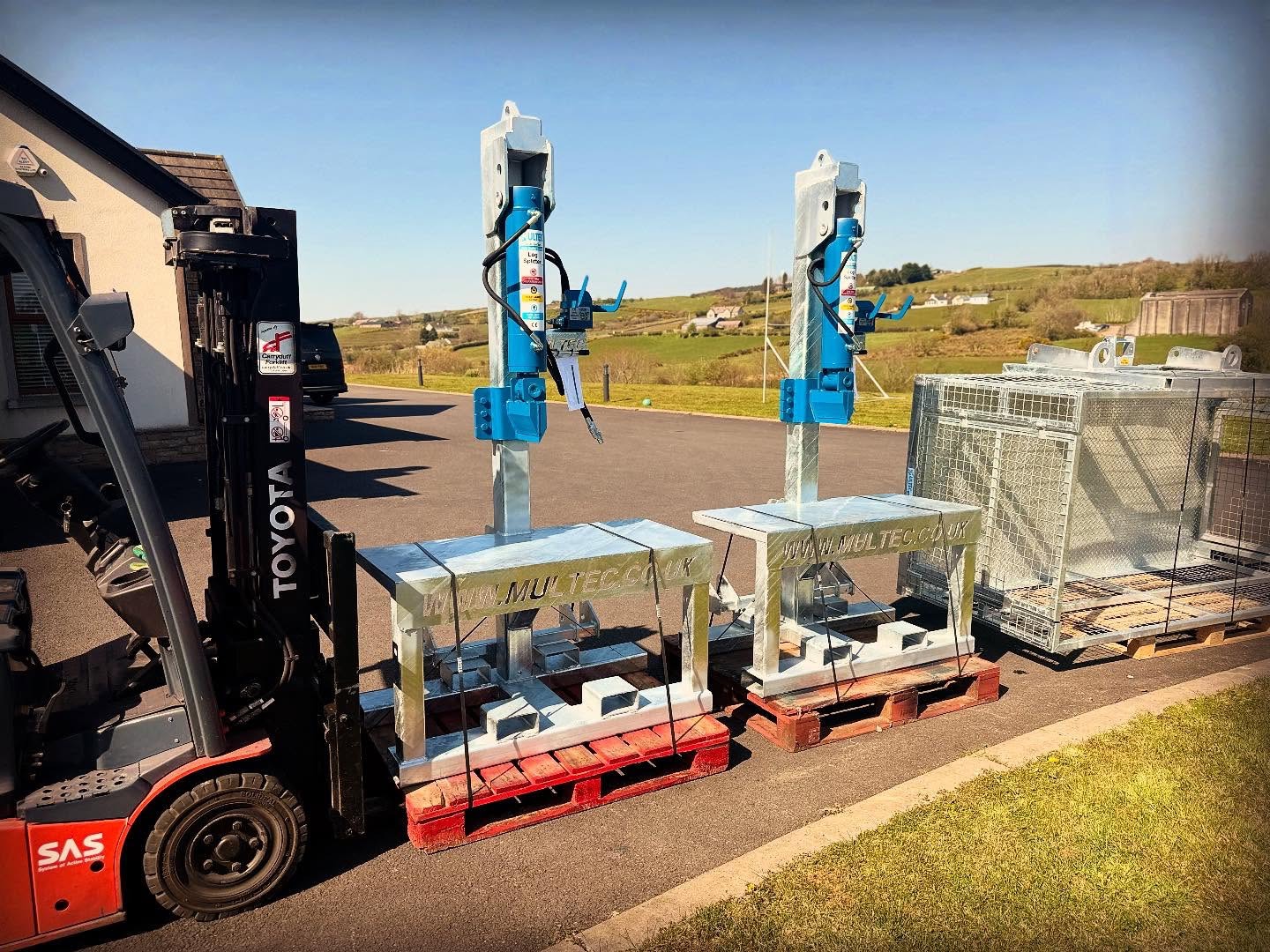

• Large H-Frame base (160 x 80 box) to suit forklifts, front loaders & telescopic handlers.
• Large H-Frame base also makes the Log Splitter free standing.
• Lifting hook welded on top of the Splitter. (Allows for another method of lifting and moving it safely).
• CE Marked when fitted with dual controls. (Two-handed Control only)
• Full warranty included.



Five Ram Splitting Forces to choose from: (All Rams have a 400mm (16″) Stroke / Rod length for taller logs)

• 10Ton Ram
• 14Ton Ram
• 16Ton Ram
• 20Ton Ram
• 30Ton Ram

Video of the standard Multec 14Ton LS2 Log Splitter in action:



Order & Delivery information (Please Read):

After placing an order, you will receive a direct email within 48 hours with your “Order Dates” which will be as follows:

• Payment Date (Date of cleared funds)
• Dispatch Date (10 to 15 workings days from cleared funds)
• Arrival Date (2 working days from dispatch)

If the arrival date does not suit, Please contact us as soon as possible so we can re-arrange arrival on a preferred date.

Please Note: You will need to have access for the delivery lorry, arrange a way of unloading & sign for arrival.
