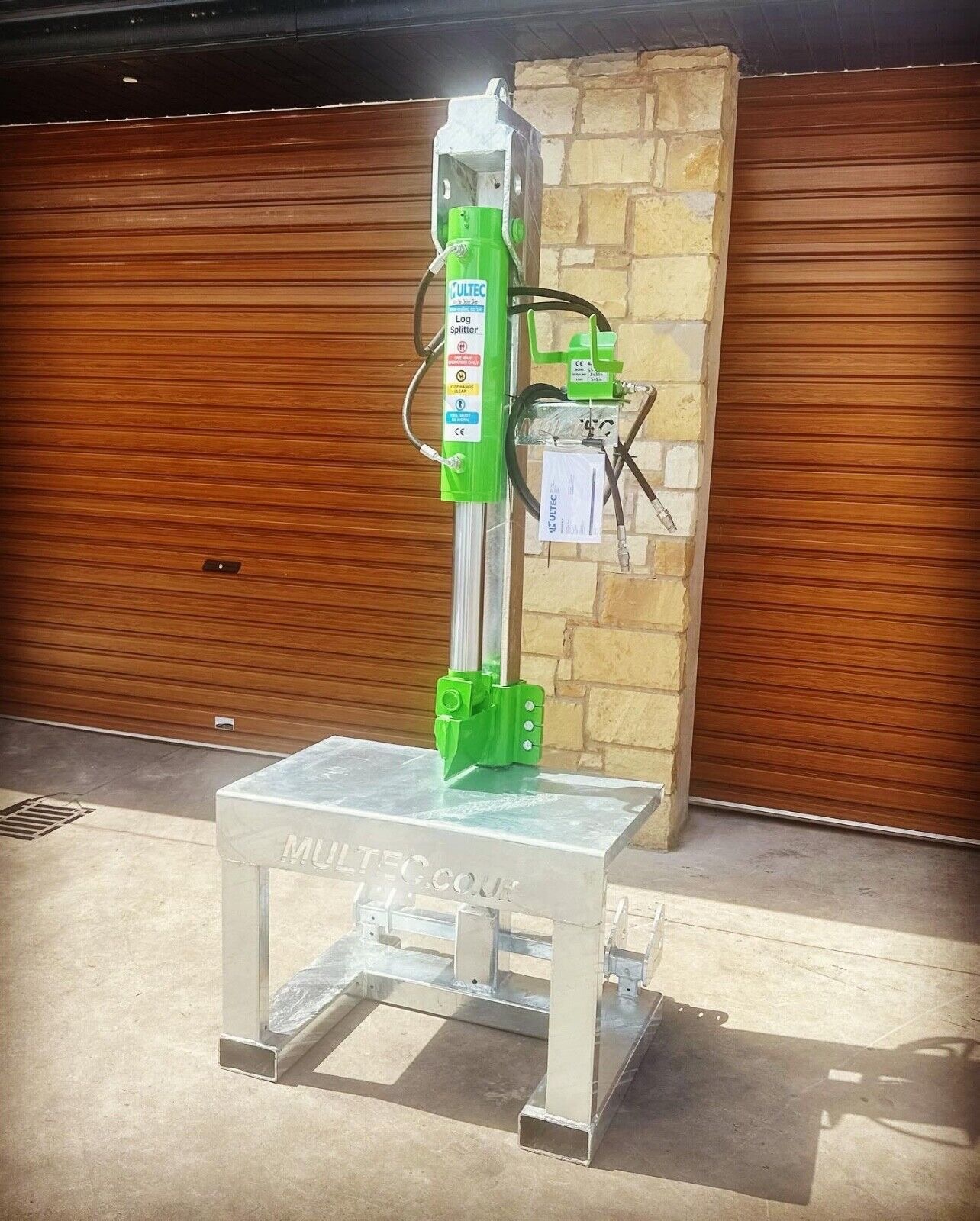

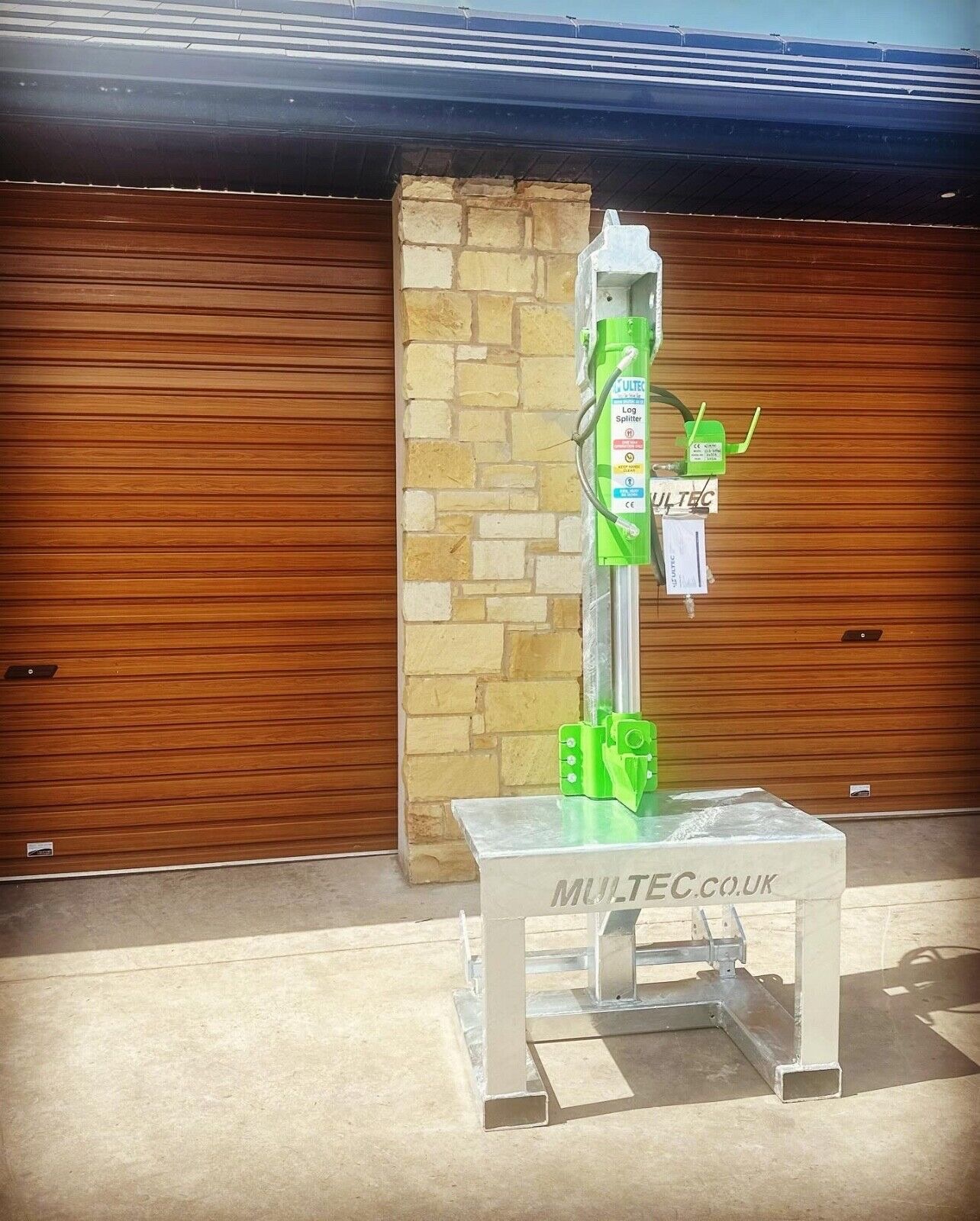

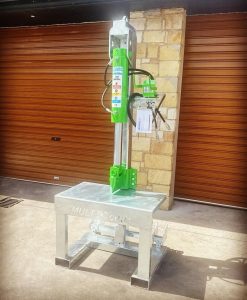

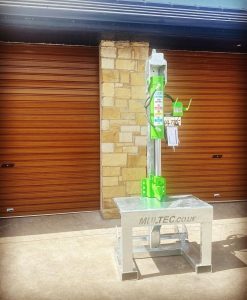

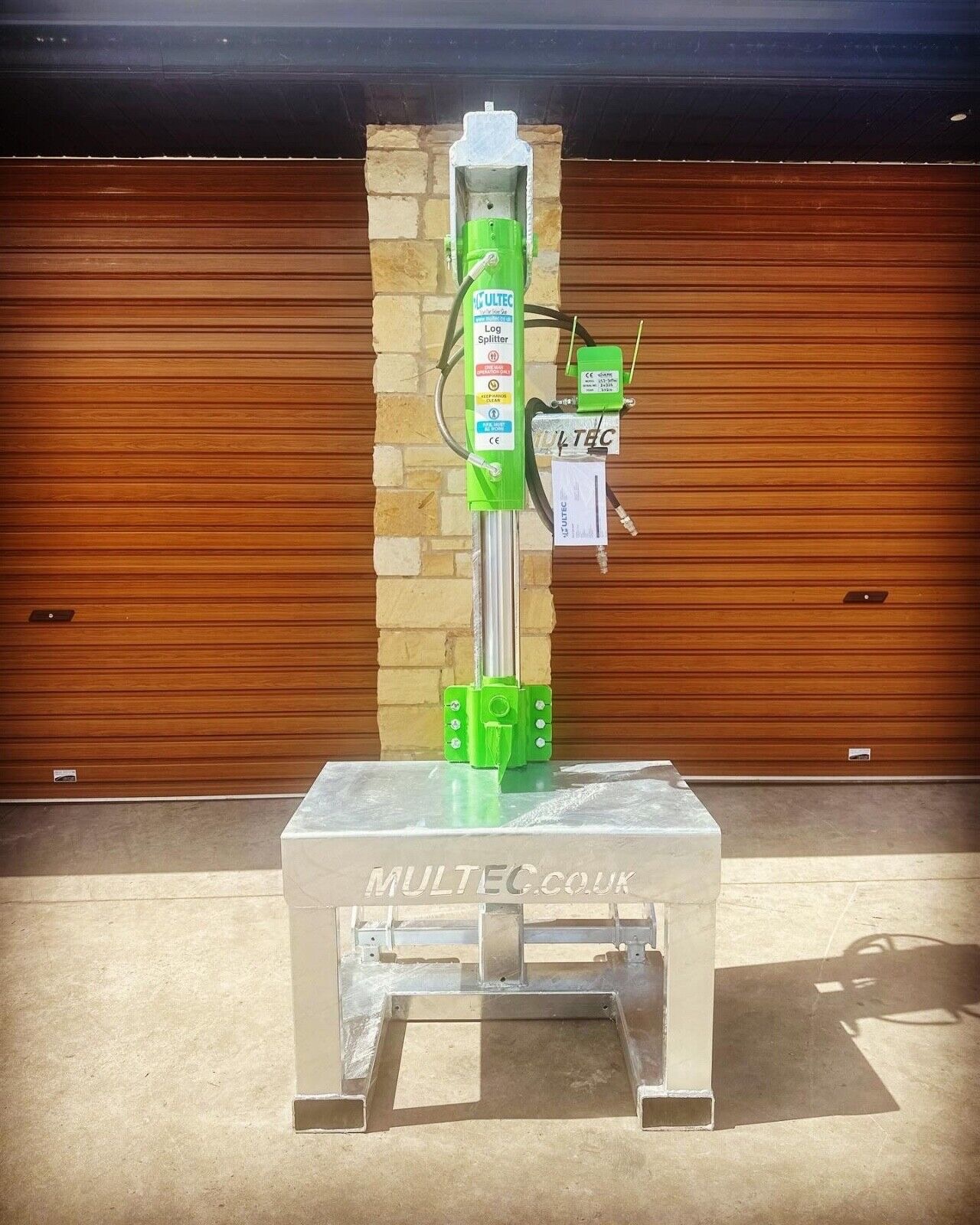

Multec “30TON” LS3 Log Splitter GALVANISED

Description…

GALVANISED Multec “30TON”  LS3 Log Splitter. (Big 3FT Table Model)

Supplied by: Multec Ltd

Manufacturer Code: LS3-BT-30T-GAL

Benefits:

• 30 TONNES of Splitting Force (Unlike anything else on the market)
• Designed to be “One Of The Best” on the market!
• Multec Log Splitters are suitable for home or commercial use… Splitting all sizes of Logs.
• CE Marked when fitted with dual controls. (Two-handed Control only).
• Extra holes in the top gussets allows the ram to be raised up for an even bigger stroke.
• 30 Ton Ram has a 400mm (16″) Stroke / Rod length for taller logs.
• Tractor three point linkage (3PL) C/w both Cat 1 & Cat 2 Linkage holes.
• Free Standing with Large 160 x 80 box section H-frame base to suit Pallet Forks.

Specification: (LS3-BT-30T):

• LS3 means 3ft working platform / table. (3ft x 2ft).
• Waist Height Table.
• Extra Heavy Duty Frame.
• Extra HD Table Bracing (100mm x 100mm x 8mm box section) in comparison to our other LS1 & LS2 Log Splitters.
• 3ft x 2ft Heavily braced working platform / table.
• 100mm x 50mm x 6mm box section table skeleton & brace.
• Cat 1 & Cat 2 three point linkage holes.
• Heavy Gauge Mast (120mm x 120mm x 10mm box section.).
• Can be used off the ground on the tractor arms or on forks to increase working height.
• Ram cylinder is removable from the wedge. (Makes for easier repair if seal ever goes in the ram).
• Sliders are 15mm gauge and bolt together with 6no. x 16mm bolts.
• 30 Ton Ram has a 400mm (16″) Stroke / Rod length for taller logs.
• Extra holes in the top gussets allows the ram to be raised for a bigger stroke.
• Large H-Frame base (160 x 80 box) to suit forklifts, front loaders & telescopic handlers.
• Large H-Frame base also makes the Log Splitter free standing.
• Lifting hook welded on top of the Splitter. (Allows for another method of lifting and moving it safely).
• CE Marked when fitted with dual controls. (Two-handed Control only)
• Full warranty included.

30TON Ram Specification:

• Bore: 125mm (145mm outside diameter)
• Rod: 80mm (The rod diameter @ 80mm is that big it is the same bore as a 10Ton ram)
• Stroke: 400mm
• Pin Hole: 40mm
• Eye Length: 100mm
• Port Size: 1/2″ BSP
• Push Power: 28.9T / 28900KG at 3000 PSI / 210 Bar

Order & Delivery information (Please Read):

After placing an order, you will receive a direct email within 48 hours with your “Order Dates” which will be as follows:

• Payment Date (Date of cleared funds)
• Dispatch Date (5 to 7 working days)
• Arrival Date (2 working days from dispatch)

If the arrival date does not suit, Please contact us as soon as possible so we can re-arrange arrival on a preferred date.

 You will need to have access for the delivery lorry, arrange a way of unloading & sign for arrival.
